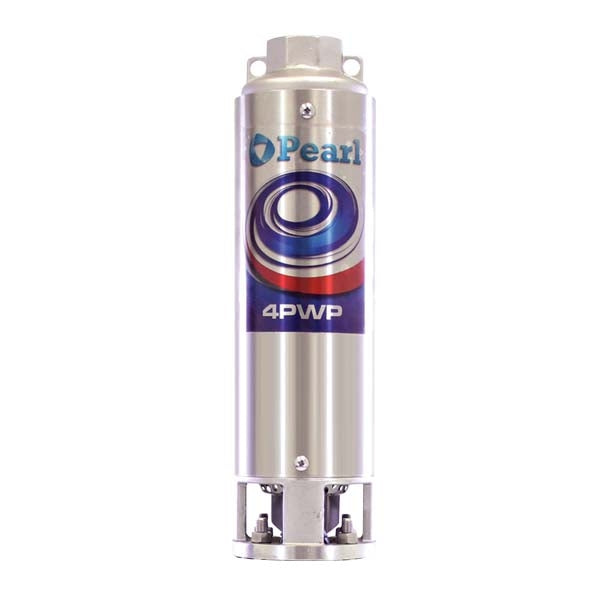

Pearl 4PWP-10G07 Submersible Pump End ( ONLY ) - ( 3/4 HP Rated ) - 10 GPM
$363.25
In stock
SKU
4PWP-10G07
Pearl 4PWP-10G07 Submersible Pump End ( ONLY ) - ( 3/4 HP Rated ) - 10 GPM is available to buy in increments of 1
• Manufacturer: Pearl
• Series: 4PWP
• Product Type: 4" Submersible Pump - Pump End ( ONLY )
• Pump Model: 4PWP-10G07
• Pump Motor Rating: Use with 3/4 HP Motor ( Not Included )
• Pump GPM Rated: 10 GPM
• Pump Stages: 10 Stages
• Pump TDH Rated: 245 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
Pearl 4PWP-10G07 Submersible Pump End ( ONLY ) - 3/4 HP Rated - 10 GPM
Multipurpose applications in the residential, agriculture and industrial markets.
Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains
• Irrigation and water transfer
Standard Features of Pearl 4" Submersible Pumps Ends
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings
• Stainless steel check valves
Total Dynamic Head (TDH) | 200 to 225 (TDH), 225 to 250 (TDH), 250 to 275 (TDH) |
---|---|
Impeller Type | Standard Impellers |
Pump Diameter | 4-Inch |
Horsepower Rated | 3/4 hp |
GPM Range | 6 to 10 gpm |
Brand | Pearl |
Featured Product | No |
