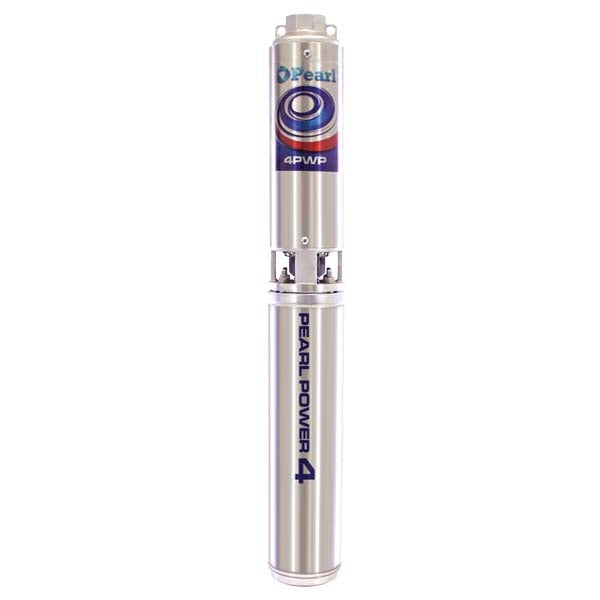

Pearl 4PWP13G-15C162P Submersible Pump - 13 GPM - 1-1/2 HP - 230 Volts ( 2 Wires + Ground ) - SS
$825.77
In stock
SKU
4PWP13G-15C162P
Pearl 4PWP13G-15C162P Submersible Pump - 13 GPM - 1-1/2 HP - 230 Volts ( 2 Wires + Ground ) - SS is available to buy in increments of 1
• Manufacturer: Pearl
• Series: 4PWP
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Pump Model: 4PWP13G
• Motor Model: 15C162P
• Motor Horsepower: 1-1/2 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 2-Wire Motor
• Motor Lead: 3-Wires ( L1 / L2 / Ground )
• Pump GPM Rated: 13 GPM
• Pump Stages: 12 Stages
• Pump TDH Rated: 300 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
PEARL 4PWP13 Series - 13 GPM - 4" Submersible Pump - 1-1/2 HP - 230 Volts ( 2 Wires + Ground )
Multipurpose applications in the residential, agriculture and industrial markets.
Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains, etc
• Irrigation and water transfer
Standard Features of Pearl 4" Submersible Pumps
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings

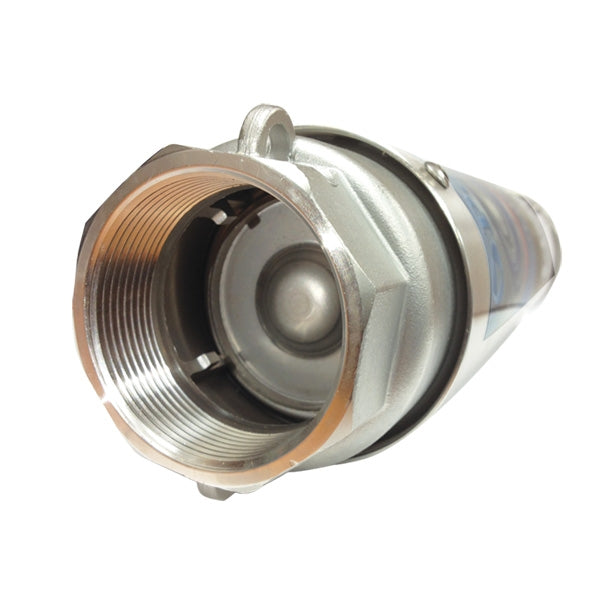

• Stainless steel check valves

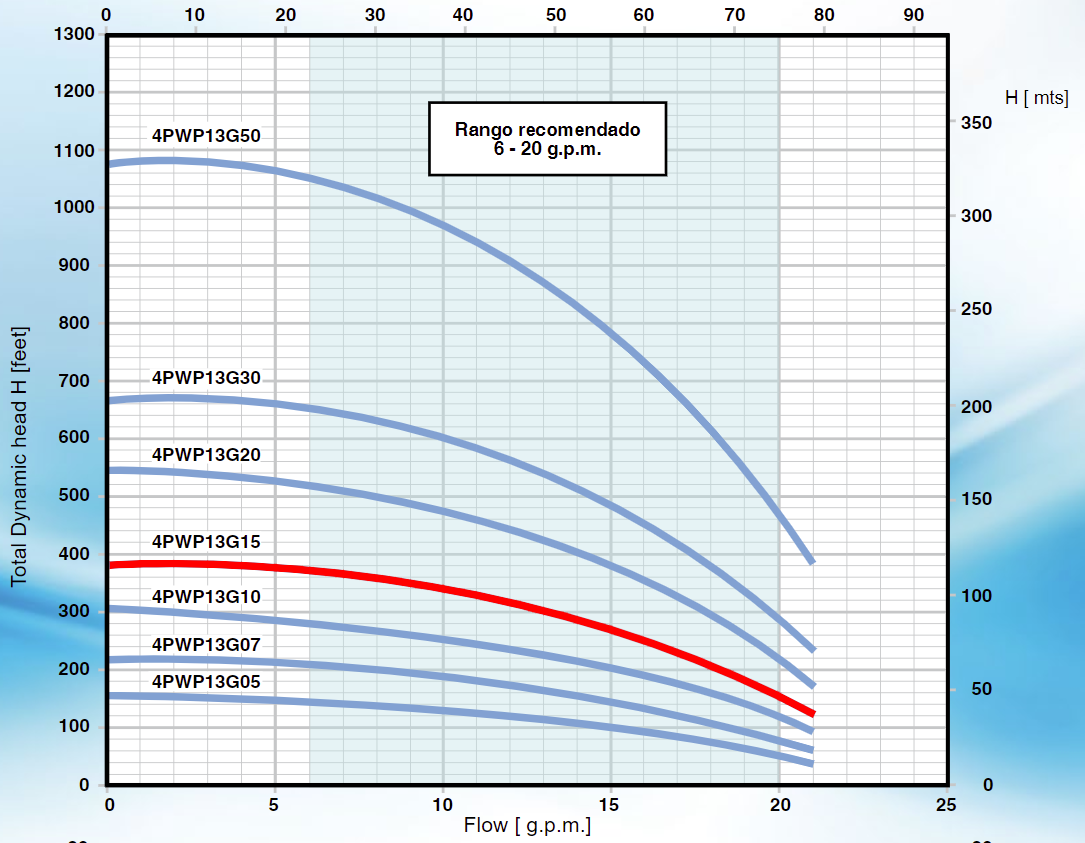

Total Dynamic Head (TDH) | 250 to 275 (TDH), 275 to 300 (TDH), 300 to 325 (TDH), 325 to 350 (TDH) |
---|---|
Motor Wires ( 2W or 3W ) | 2W ( 2-Wires + Ground ) |
Impeller Type | Standard Impellers |
Pump Diameter | 4-Inch |
Horsepower Rated | 1 1/2 hp |
GPM Range | 11 to 15 gpm |
Voltage | 230 Volt |
Brand | Pearl |
Featured Product | No |
