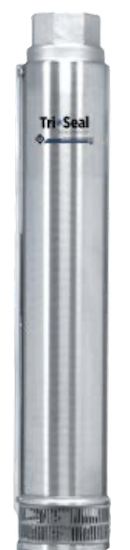

Franklin Electric - High Capacity Submersible Pump End ( ONLY ) - ( 2 HP Rated ) - 60 GPM - 60FH2S4-PECV
• Manufacturer: Franklin Electric
• Model: 60FH2S4-PECV
• SKU: 93666007
• Horsepower Rated: 2 HP ( No Motor - Pump End Only )
• Number of Stages: 7 - Stages
• Rated GPM: 60 GPM
• Rated TDH: 100 TDH

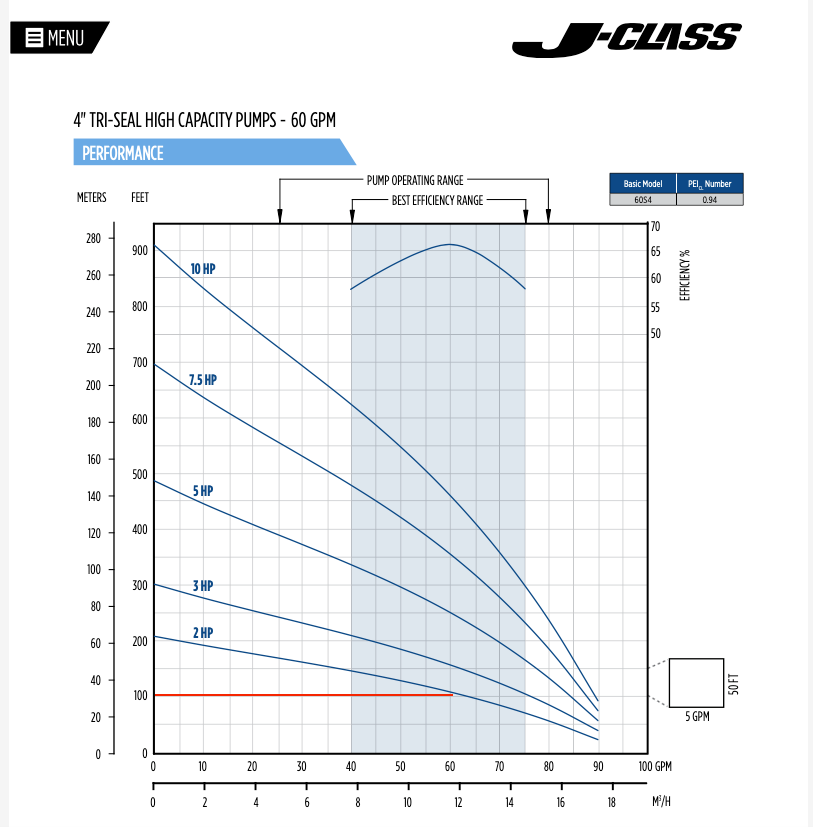

• Pump Operating Range: 30 GPM - 80 GPM
• Best Efficiency Range: 40 GPM - 75 GPM
• Internal Check Valve: Yes
• 2" NPT Discharge
• Length: 25.70 Inches
• Weight: 15 Lbs
Franklin Electric 60FH2S4-PECV High Capacity Submersible Pump End ( ONLY ) - ( 2 HP Rated ) - 60 GPM
The J-Class High Capacity 4" submersible pumps are designed for commercial, irrigation, and home use and are available in multiple performance ranges. Engineering and construction features both combine to reduce the efficiency losses caused by leakage within the pump or from pumping sand. Built for quality. The floating eye and hub seals for improved performance and efficiency. The high flow impellers and stages are glass-filled Noryl for maximum efficiency.
• Stainless steel discharge head and motor bracket
• High flow impellers and stages are glass-filled modified PPO for maximum efficiency
• Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
• Intermediate bearing for increased shaft stability
• Floating eye and hub seals for improved performance and efficiency
• Stainless steel hex pump shaft, shell, and shaft coupling
• High capacity up thrust assembly for protection during start-up and operation (45, 60, and 90 gpm models)
• Recommended to be powered by Franklin’s corrosion-resistant 4" submersible motor (Not Included)
• 2 -inch NPT discharge connection
Total Dynamic Head (TDH) | 75 to 100 (TDH), 100 to 125 (TDH) |
---|---|
Impeller Type | Standard Impellers |
Pump Diameter | 4-Inch |
Horsepower Rated | 2 hp |
GPM Range | 51 to 60 gpm |
Brand | Franklin Electric |
Featured Product | No |
