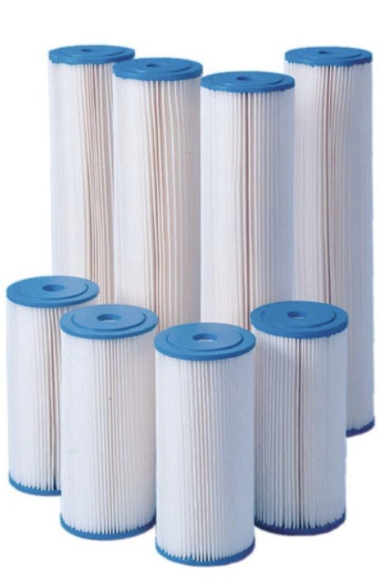

Harmsco Calypso Blue Cartridges Premium Polyester-Plus - 4-1/2 x 20 - 5 Micron - HB-20-5W

$36.74
In stock
SKU
Harmsco_Calypso_Blue_Filter_HB-20-5W
Harmsco Calypso Blue Cartridges Premium Polyester-Plus - 4-1/2 x 20 - 5 Micron - HB-20-5W is available to buy in increments of 8

• Manufacturer: Harmsco
• Brand: Premium Calypso Blue Cartridges with Polyester-Plus
(engineered for high efficiency, low pressure drops)
• Filter Type: Pleated Filter Cartridges
• Filter media: Premium Polyester-Plus
• SKU: HB-20-5W
• Used For: Sediment Filtration
• Designed for 4-1/2” diameter filter housings.
• Outside Diameter: 4-1/2"
• Length: 20"
• Micron Rating: 5 Micron
• Media Sqft: 26 sqft
• Max Flow Rate: 26 GPM
• Tempeture: 140 ̊F (60 ̊C) temperature limit*
* Temperature limits vary and depend on pressure and time under load.

Sold by the Case only (4 filter cartridges)

Harmsco Calypso Filters

HARMSCO Premium Calypso Blue Cartridges with Polyester-Plus - engineered for high efficiency, low pressure drops

• Brand: Harmsco
• Filter Type: Pleated Filter Cartridges
• Filter media: Premium Polyester-Plus
• Used For: Sediment Filtration
• Designed for 4.5” diameter filter housings.
• Length: 20"
• Outer Diameter: 4.5"
• Micron Rating: 5 Micron
• Max Flow Rate: 26 GPM
• Center tubes: PVC
• End caps: Pliable PVC with sealing surface built-in core/media is thermally bonded to end caps for structural rigidity with no fluid by-pass
• Used For: Sediment Filtration
• Maximum Temperature: 140°F
• Maximum Pressure: 40 PSID

About Harmsco Pleated Filter Cartridges

• Harmsco filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because our cartridges are pleated to provide increased surface area and longer life. Lower pressure drop is another significant advantage, using Harmsco Hurricane & WaterBetter pleated cartridges, which allows for increased flow rates and the use of smaller filter housings to reduce capital equipment costs. Further savings are provided because our 100% synthetic filter media is cleanable, five micron and up, to lower cartridge replacement costs.

• Harmsco pleated filter cartridges outperform other pleated elements because our high performance filter media is systematically produced using 100% synthetic fibers, with no binders or additives to leave a residue, foam or contaminate. Our filter media is thicker than other products. For this reason, HARMSCO Premium Hurricane Harmsco-Free Cartridges provide high flow capability, lower overall operating cost,  longer filter runs with fewer change outs.


Harmsco Pleated Filters Features

• Filter media is pleated for greater surface area
• Synthetic filter media is cellulose-free
• “Thicker” filter media has a greater capacity to capture and retain particles, compared to thin, more rigid media types, which have less void space for particle retention
• Increased contanminant removal
• All cartridge types and lengths are individually wrapped

Features to using Flow-Max Filters
• High flow capability; long life; reduced filtration costs, compared to wound and spun cartridges.
• No additives or binders, which may cause foaming.
• Increased dirt holding capacity; longer life; fewer cartridge replacements needed; and reduced filtration costs, compared to other pleated cartridge suppliers
• Increased particle removal efficiency; longer life; and reduced cost per gallon filtered

Lower pressure drop for higher flow rates
Harmsco filter cartridges are pleated, so initial pressure drop is significantly less compared to depth cartridges, such a wound, spun, melt blown and resin bonded. As a result, higher flow rates are possible, reducing filter housing size requirements to lower capital equipment costs.

Washable & Reusable
Harmsco pleasted filter cartridges are washable and reusable, five micron and up to reduce filtration costs. For best results, direct spray into pleats to dislodge sediment. Or, let dry and brush off filter cake from surface of the media


Applications

• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration Desalination
• Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine / Aquatic Filtration
• Water Bottlers

More Information
Micron Rating 5 Micron
Filter Improves / Removes Sediment / Particles
Filter Type Pleated
Approx Filter Size / Type 4-1/2" x 20"
Brand Harmsco
Featured Product No
