Harmsco Hurricane Premium Polyester - Jumbo Pleated Filter Cartridge - Model 90 (7-3/4 x 19-1/2 inch) - 0.35 Micron - HC/90-0.35

$178.49
In stock
SKU
Harmsco_Hurricane_Filter_HC-90-035
Harmsco Hurricane Premium Polyester - Jumbo Pleated Filter Cartridge - Model 90 (7-3/4 x 19-1/2 inch) - 0.35 Micron - HC/90-0.35 is available to buy in increments of 1

• Manufacturer: Harmsco
• Brand: Premium Hurricane Cartridges
• Filter Type: Jumbo Filter Cartridges
• Filter media: Pleated Polyester-Plus
• Used For: Sediment Filtration
• Used With Housings: HP Hurricane and WaterBetter filter housings

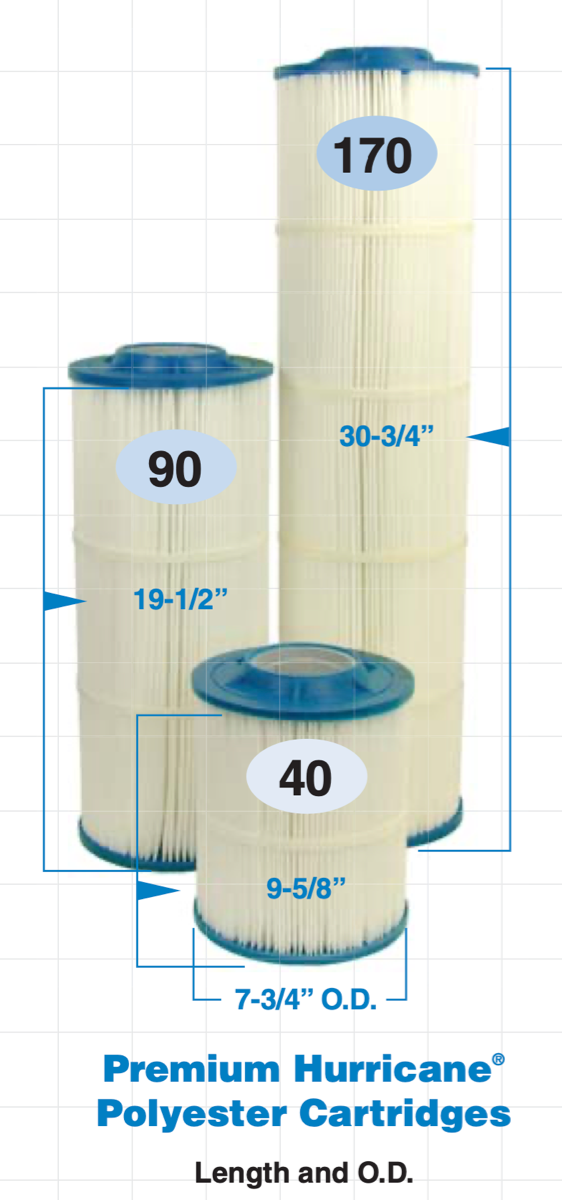

• Outside Diameter: 7-3/4"
• Length: 19-1/2"
• Micron Rating: 0.35 Micron
• Media Sqft: 90 sqft
• Recommended Flow Rate: 70 GPM
• Max Flow Rate: 100 GPM
• Tempeture: 140 ̊F (60 ̊C) temperature limit*
* Temperature limits vary and depend on pressure and time under load



Harmsco Hurricane Pleated Filter Header

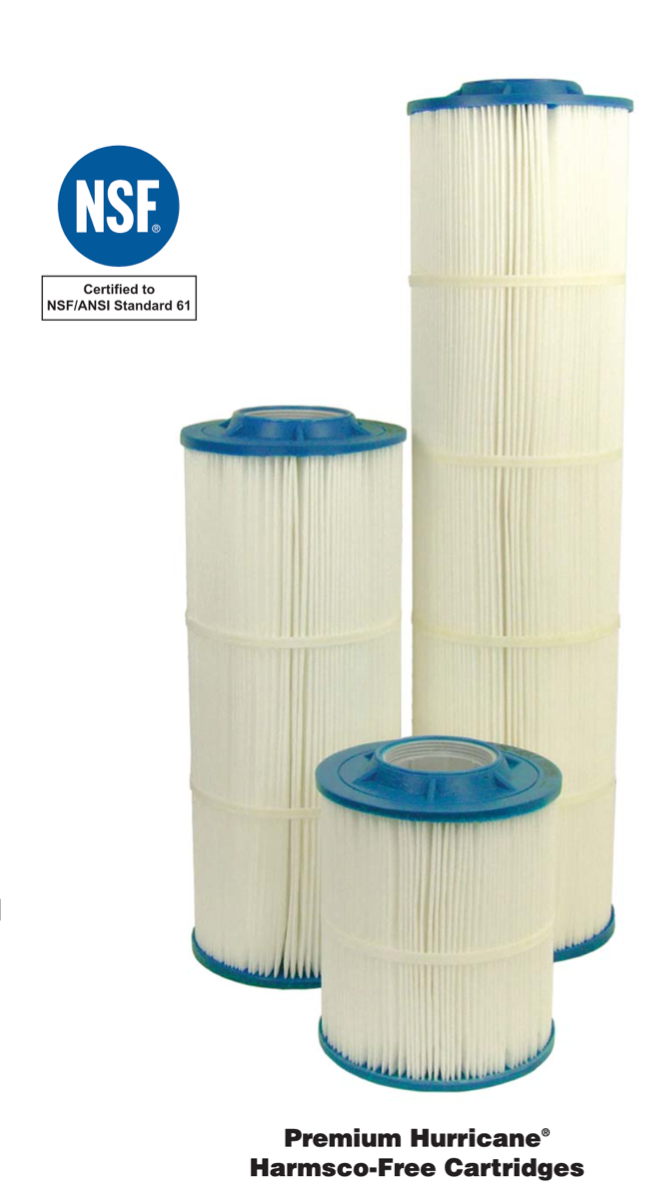

 Premium Hurricane Polyester Pleated Cartridges
• Brand: Harmsco
• Filter Type: Jumbo Filter Cartridges
• Filter media: Pleated Polyester-Plus
• Used For: Sediment Filtration
• Used With Harmsco Hurricane and WaterBetter filter housings
• Length: 19-1/2"
• Micron Rating: 150 Micron
• Recommended Flow Rate: 70 GPM
• Max Flow Rate: 100 GPM
• Center tubes: PVC
• End caps: Pliable PVC with sealing surface built-in
• Used For: Sediment Filtration
• Maximum Temperature: 140°F
• Maximum Pressure: 40 PSID


About Harmsco Pleated Filter Cartridges
• Harmsco filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because our cartridges are pleated to provide increased surface area and longer life. Lower pressure drop is another significant advantage, using Harmsco Hurricane & WaterBetter pleated cartridges, which allows for increased flow rates and the use of smaller filter housings to reduce capital equipment costs. Further savings are provided because our 100% synthetic filter media is cleanable, five micron and up, to lower cartridge replacement costs.
• Harmsco pleated filter cartridges outperform other pleated elements because our high performance filter media is systematically produced using 100% synthetic fibers, with no binders or additives to leave a residue, foam or contaminate. Our filter media is thicker than other products. For this reason, HARMSCO Premium Hurricane Harmsco-Free Cartridges provide high flow capability, lower overall operating cost, longer filter runs with fewer change outs.


Harmsco Pleated Filters Features
• Filter media is pleated for greater surface area
• Synthetic filter media is cellulose-free
• “Thicker” filter media has a greater capacity to capture and retain particles, compared to thin, more rigid media types, which have less void space for particle retention
• Increased contanminant removal
• All cartridge types and lengths are individually wrapped


Features to using Flow-Max Filters
• High flow capability; long life; reduced filtration costs, compared to wound and spun cartridges.
• No additives or binders, which may cause foaming.
• Increased dirt holding capacity; longer life; fewer cartridge replacements needed; and reduced filtration costs, compared to other pleated cartridge suppliers
• Increased particle removal efficiency; longer life; and reduced cost per gallon filtered


Lower pressure drop for higher flow rates
Harmsco filter cartridges are pleated, so initial pressure drop is significantly less compared to depth cartridges, such a wound, spun, melt blown and resin bonded. As a result, higher flow rates are possible, reducing filter housing size requirements to lower capital equipment costs.


Washable & Reusable
Harmsco pleasted filter cartridges are washable and reusable, five micron and up to reduce filtration costs. For best results, direct spray into pleats to dislodge sediment. Or, let dry and brush off filter cake from surface of the media Applications
• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration Desalination
• Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine / Aquatic Filtration
• Water Bottlers



More Information
Micron Rating 0.35 Micron
Filter Improves / Removes Sediment / Particles
Filter Type Pleated
Approx Filter Size / Type Model 90 - 19-3/4" x 7-3/4"
Brand Harmsco
Featured Product No
