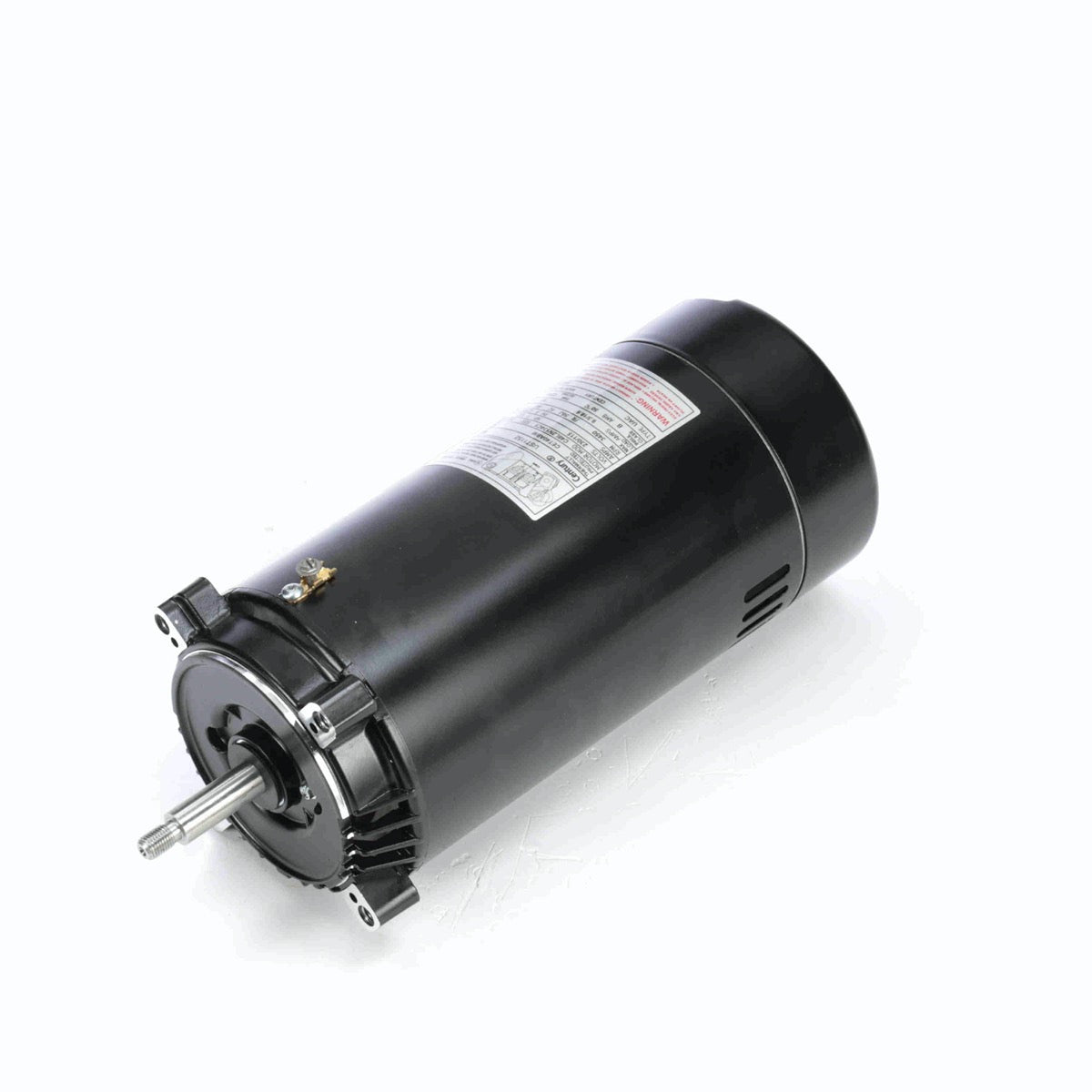

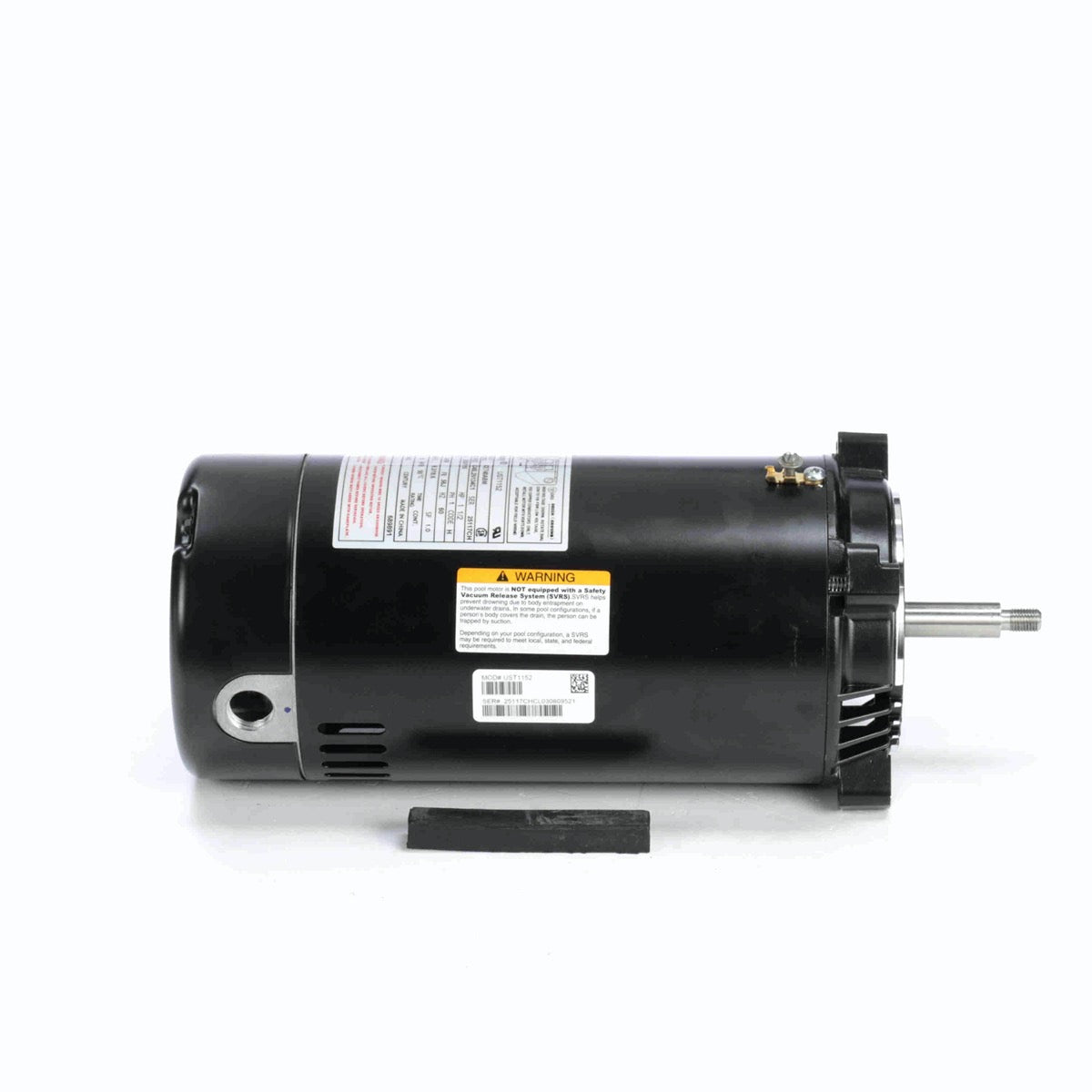

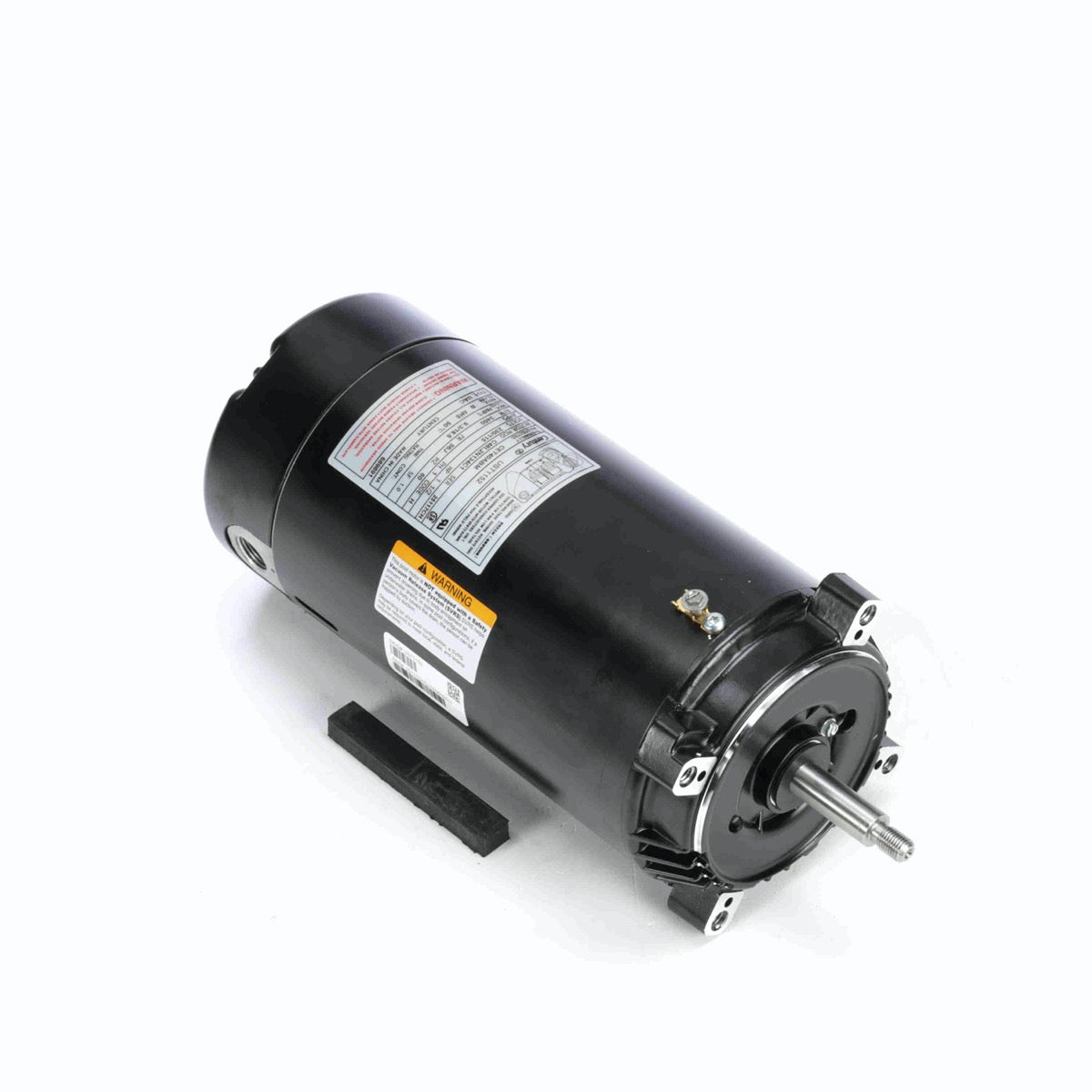

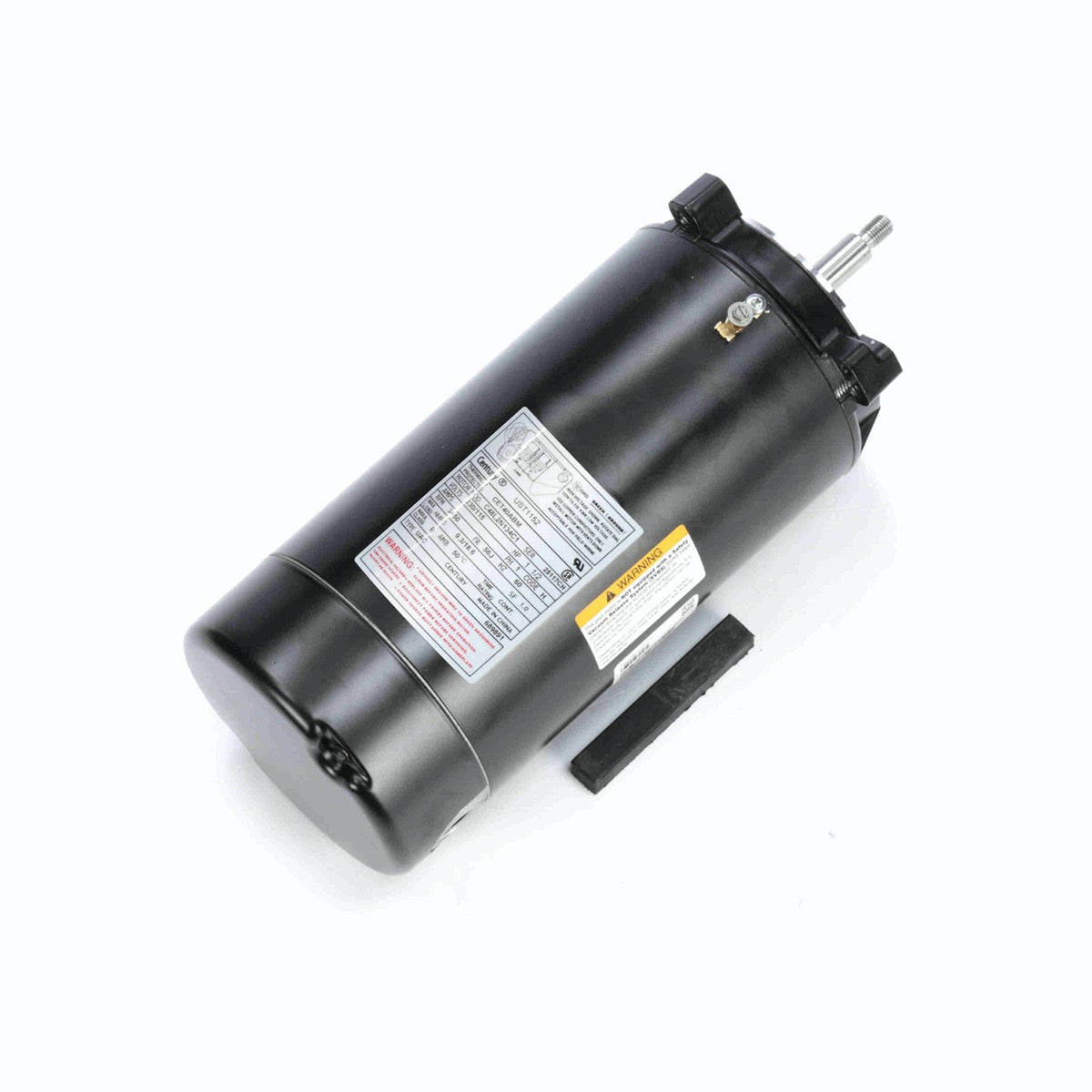

Century Electric UST1152 (equivalent to HST150) - Pool Pump Motor - 56J Frame - C Face ( Round ) - 1.50 HP - 115/230V
$249.95
In stock
SKU
UST1152/HST150
Century Electric UST1152 (equivalent to HST150) - Pool Pump Motor - 56J Frame - C Face ( Round ) - 1.50 HP - 115/230V is available to buy in increments of 1
• Manufacturer: Regal Beloit America, Inc
• Brand: Century Electric ( Formally AO Smith )
• Model: UST1152 , equivalent to the HST150 motor , call for details
• Horsepower ( HP ): 1.50 HP
• Voltage ( V ): 115 / 230 V
• Amps ( A ): 17.2 / 8.6 A
• Output ( KW ): 1.10 kW
• Service Factor ( SF ): 1.0 SF
• Total Horse Power ( THP ): 1.50 THP
• Speed (RPM): 3450 rpm
• Motor Flange: C-Flange ( Round )
• Motor Frame: 56J
Not sure which GO-KIT or Mechanical Seal your pool pump requires?
Click Here to View Pump & Seal Guide ( Below )
Click Here to View Pump & Seal Guide ( Below )
Century Electric UST1152 Pool Pump Motor is the Pool Industry's Leading replacement motor for AO Smith ST1102, AO Smith HST150 , Emerson EST1102 , Emerson EUST1152 , US Motors ( Nidec ) AST165 , Hayward SPX1610Z1M , SN Tech C1101 , SN Tech C1319 , Bluffton B1319 , AO Smith B229SE , Marathon C1319 , Marathon 5KCR39SN2823X
Standard Features of Century Electric UST1152 Pool Pump Motors
• Durable and easy-to-install
• Triple Seal Protection on pump-end bearing protects the bearing from water, pests and debris, extending the life of the motor
• Fast and easy installation with the open and accessible terminal board and wiring compartment
• Long lasting ( When properly Installed and Protected from Mother Nature )
• Designed for optimal performance and efficiency
• Easy voltage change device
• Premium sealed 203 bearings at both ends
• 303 stainless steel threaded shaft
• Most durable and economical solution in the market today
• Definitive shaft access (7/16” wrench)
• Auto protector
• UL 1081 design
• 60 Hz
• 50 C ambient
• Open drip proof
Why choose the Century Centurion PRO Motors over any other pool pump motors? What are the benefits?
The Centurion Pro motors are highly durable and easy to install, no other replacement pump motor comes close to a superbly crafted Century Centurion® PRO pool and spa motor. PLUS The -- NEW -- Triple Seal protection feature is designed into the pump end of the motor to protect the bearings from water, pests and debris, extending the life of the motor.
What is the NEW Triple Seal Protection?
• Triple Seal Protection was developed to combat premature motor failures associated with pump end bearing failures due to water ingress
• Triple Seal Protection is a robust design that protects the pump end bearing on both the outboard and inboard facing seal of the bearing using three distinct sealing systems
• While Triple Seal Protection is designed to protect the pump end bearing from general water ingress, dust and debris, it is not designed to protect against leaky pump seals, constant spray from irrigation systems, or other extraneous conditions
• Seal Protection is another line of defense from moisture intrusion into the pump end bearing system
Pool Pumps & Seals Guide for HST Motor
POOL PUMP ( Models ) | GO-KITs (Includes Mechanical Seal) | MECHANICAL SEAL (ONLY) |
Hayward Max-Flo SP2800 / SP2800X Models: SP2810X15 | GO-KIT1 (Chlorine Pools) GO-KIT1V (Salt Water Pools) | PSR-201 ( Chlorine Pools ) PSR-201V ( Salt Water Pools ) |
Hayward Super II SP3000 / SP3000X Models: SP3010EEAZ, SP3010X15AZ, SP3010X152AZ, W3SP3010X15AZ | GO-KIT2 (Chlorine Pools) GO-KIT2V (Salt Water Pools) | PSR-201 ( Chlorine Pools ) PSR-201V ( Salt Water Pools ) |
Hayward Super Pump SP2600 / SP2600X Models: SP2610X15, SP2670010X15, W3SP2610X15, SP2610X152S | GO-KIT3 (Chlorine Pools) GO-KIT3V (Salt Water Pools) | PSR-201 ( Chlorine Pools ) PSR-201V ( Salt Water Pools ) |
Motor Flange Type | C-Face ( Round ) |
---|---|
Motor Frame | 56J |
Total Horsepower ( THP ) | 1.50 THP |
Service Factor ( SF ) | 1.00 SF |
Horsepower ( HP ) | 1.50 hp |
Motor Speeds | Single Speed |
Voltage | 115 / 230V |
Brand | Century Electric Motors |
Featured Product | No |
