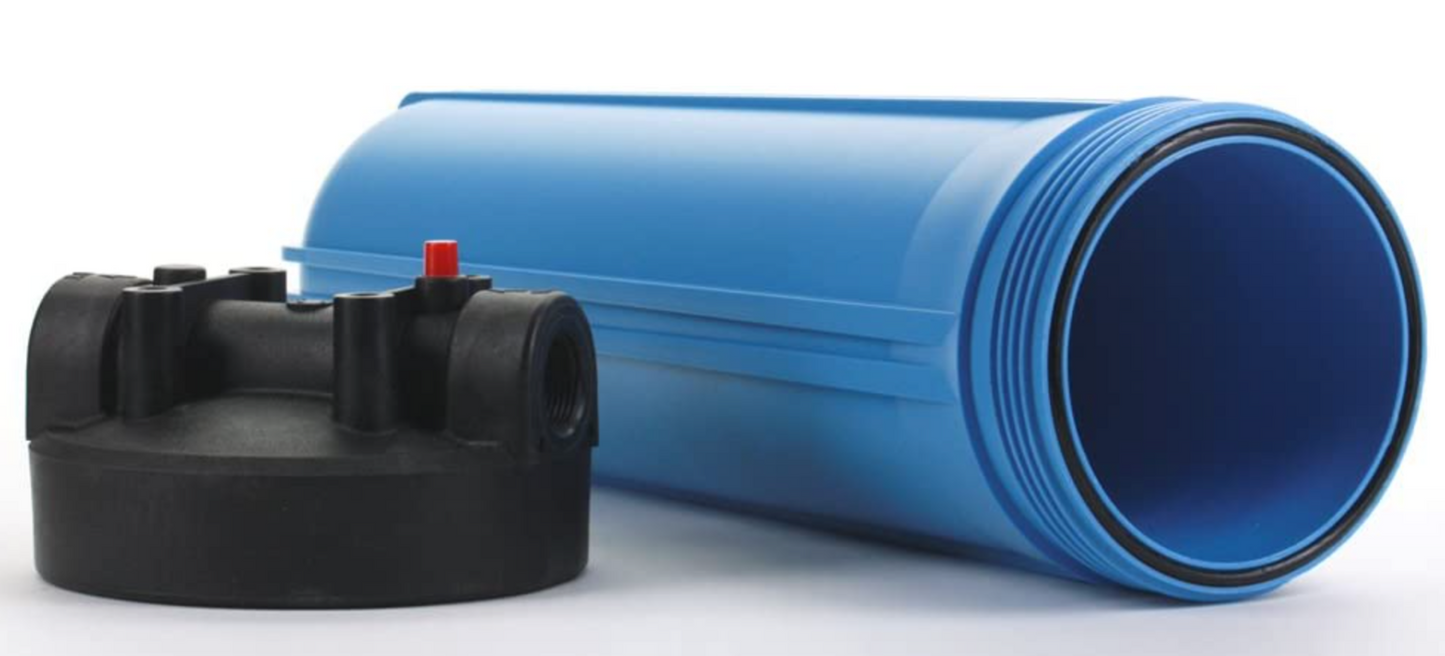

Hydronix Water - HF45 Series - Triple Filter Housing W/Pressure Relief - 4.5 x 20 inch - 1 inch Ports
• Full-Flow Residential Blue Filter Housing with Black Cap.
• Manufacturer: Hydronix
• Connection Size 1 inch inlet/outlet Ports
• Diameter 4.5 inch Cartridge
• Length 20 inch
• Fits nearly any brand of 20" x 4.5" filter cartridges
• Female threaded ports allows for high flows and easy installtion
• Pressure release button makes allows for easier removal of filter housing
• Mounting holes line up with all standard Big Blue mounting brackets
• This is the HOUSING ONLY... does not include any filter cartridges
Hydronix 20" Commercial Filter Housing W/Pressure Relief 1 inch in/out ports.
Hydronix Commercial Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications.
Introducing the Hydronix Three-Stage Water Filtration System, designed with a durable 4.5" x 20" housing for robust water filtration in commercial settings.
Featuring 1" Full Flow Inlet & Outlet, this system includes a mounting bracket, screws, and filter wrench for convenient installation. With a flow capacity of up to 25 GPM, the system's performance varies based on the filters used.
The 20" Commercial-Grade Cartridge Filter Housing comes equipped with 1" Inlet/Outlet and includes a Pressure Relief Valve. Built to endure challenging conditions, this high-quality filter housing boasts an exclusive thread design for superior sealing, minimizing the risk of leaks.
Designed for versatility, the system accepts replacement filters compatible with nearly any 4.5" x 20" filter cartridge available in the market. It supports cartridges from reputable brands such as Watts, Harmsoc, Culligan, Flowmatic, Liquatec, Pentek, and many others, ensuring compatibility with a wide range of housing units.
- Pressure Relief Button
- Large capacity for high flow applications
- Polypropylene construction
- Accomodates most 4.5"x 20" filter cartridges
- NSF Certified to Standard 42
| GPM Flow Rate | 1-50 |
|---|---|
| Approx Filter Size / Type | 4-1/2" x 20" |
| Brand | Hydronix |
| Featured Product | No |
