Pearl Thor10 Centrifugal Irrigation Pump - 1.0 HP - 115 / 230V

• Manufacturer: Pearl
• Series: THOR
• Product Type: Centrifugal Irrigation Pump

• Horsepower: 1.0 HP
• Dual Voltage: 115 / 230 V
• Pipe Connections: 1-1/2" FNPT (Inlet) / 1-1/2" FNPT (Outlet)

• Optimum TDH Range: 70 to 80 TDH
• Optimum PSI Range: 30 to 35 psi
• Optimum Flow Rate: 30 to 40 GPM

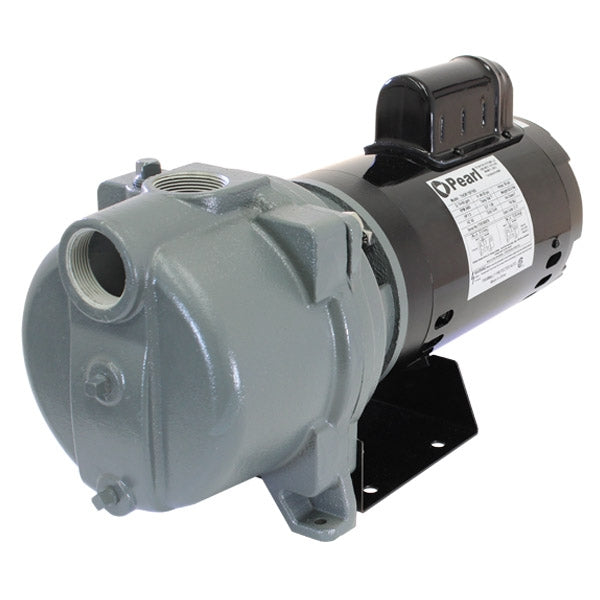

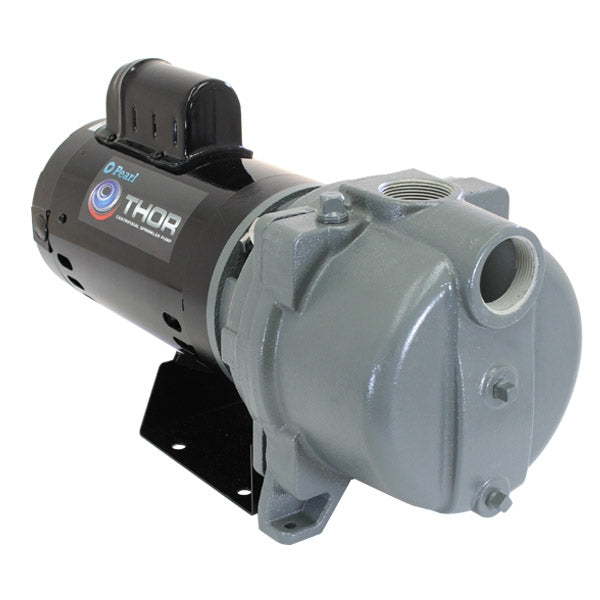

Pearl THOR10 - Centrifugal Irrigation Pump
THOR is a self priming centrifugal pump. The THOR pump was designed taking into consideration all the features needed to guarantee complete customer satisfaction, such as:

All components were designed to assure the best performance and reliability
• THOR’s construction is it suitable for outdoor applications.
• THOR is used in irrigation systems where high flow is important at pressures necessary for efficient irrigation.
• THOR also has applications in Air Conditioning, Water Re-circulation, Residential, Water Supply, Pressure Booster and many other applications.
• Its construction makes THOR suitable for indoor and outdoor installations.

Pearl Thor Typical Applications
• Lifting water containing air or other gases
• Water re-circulation
• Irrigation systems

OPERATING CONDITIONS
• Liquid temperature: 32 °F - 150 °F
• Maximum working pressure: 125 PSI
• Continuous duty
• Max Suction Lift Capability up to 25 ft.

CONSTRUCTION
• Closed coupled self-priming centrifugal pump
• High quality components for domestic water supply and irrigation in respect to low lead requirements
• Connections threaded ports NPT
• All hardware in Stainless Steel
• Pre-drilled priming port with plug
• Pre-drilled drain port with plug for maintenance
• U shape base on all models gives a complete full support to the pump

MOTOR
• NEMA Standard ODP 56J - wide body - motors for much cooler surface temperature
• Thermal overload protection
• Permanent Split Capacitor (PSC) without centrifugal switch for the 1 - 1½ - 2 Hp versions
• Front bearing 6204 for much longer life span
• All copper winding
• Class F Dupont Nomex Insulation System, cCSAus approved
• Single phase, 115/230V for 1 - 1½ Hp models
• Single phase, 230 V for 2 Hp models
• Easy voltage conversion for 1 - 1½ Hp models
• Maximum ambient temperature: 104 °F

PEARL THOR IS AN OPTIONAL REPLACEMENT PUMP FOR:
GOULDS GT10
STARITE DS3HE-01
FRANKLIN ELECTRIC TURF BOSS FTB1CI
RED LION RL-SPRK100
FLINT AND WALLING SP10P1
