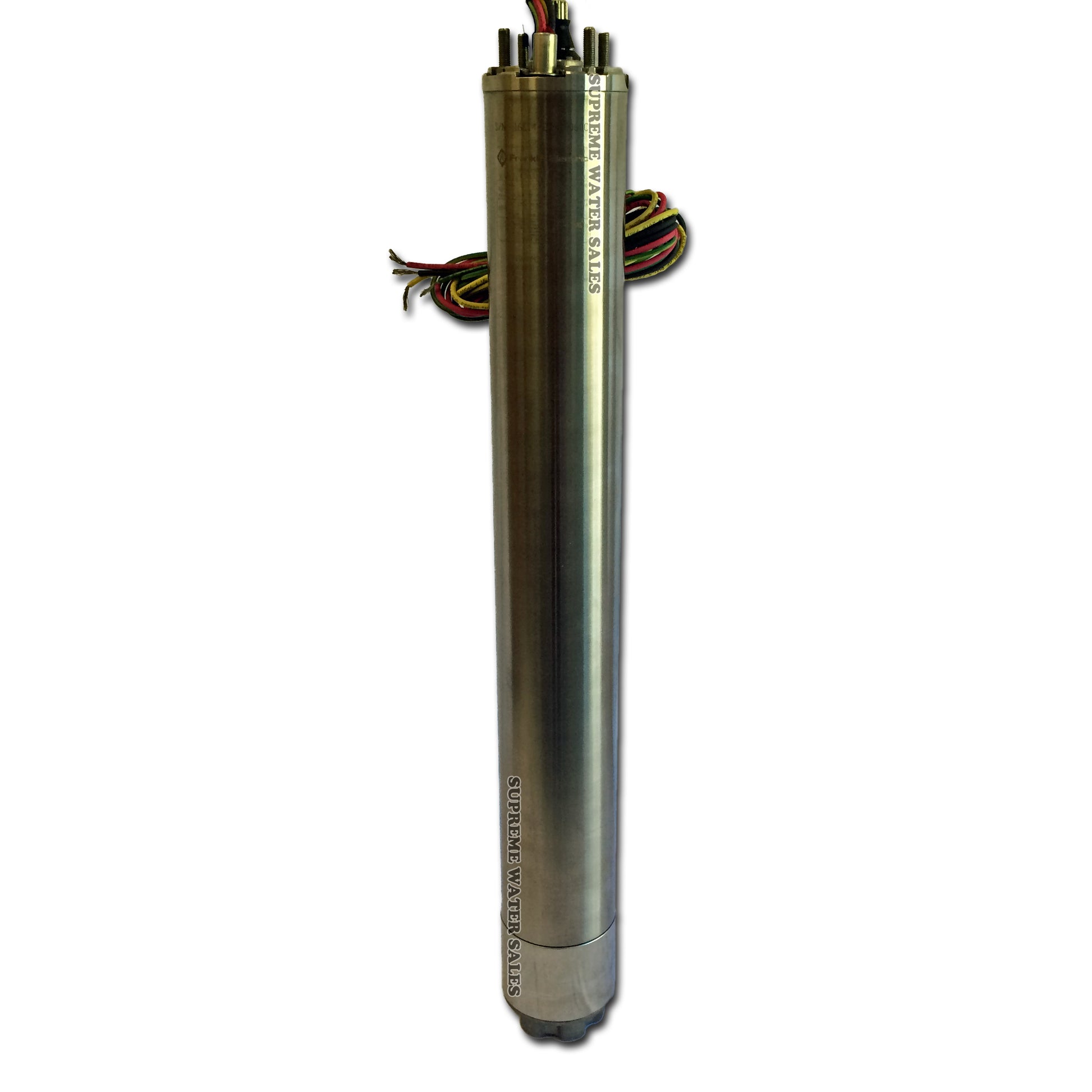

Franklin Electric 2347288602G - 4 Inch Submersible Motor - 7.5 HP - 460/380 Volt - 3 Phase

Franklin Electric - 4-Inch High-Thrust Super Stainless Motor Specifications
■ 7.5 hp
■ 3-Wire (Will need a control box to operate)
■ 460/380 volt
■ 60 Hz
■ Three Phase
■ 3450 RPM
■ Continuous Duty Rated
■ Kilowatts Rating: 3.7 KW
■ Service Factor: 1.15
■ Length 23.18 in
■ Lead in Motor

PLEASE NOTE:This item is for a motor - only - not a complete submersible pump
Franklin Electric Applications - These motors are built for dependable operation in 4” diameter or larger water wells.

Basic / General Information for Motor Features
■ Corrosion-resistant stainless steel exterior
■ Stainless steel splined shaft
■ Hermetically-sealed windings
■ StatorShield™ resin system
■ Filter check valve
■ Water lubrication
■ Kingsbury-type thrust bearing
■ Pressure-equalizing diaphragm
■ Built-in lightning arrestors (All single-phase; 200 & 300 V three-phase)
■ Removable water bloc lead
■ Franklin-manufactured control boxes available for single-phase motors
■ UL 778 recognized (North American voltages)
■ CSA certifi ed
■ ANSI/NSF 61 certified
■ Industry standard NEMA mounting dimensions

Special Features for Franklin Electric Motors
■ Flow inducer sleeve not required in water up to 86 °F (30 °C) for motors through 2 hp.
■ Two-wire motors are split-phase designs with integral starting components and do not require a control box. They feature Franklin’s patented 2-wire BIAC starting switch which provides Reverse Impact Torque to aid starting in adverse environments and prevents extreme fast cycling (e.g. water logged tank).
■ Three-wire motors through 1 hp use Franklin’s exclusive three-wire QD (Quick Disconnect) Control Box with the patented QD Relay. This relay provides the ultimate in operational life.
■ Single-phase motors can be used with Pumptec products to protect against dry-run and other installation conditions that can damage motors and/or pumps. See Single-phase Protection Devices for details.

Constant Pressure Options available for Franklin Electric Motors
■ Use Franklin’s MonoDrive controller with 11⁄2 hp three-wire single-phase motors to provide constant water pressure.
■ Three-phase motors can be used with SubDrive controllers to provide constant water pressure.
