Franklin Electric 2801084915 - 1 HP - QD Submersible Motor Control Box - 230 Volt

• Manufacturer: Franklin Electric
• Model: QD Control Box
• MPN: 2801084915
• Motor HP Rated: 1 Hp
• Voltage Rated: 230 Volt

• Enclosure Rated: NEMA 3R, IP23
• Enclosure Dimension: 4.81" (W) x 8.41" (H) x 2.84" (D)
• Terminal Block: 5 Terminals provided for wiring up to AWG 10 Wire
• Knockouts: ( Bottom ): Two 0.88" knockouts and one 1.31" knockout; ( Side ) One 0.88" knockout and one 1.31" knockout on each side
• Start Contactor: Yes
• Run Contactor: No
• Mag Contactor: No

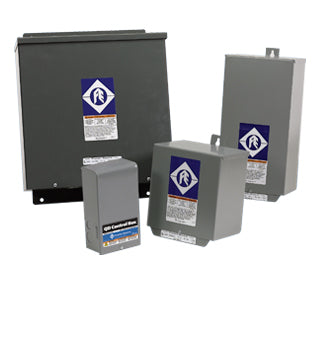

Franklin Electric Submersible Pump Motor Controllers
The Quick Disconnect (QD) and Capacitor Run Control (CRC) control boxes are designed for use with Franklin 3-wire (AKA: 3 Wires plus 1 Ground Wire ), single-phase submersible motors
These control boxes are recommended for water systems that use pressure switches, level switches, or other pilot devices.

Standard Features on ALL Franklin Electric Control Boxes
• Suitable for outdoor mounting
• Capacitor start/run design (except QD boxes)
• UL Listed for US and Canada (60 Hz models)

Specifications on QD & CRC Control Boxes
• Bottom Knockout: Two 0.88" knockouts and one 1.31" knockout
• Side Knockout: One 0.88" knockout and one 1.31" knockout on each side
• Terminal Block: Five terminals provided for wiring up to AWG #10 wire
• Enclosure Rated: NEMA 3R, IP23
• Agency Approvals: UL listed for US and Canada
