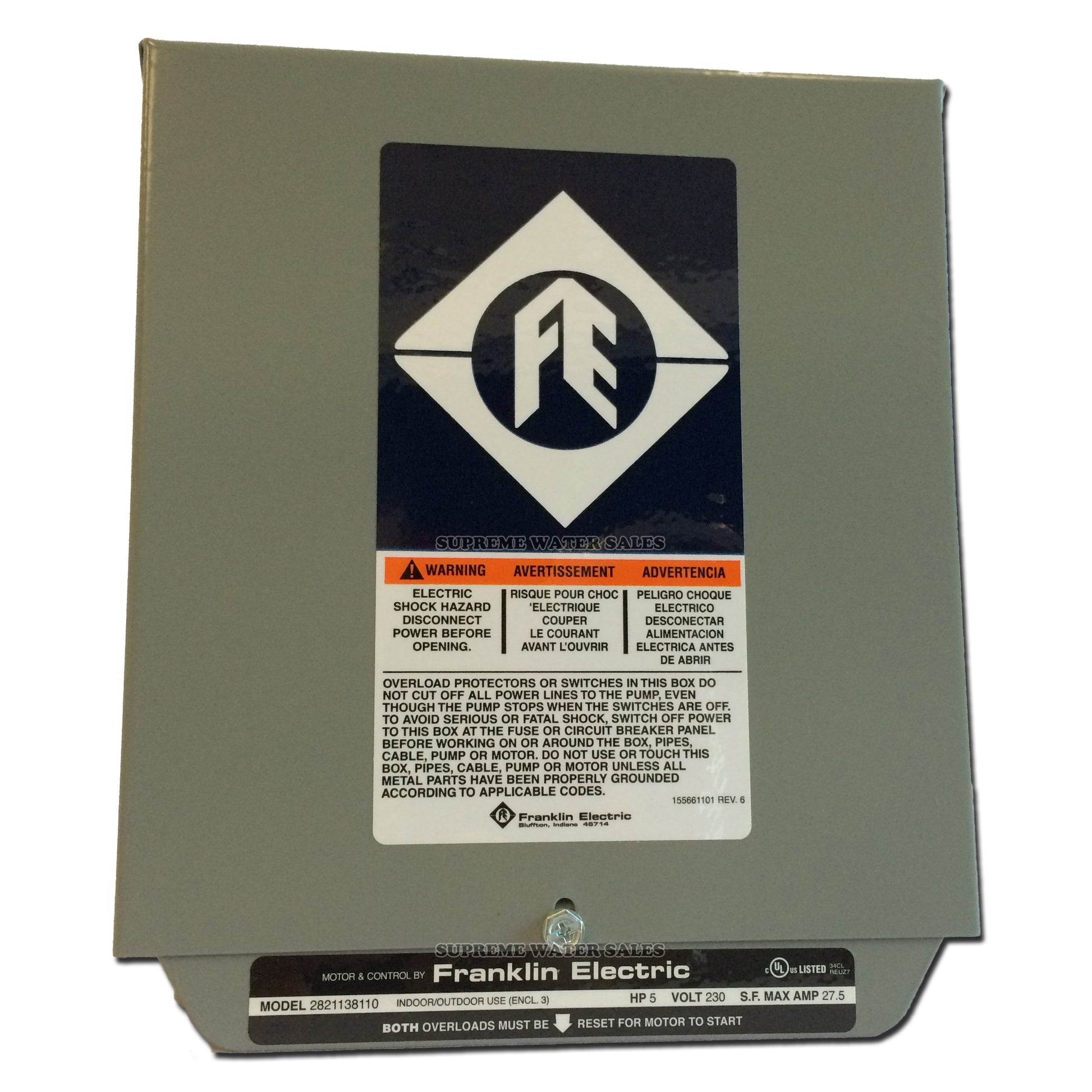

Franklin Electric 2821138110 - 5 HP - Submersible Motor Control Box - STANDARD

• Manufacturer: Franklin Electric
• Product Type: Submersible Motor Controller
• Control Box Type: STANDARD

• MPN: 2821138110

• Submersible Motor Rating: 5 HP
• Voltage Rating: 230 Volts
• Phase: Single Phase
• Hertz: 60 Hz

• Terminal Block: FIVE Terminals
• Magnetic Contractor: NO
• Enclosure Dimension: 8.03" (W) x 9.31" (H) x 5.84" (D)

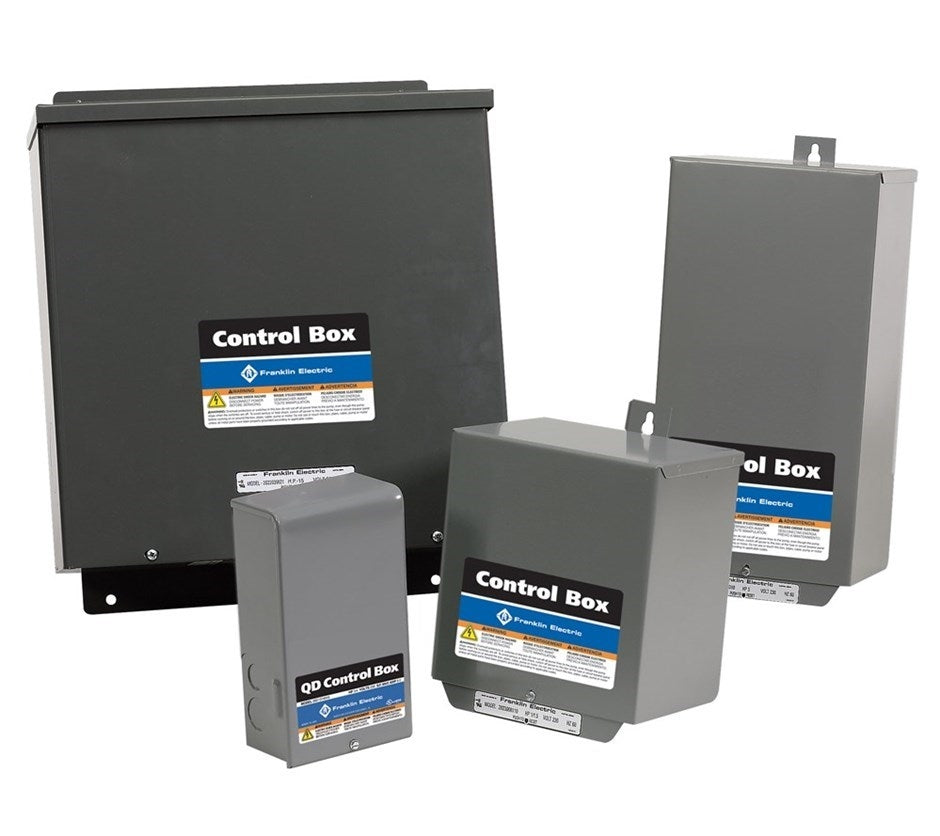

Franklin Electric Submersible Pump Motor Controllers
The Standard & Deluxe motor control boxes are designed for use with Franklin Electric 3-wire (AKA: 3 Wires plus 1 Ground Wire ), single-phase submersible motors.
These control boxes are recommended for water systems that use pressure switches, level switches, or other pilot devices.
Deluxe boxes contain magnetic line contractors carefully matched to the motor rating, eliminating the need for external line connectors.

Standard Features on ALL Franklin Electric Control Boxes
• Suitable for outdoor mounting
• Capacitor start/run design (except QD boxes)
• UL Listed for US and Canada (60 Hz models)

Features on Standard & Deluxe Control Boxes
• Heavy-duty, box-type terminals accept up to AWG #2 wire
• External access to overload resets
• Multiple-size knockouts

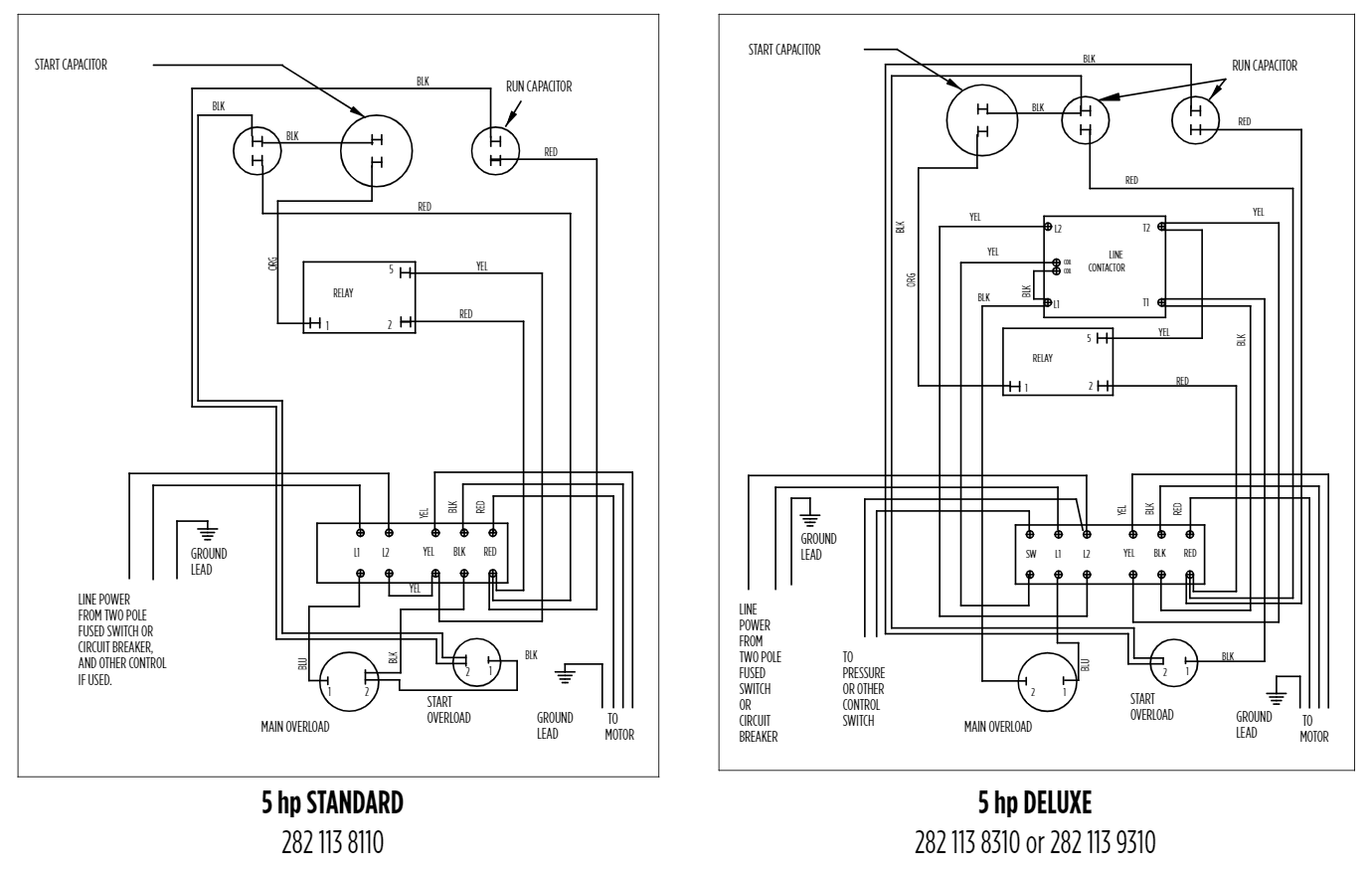

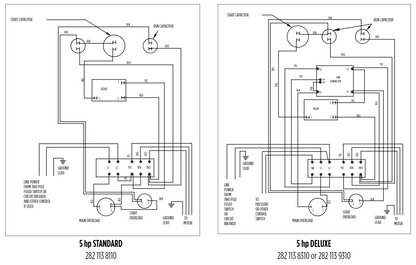

• User-friendly connection diagrams
• Easy access to grounding lugs

Specifications on Standard & Deluxe Control Boxes
• Knockouts: Two 1.31" diameter holes for 1" conduit connection; One 1.75" knockout for 1.25" conduit; One 0.88" knockout for 0.5" conduit connection
• Terminal Block (DELUXE): Six terminals provided for wiring up to AWG 2 wire
• Terminal Block (STANDARD): Five terminals provided for wiring up to AWG 2 wire
• Enclosure Rated: NEMA 3R, IP23
• Agency Approvals: UL listed for US and Canada
