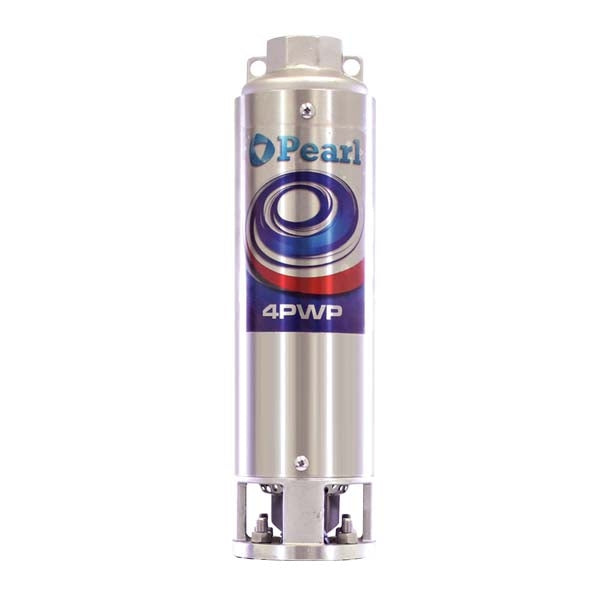

Pearl 4PWP-13G30 Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 13 GPM

• Manufacturer: Pearl
• Series: 4PWP
• Product Type: 4" Submersible Pump - Pump End ( ONLY )
• Pump Model: 4PWP-13G30

• Pump Motor Rating: Use with 3 HP Motor ( Not Included )

• Pump GPM Rated: 13 GPM
• Pump Stages: 21 Stages
• Pump TDH Rated: 540 TDH

• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
Pearl 4PWP-13G30 Submersible Pump End ( ONLY ) - 3 HP Rated - 13 GPM
Multipurpose applications in the residential, agriculture and industrial markets.

Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains
• Irrigation and water transfer

Standard Features of Pearl 4" Submersible Pumps Ends
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings
• Stainless steel check valves
