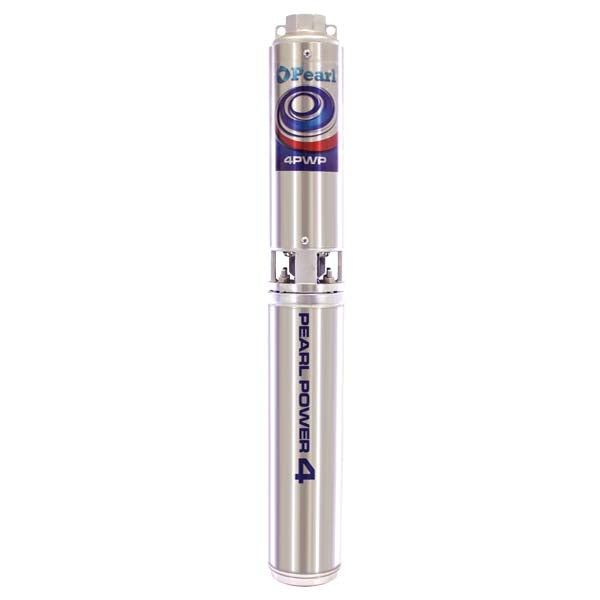

Pearl 4PWP05G-10C163P Submersible Pump - 5 GPM - 1 HP - 230 Volts ( 3 Wires + Ground ) - SS

• Manufacturer: Pearl
• Series: 4PWP
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Pump Model: 4PWP05G
• Motor Model: 10C163P

• Motor Horsepower: 1 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / N / Ground )

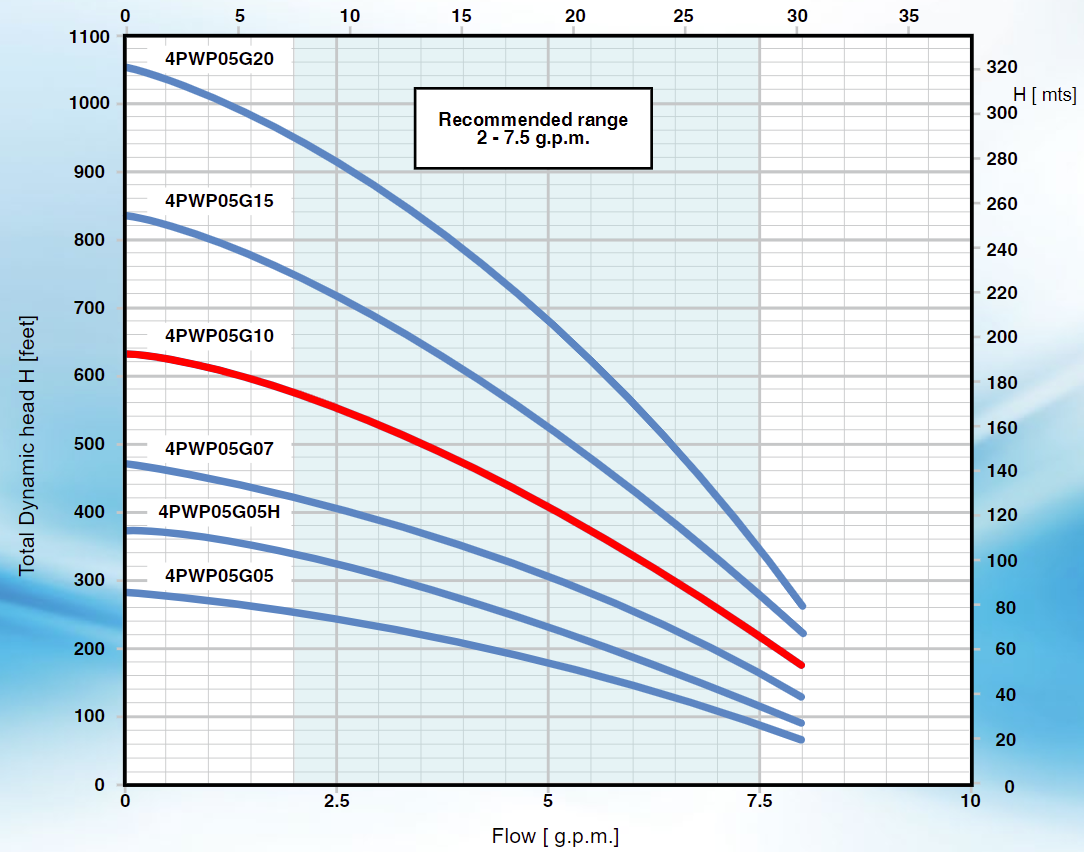

• Pump GPM Rated: 5 GPM
• Pump Stages: 20 Stages
• Pump TDH Rated: 400 TDH

• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
PEARL 4PWP05 Series - 5 GPM - 4" Submersible Pump - 1 HP - 230 Volts ( 3 Wires + Ground )

Multipurpose applications in the residential, agriculture and industrial markets.

Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains, etc
• Irrigation and water transfer

Standard Features of Pearl 4" Submersible Pumps
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings

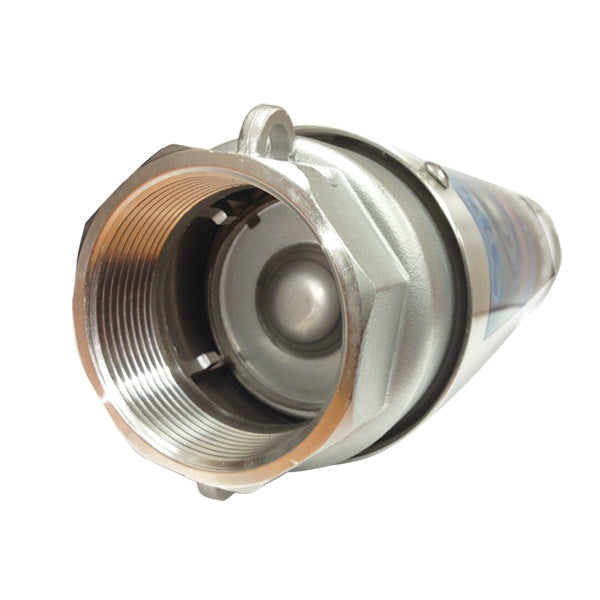

• Stainless steel check valves
