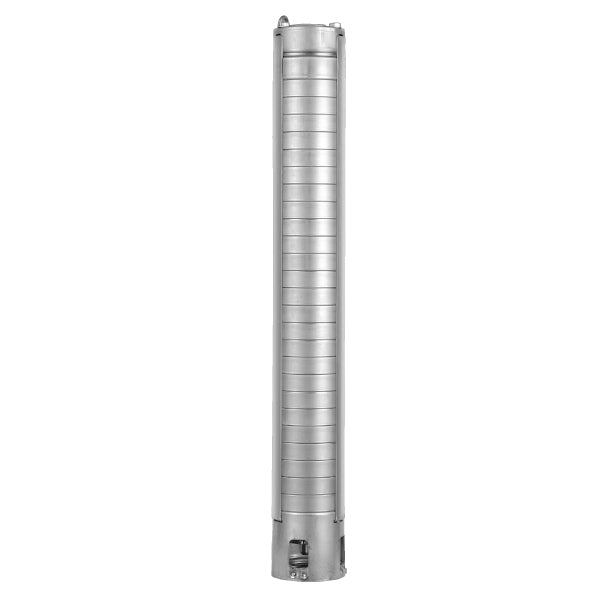

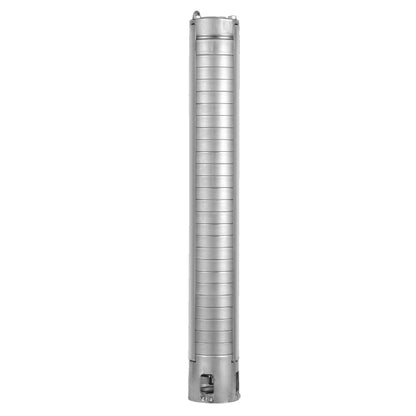

Pearl 4PWS-05G15 Submersible Pump End ( ONLY ) - ( 1-1/2 HP Rated ) - 5 GPM - Full Stainless Steel
Pearl 4PWS-05G15 Submersible Pump End ( ONLY ) - ( 1-1/2 HP Rated ) - 5 GPM - Full Stainless Steel
Regular price
$1,994.71 USD
Regular price
$0.00 USD
Sale price
$1,994.71 USD
Quantity
Couldn't load pickup availability
• Manufacturer: Pearl
• Pump Series: 4PWS05G
• MPN: 4PWS-05G15
• Pump Type: 4" Submersible - Pump End Only
• Motor Horsepower Rated: 1-1/2 HP
NOTE: No Motor Included - Purchased Separately
• Pump GPM Rating: 5 GPM

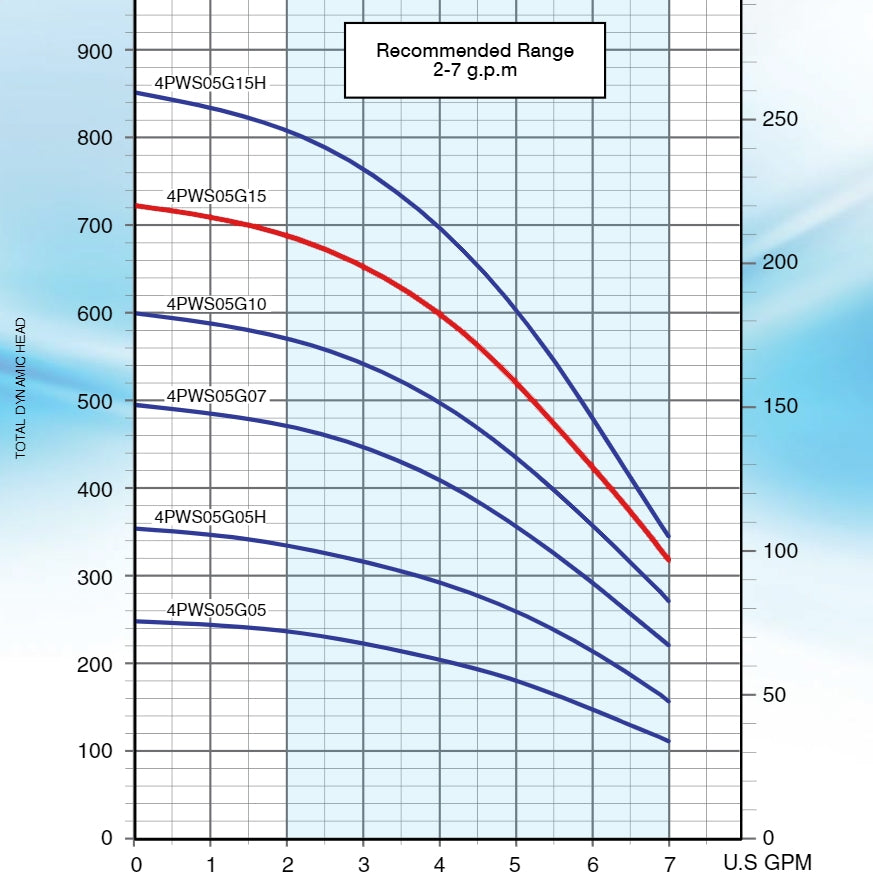

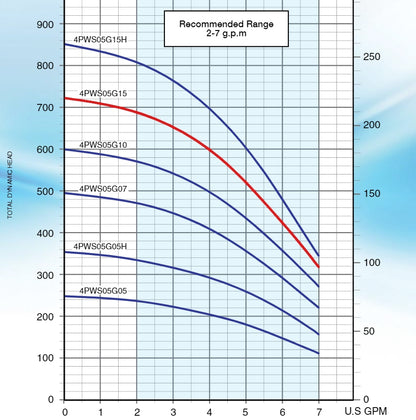

• Total Dynamic Head: 520 TDH
• Number of Stages: 26 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS05G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-05G15 - 4" Submersible Pump End ( ONLY ) - ( 1-1/2 HP Rated ) - 5 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F
Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation

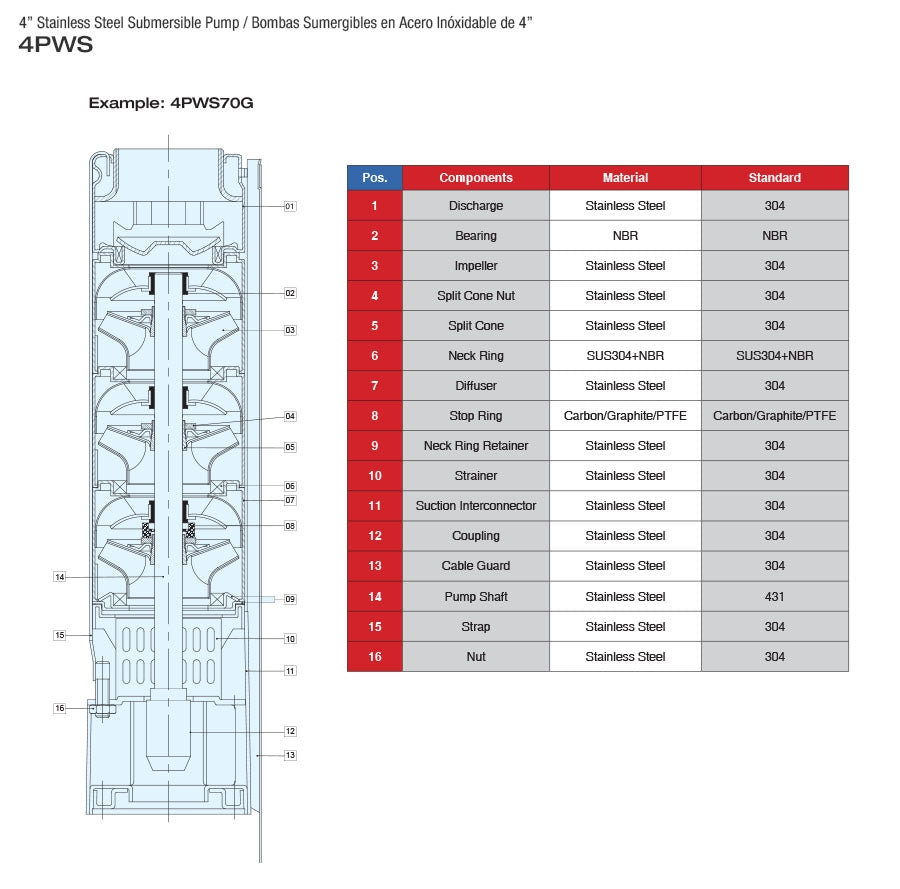

• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

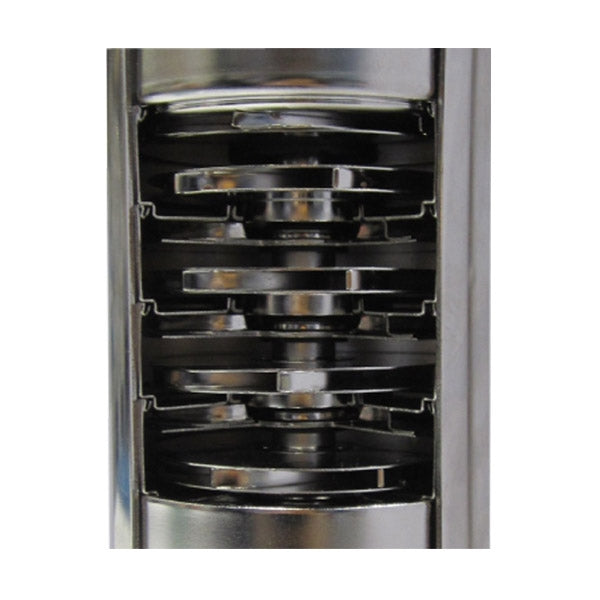

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance

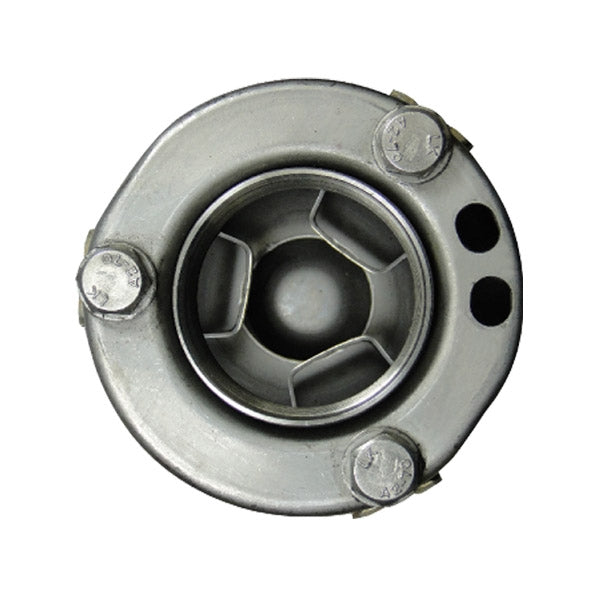

• Stainless steel strainer to restrict the entry of sand and other extraneous material
Goulds 5GS15 - Pearl 5G15 Compared To Goulds 5GS15 Submersible Pump
• Pump Series: 4PWS05G
• MPN: 4PWS-05G15
• Pump Type: 4" Submersible - Pump End Only
• Motor Horsepower Rated: 1-1/2 HP
NOTE: No Motor Included - Purchased Separately
• Pump GPM Rating: 5 GPM
• Total Dynamic Head: 520 TDH
• Number of Stages: 26 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS05G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-05G15 - 4" Submersible Pump End ( ONLY ) - ( 1-1/2 HP Rated ) - 5 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F
Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation
• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance
• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS
Goulds 5GS15 - Pearl 5G15 Compared To Goulds 5GS15 Submersible Pump
Goulds 5GS15CBM
Red Jacket 6S32
Myers ST15-5PLUS
Franklin Electric Schaefer 5SV15S4-PE
Franklin Electric Schaefer 5LD15S4-PE
Franklin Electric FPS 5FA15S4-PE
Franklin Electric FPS 5FV15S4-PE
Franklin Electric J-Class 5JS15S4-PE
Franklin Electric J-Class 5JV15S4-PE
