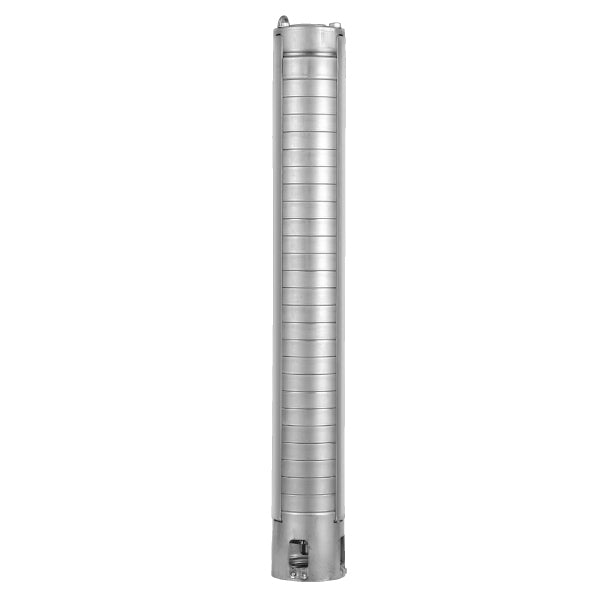

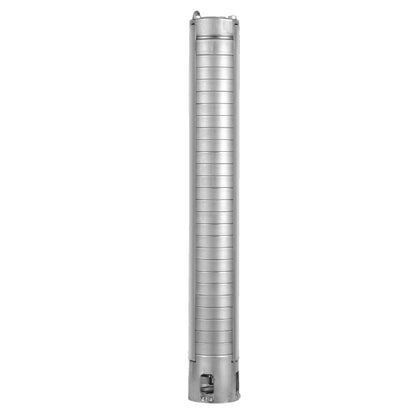

Pearl 4PWS-07G05 Submersible Pump End ( ONLY ) - ( 1/2 HP Rated ) - 7 GPM - Full Stainless Steel
Pearl 4PWS-07G05 Submersible Pump End ( ONLY ) - ( 1/2 HP Rated ) - 7 GPM - Full Stainless Steel
Regular price
$831.13 USD
Regular price
$0.00 USD
Sale price
$831.13 USD
Quantity
Couldn't load pickup availability
• Manufacturer: Pearl
• Pump Series: 4PWS7G
• MPN: 4PWS-07G05
• Pump Type: 4" Submersible - Pump End Only
• Motor Horsepower Rated: 1/2 HP
NOTE: No Motor Included - Purchased Separately

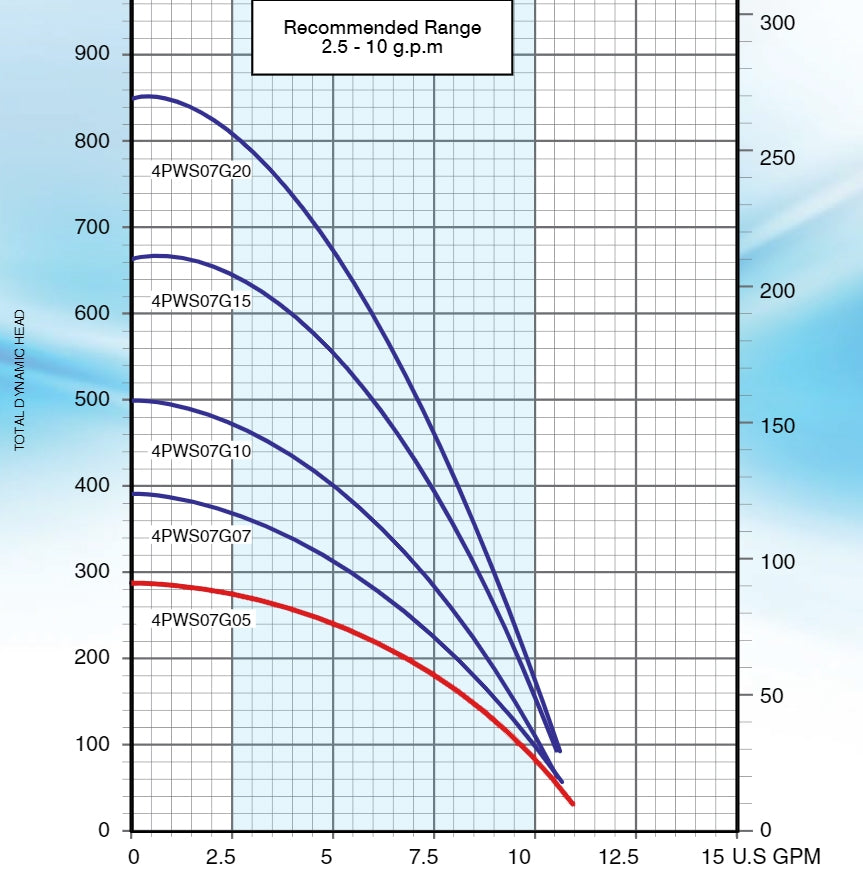

• Pump GPM Rating: 7 GPM
• Total Dynamic Head: 195 TDH
• Number of Stages: 10 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS07G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-07G05 - 4" Submersible Pump End ( ONLY ) - ( 1/2 HP Rated ) - 7 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F

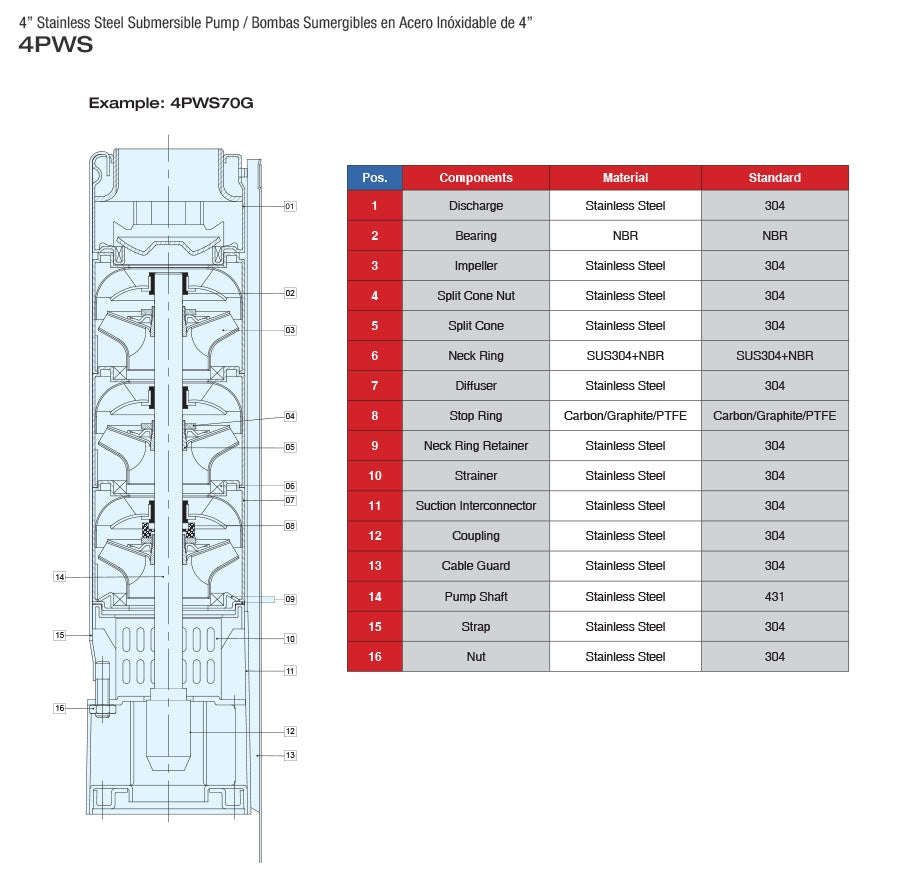

Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation
• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

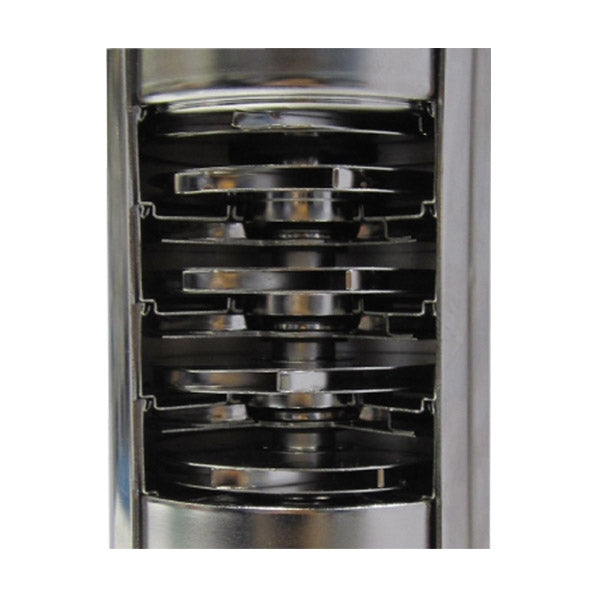

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
Goulds 7GS05 - Pearl 7G05 Compared To Goulds 7GS05 Submersible Pump
• Pump Series: 4PWS7G
• MPN: 4PWS-07G05
• Pump Type: 4" Submersible - Pump End Only
• Motor Horsepower Rated: 1/2 HP
NOTE: No Motor Included - Purchased Separately
• Pump GPM Rating: 7 GPM
• Total Dynamic Head: 195 TDH
• Number of Stages: 10 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS07G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-07G05 - 4" Submersible Pump End ( ONLY ) - ( 1/2 HP Rated ) - 7 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F
Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation
• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance
• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS
Goulds 7GS05 - Pearl 7G05 Compared To Goulds 7GS05 Submersible Pump
Goulds 7GS05CBM
Red Jacket 8S12
Myers ST5-8PLUS
Franklin Electric Schaefer 7SV05S4-PE
Franklin Electric Schaefer 7LD05S4-PE
Franklin Electric FPS 7FA05S4-PE
Franklin Electric FPS 7FV05S4-PE
Franklin Electric J-Class 7S05S4-PE
Franklin Electric J-Class 7JV05S4-PE
