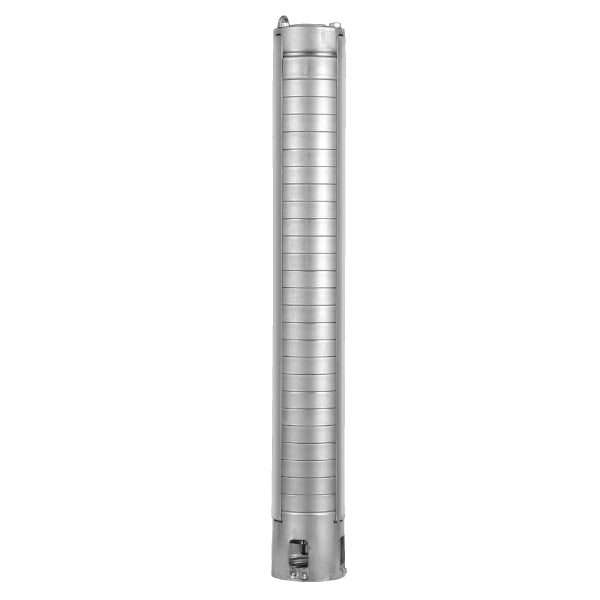

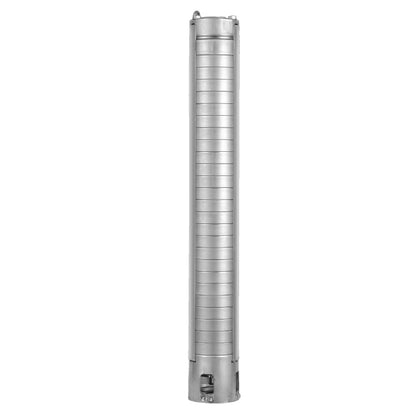

Pearl 4PWS-07G15 Submersible Pump End ( ONLY ) - ( 1-1/2 HP Rated ) - 7 GPM - Full Stainless Steel

• Manufacturer: Pearl
• Pump Series: 4PWS7G
• MPN: 4PWS-07G15
• Pump Type: 4" Submersible - Pump End Only

• Motor Horsepower Rated: 1-1/2 HP
NOTE: No Motor Included - Purchased Separately

• Pump GPM Rating: 7 GPM
• Total Dynamic Head: 425 TDH

• Number of Stages: 22 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS07G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-07G15 - 4" Submersible Pump End ( ONLY ) - ( 1-1/2 HP Rated ) - 7 GPM

The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.

Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump

PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F

Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation
• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

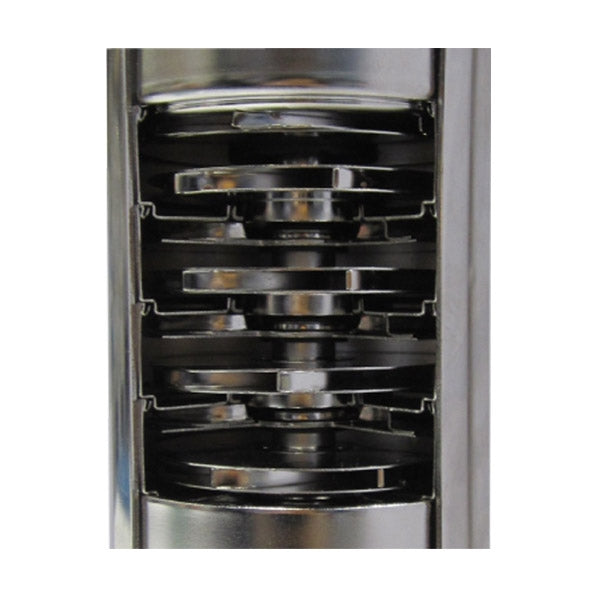

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance

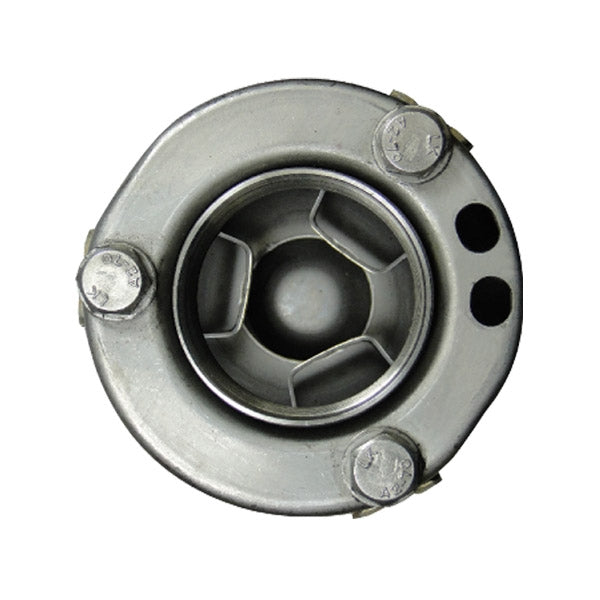

• Stainless steel strainer to restrict the entry of sand and other extraneous material

RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS

Goulds 7GS15 - Pearl 7G15 Compared To Goulds 7GS15 Submersible Pump
Goulds 7GS15CBM
Red Jacket 8S25
Myers ST15-8PLUS
Franklin Electric Schaefer 7SV15S4-PE
Franklin Electric Schaefer 7LD15S4-PE
Franklin Electric FPS 7FA15S4-PE
Franklin Electric FPS 7FV15S4-PE
Franklin Electric J-Class 7JS15S4-PE
Franklin Electric J-Class 7JV15S4-PE
