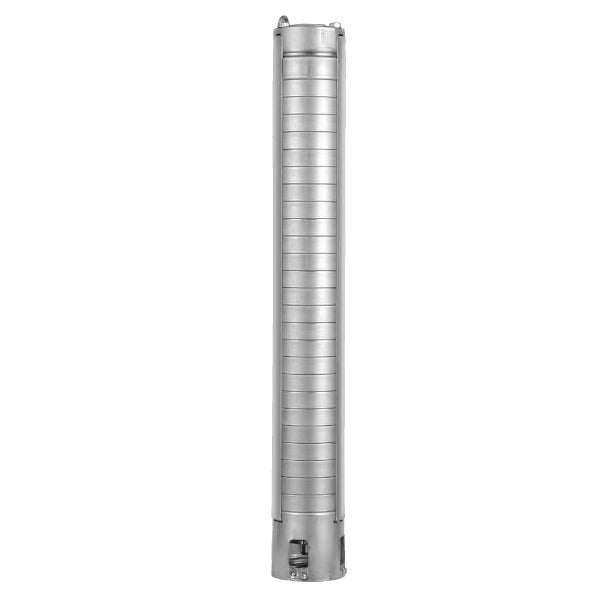

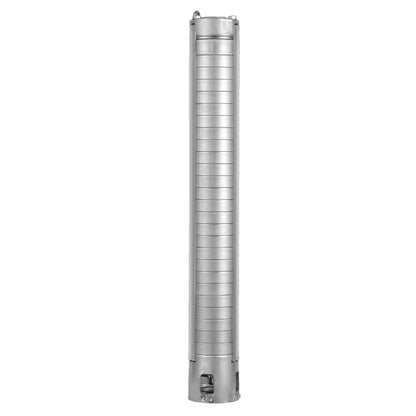

Pearl 4PWS-25G20 Submersible Pump End ( ONLY ) - ( 2 HP Rated ) - 25 GPM - Full Stainless Steel

• Manufacturer: Pearl
• Pump Series: 4PWS25G
• MPN: 4PWS-25G20
• Pump Type: 4" Submersible - Pump End Only

• Motor Horsepower Rated: 2 HP
NOTE: No Motor Included - Purchased Separately

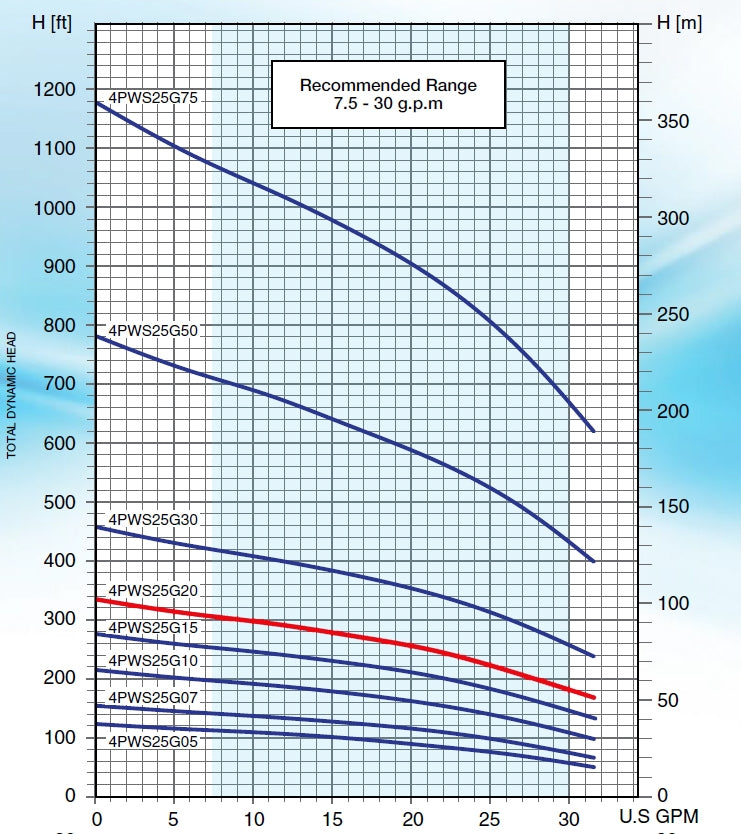

• Pump GPM Rating: 25 GPM

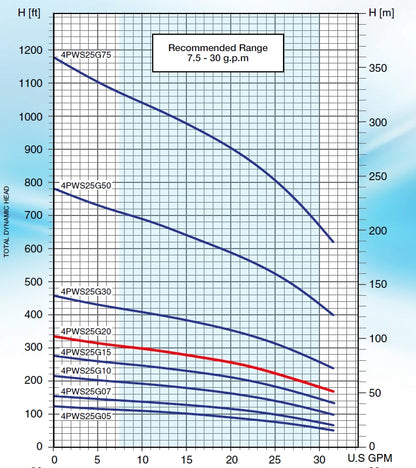

• Total Dynamic Head: 220 TDH

• Number of Stages: 11 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS25G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-25G20 - 4" Submersible Pump End ( ONLY ) - ( 2 HP Rated ) - 25 GPM

The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.

Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump

PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F

Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation

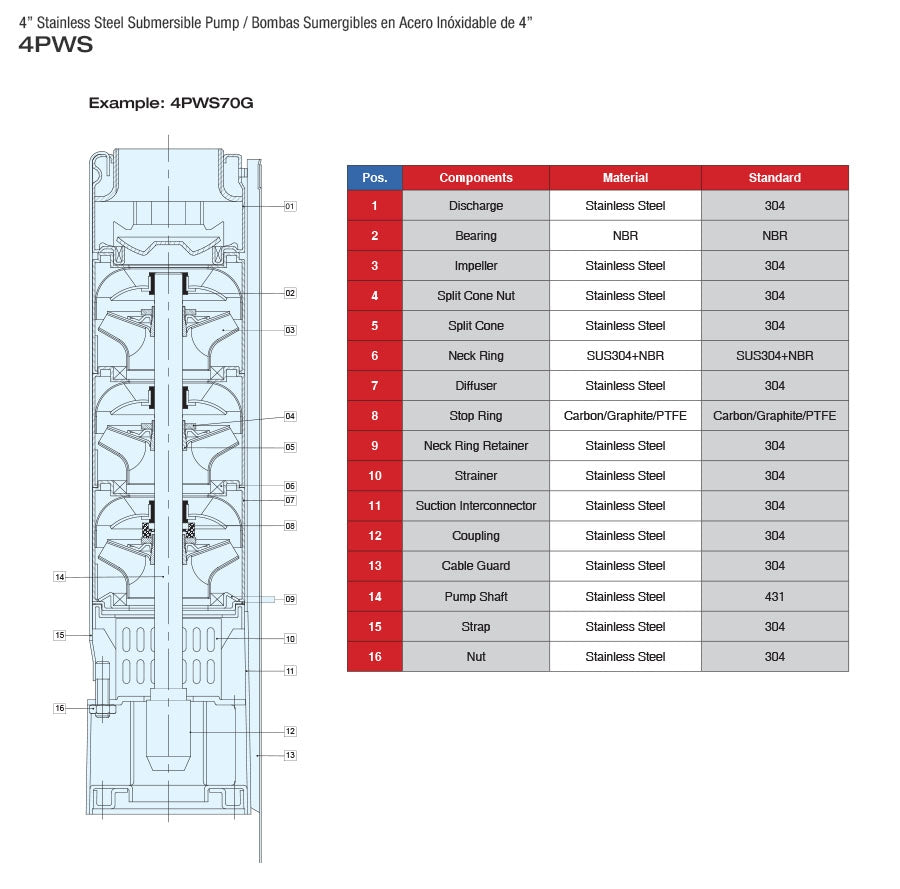

• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel

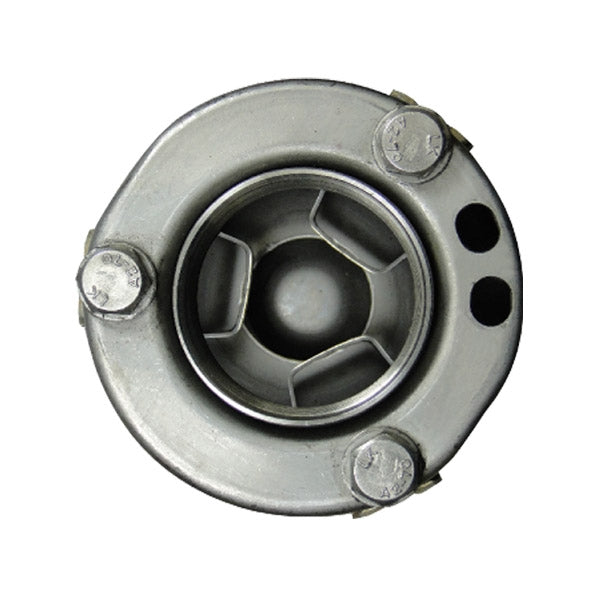

• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

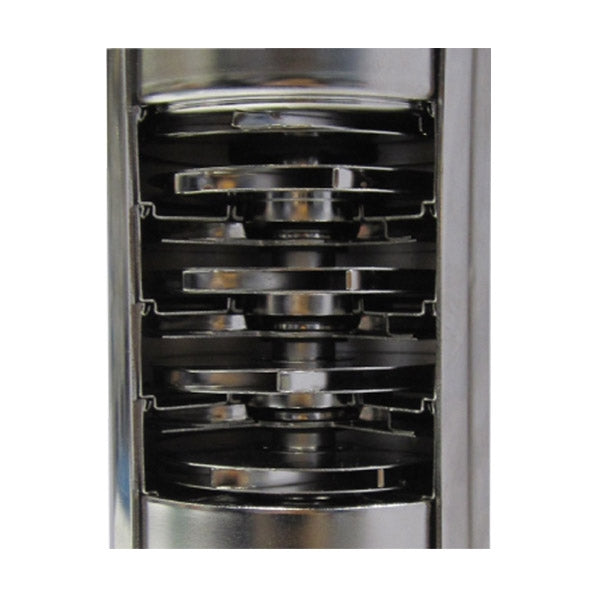

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material

RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS

Goulds 25GS20 - Pearl 25G20 Compared To Goulds 25GS20 Submersible Pump
Goulds 25GS20CBM
Red Jacket 25S12
Starite L30P4GH
Starite L20P4GH
Berkley L30P4GMGS
Berkley L20P4GMGS
Myers ST20-20PLUS
Franklin Electric Schaefer 25SV2S4-PE
Franklin Electric Schaefer 25LD2S4-PE
Franklin Electric FPS 25FA2S4-PE
Franklin Electric FPS 25FV2S4-PE
Franklin Electric J-Class 25JS2S4-PE
Franklin Electric J-Class 25JV2S4-PE
