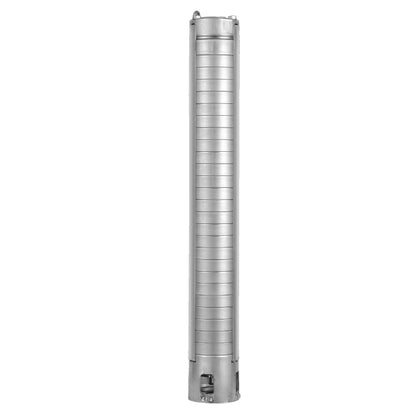

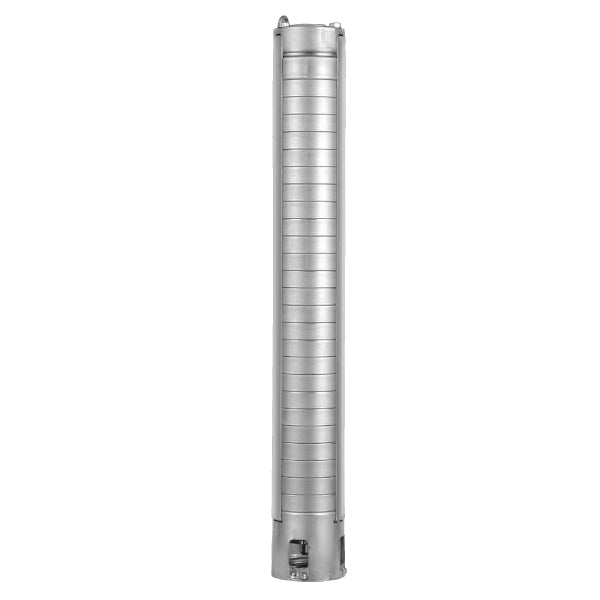

Pearl 4PWS-25G75 Submersible Pump End ( ONLY ) - ( 7-1/2 HP Rated ) - 25 GPM - Full Stainless Steel

• Manufacturer: Pearl
• Pump Series: 4PWS40G
• MPN: 4PWS-25G75
• Pump Type: 4" Submersible - Pump End Only

• Motor Horsepower Rated: 7-1/2 HP
NOTE: No Motor Included - Purchased Separately

• Pump GPM Rating: 25 GPM
• Total Dynamic Head: 800 TDH

• Number of Stages: 39 - Stages
• Pipe Connection: 1-1/4" NPT
• Check Valve: Yes - 304 SS
Pearl 4PWS25G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-25G75 - 4" Submersible Pump End ( ONLY ) - ( 7-1/2 HP Rated ) - 25 GPM

The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.

Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump

PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F

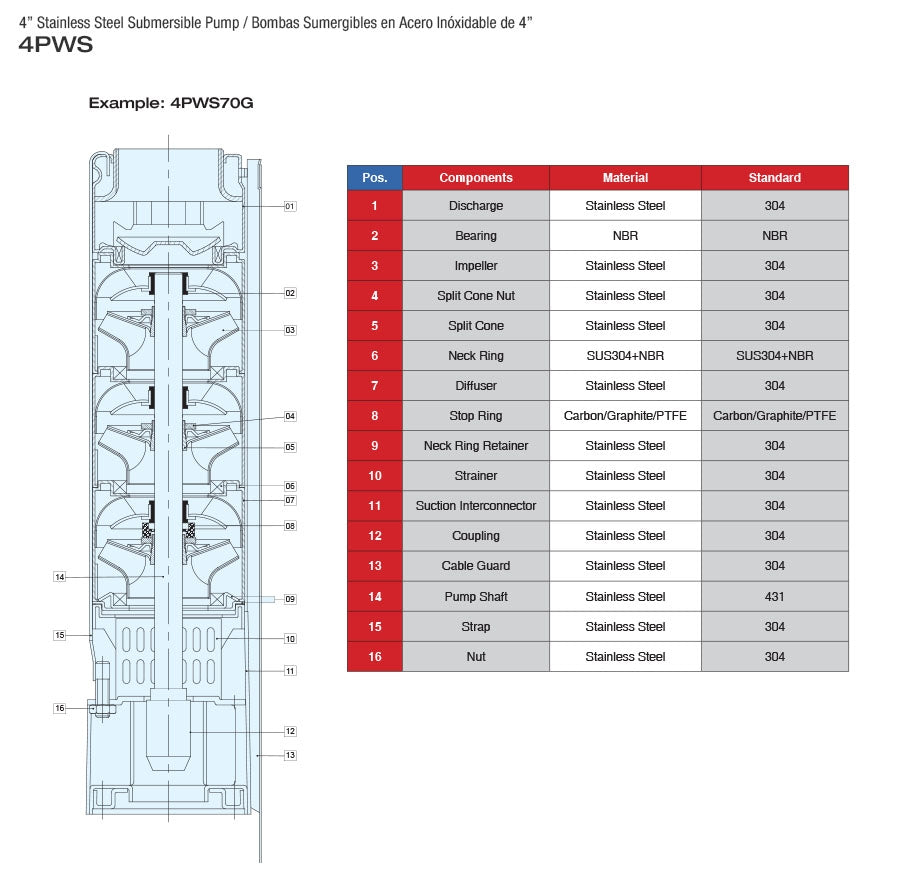

Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation
• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel

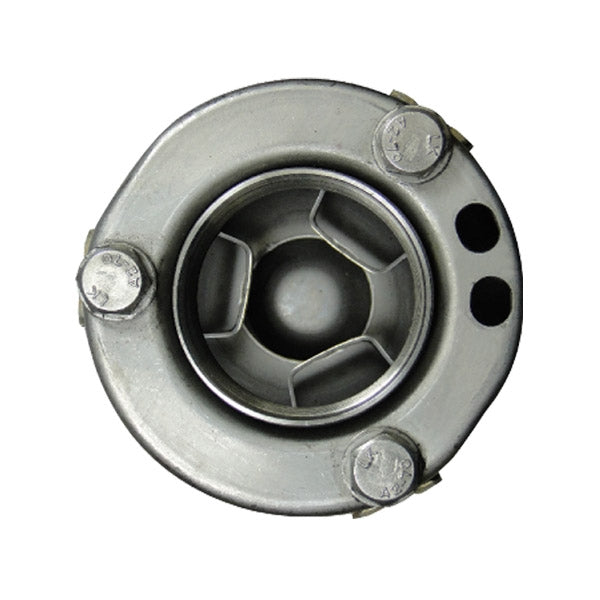

• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

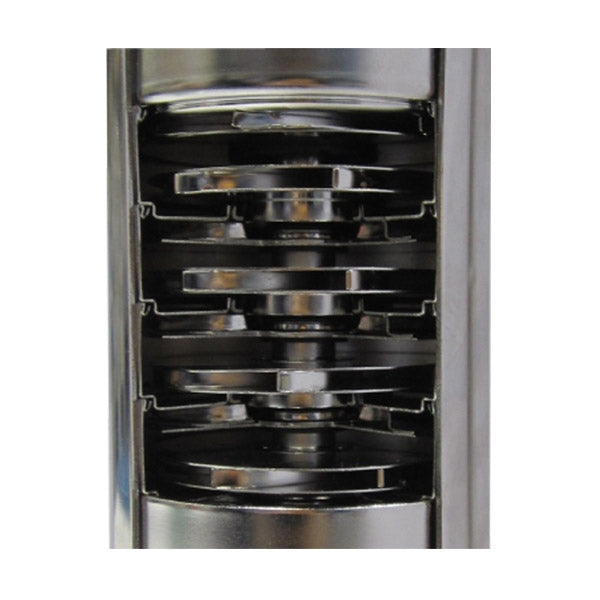

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material

RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS

Goulds 25GS75CBM- Pearl 25G75 Compared To Goulds 25GS75CBM Submersible Pump
Starite L30P4KH
Starite L20P4KH
Berkley 30MGS75-M
Berkley 20MGS75-M
Franklin Electric Schaefer 25SV7S4-PE
Franklin Electric Schaefer 25LD7S4-PE
Franklin Electric FPS 25FA7S4-PE
Franklin Electric FPS 25FV7S4-PE
Franklin Electric J-Class 25JS7S4-PE
Franklin Electric J-Class 25JV7S4-PE
