Pearl
Pearl 4PWS-70G30 High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 70 GPM - Full Stainless Steel
Pearl 4PWS-70G30 High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 70 GPM - Full Stainless Steel
Regular price
$1,529.28 USD
Regular price
$0.00 USD
Sale price
$1,529.28 USD
Quantity
Couldn't load pickup availability
• Manufacturer: Pearl
• Pump Series: 4PWS70G
• MPN: 4PWS-70G30

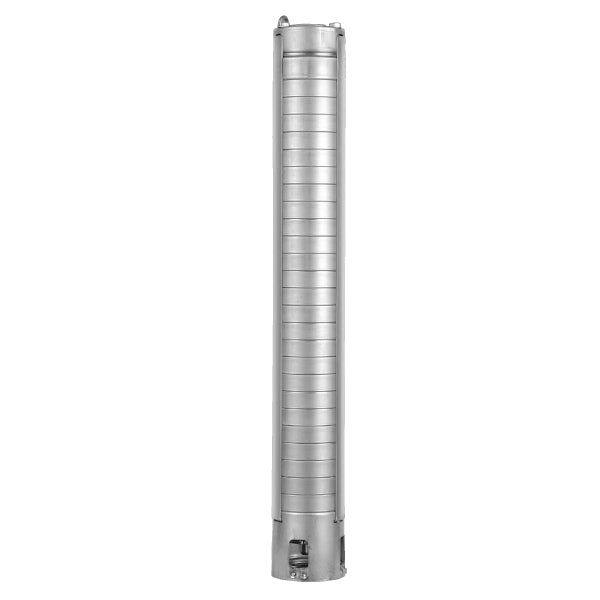

• Pump Type: 4" Submersible - Pump End Only
NOTE: No Motor Included - Purchased Separately
• Motor Horsepower Rated: 3 HP
• Pump GPM Rating: 70 GPM

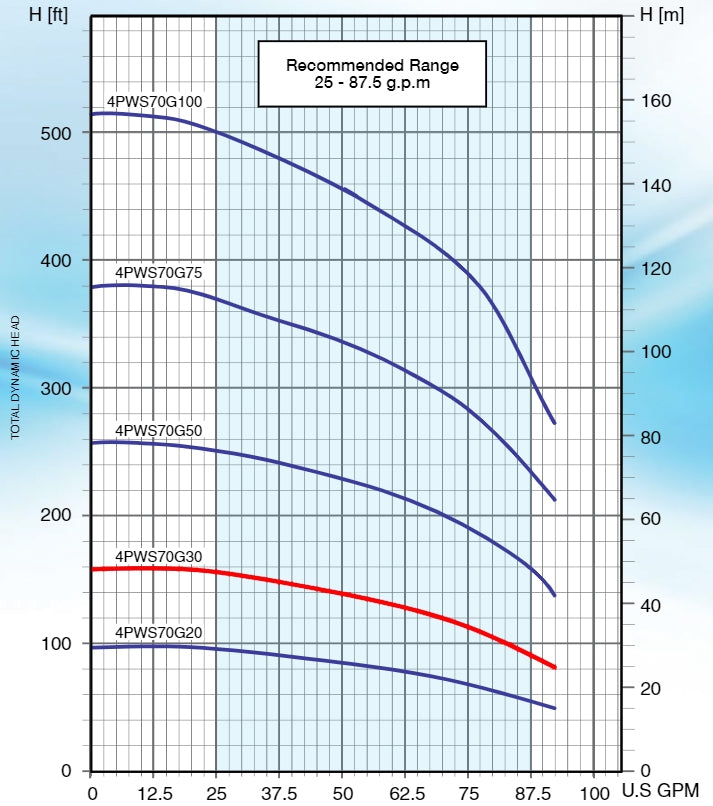

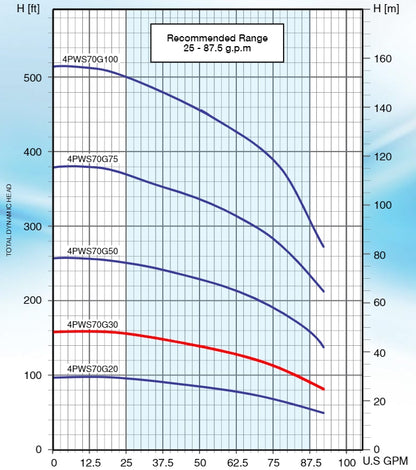

• Total Dynamic Head: 120 TDH
• Number of Stages: 5 - Stages
• Pipe Connection: 2" NPT
• Check Valve: YES - Stainless Steel
Pearl 4PWS70G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-70G30 High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 70 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F
Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation

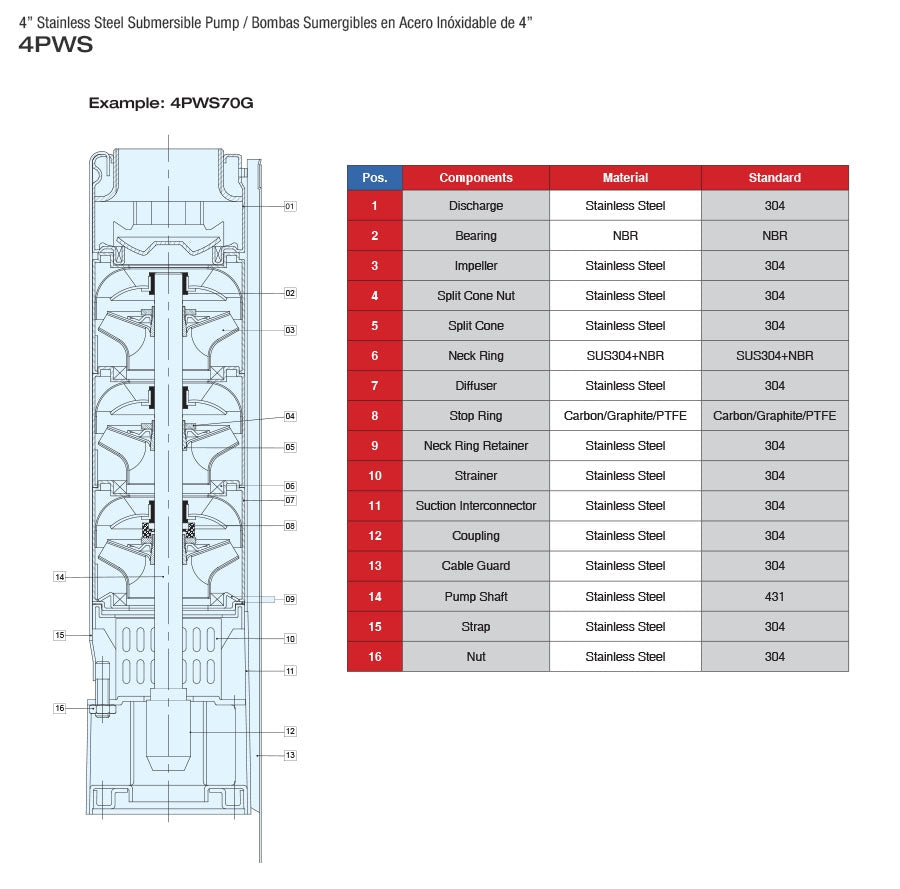

• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel

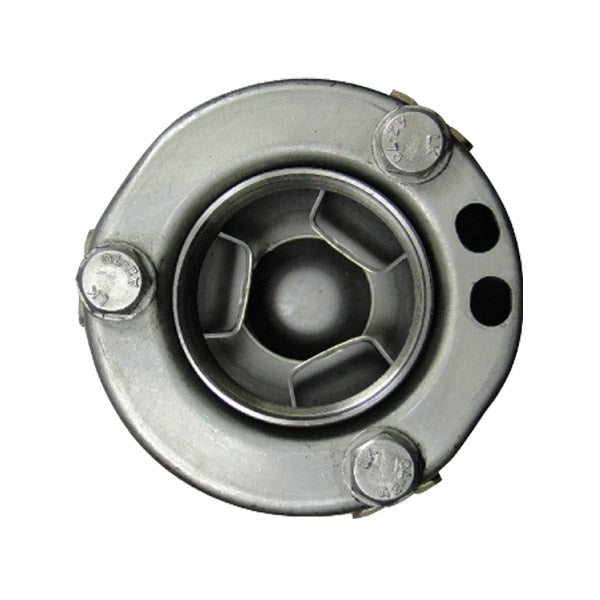

• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

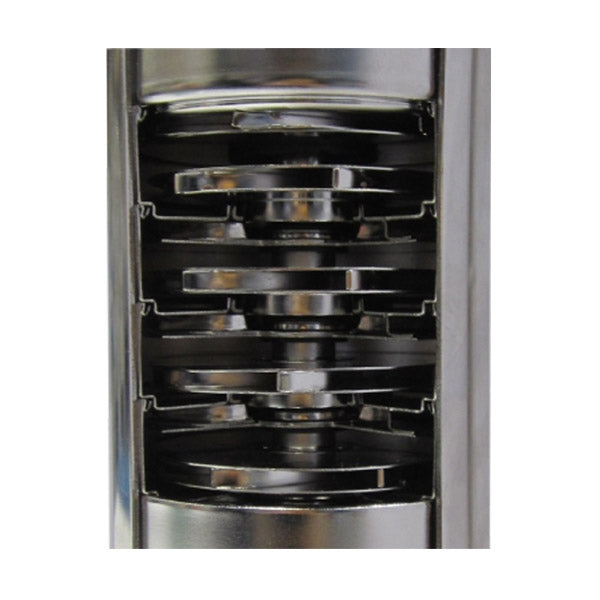

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
Goulds 75GS30 - Pearl 70G30 Compared To Goulds 75GS30 Submersible Pump
• Pump Series: 4PWS70G
• MPN: 4PWS-70G30

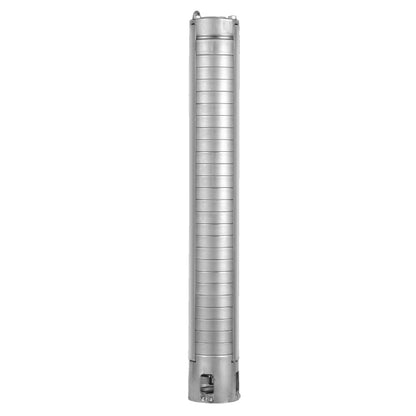

• Pump Type: 4" Submersible - Pump End Only
NOTE: No Motor Included - Purchased Separately
• Motor Horsepower Rated: 3 HP
• Pump GPM Rating: 70 GPM
• Total Dynamic Head: 120 TDH
• Number of Stages: 5 - Stages
• Pipe Connection: 2" NPT
• Check Valve: YES - Stainless Steel
Pearl 4PWS70G - All Stainless Steel Submersible Pump End (Only) Pearl 4PWS-70G30 High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 70 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F
Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation
• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel
• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance
• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS
Goulds 75GS30 - Pearl 70G30 Compared To Goulds 75GS30 Submersible Pump
Goulds 65GS30 - Pearl 70G30 Compared To Goulds 65GS30 Submersible Pump
Goulds 75GS30CBM
Franklin Electric 60FH3S4-PE
