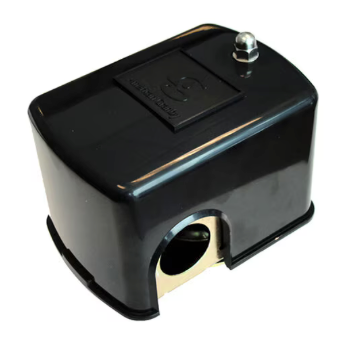

American Granby 40/60 Water Pump Pressure Switch

• Manufacturer: Square D
• MPN: 9013FSG2J24
• Product Series: Square D Pumptrol
• Product Type: Water Pump Pressure Switch
• Pressure Switch Range: 40 to 60 psi
• Adjustable PSI Range Adjustable: +/- 5 psi

Square D 40/60 Water Pump Pressure Switch - 9013FSG2J24

Square D Pumptrol Pressure Switches are the name brand choice for the professionals.

Specifications
Pressure sensor type: Electro-mechanical pressure switch
Controlled fluid: Fresh water (-22...257 °F)
Adjustable range on rising pressure: 20...65 psi
Approximate adjustable differential: 15...30 psi
Destruction pressure: 220 psi
Pressure actuator: Diaphragm
Pressure switch type of operation: Regulation between 2 thresholds
Scale type: Adjustable differential
Setting: Internal
Local display: Without
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Cable entry number: 2 0.88 in cable entries with 0.84 in across flats UL 508
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG / Screw-clamp terminals, clamping capacity: 5.261 mm²

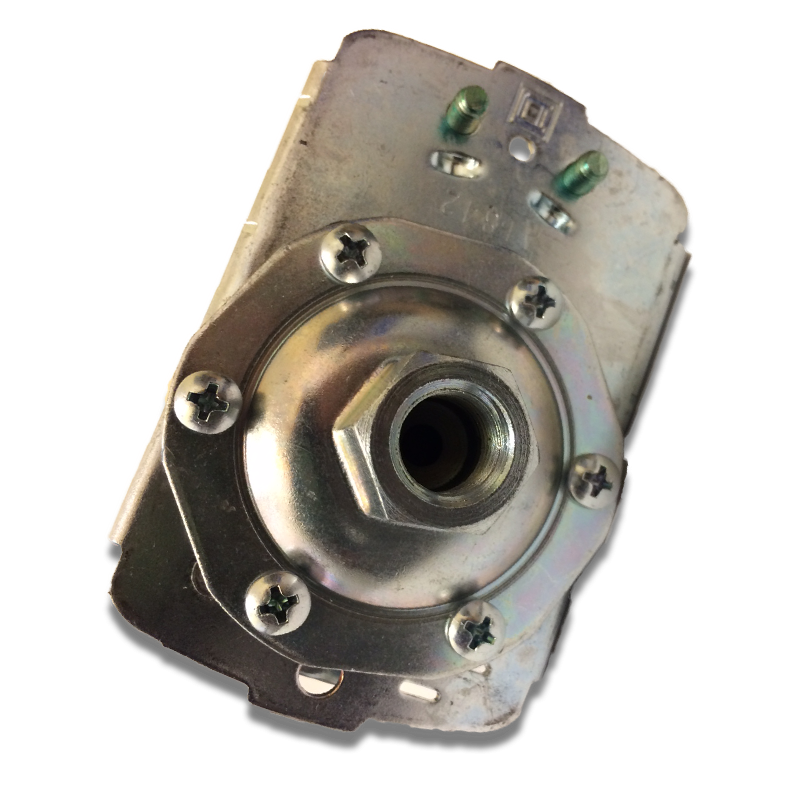

Fluid connection type: 0.25 inch NPSF internal conforming to UL 508
Short-circuit protection: 20 A by cartridge fuse, type gG
Materials in contact with fluid: Zinc plated steel or equivalent flange Nitrile (Buna-N) or equivalent rubber diaphragm
Material: Polypropylene cover Noryl thermoplastic resin or equivalent cover
Operating position: Any position
Motor power: kW1.5 kW (2 hp) at 230 V AC, 1 phase 1.1 kW (1.5 hp) at 115 V AC, 1 phase 1.5 kW (2 hp) at 115 V AC, 3 phases 2.2 kW (3 hp) at 230 V AC, 3 phases 0.75 kW (1 hp) at 460 V AC, 3 phases 0.75 kW (1 hp) at 575 V AC, 3 phases
Electrical durability: 100000 cycles at 10 cyc/mn
Mechanical durability: 300000 cycles

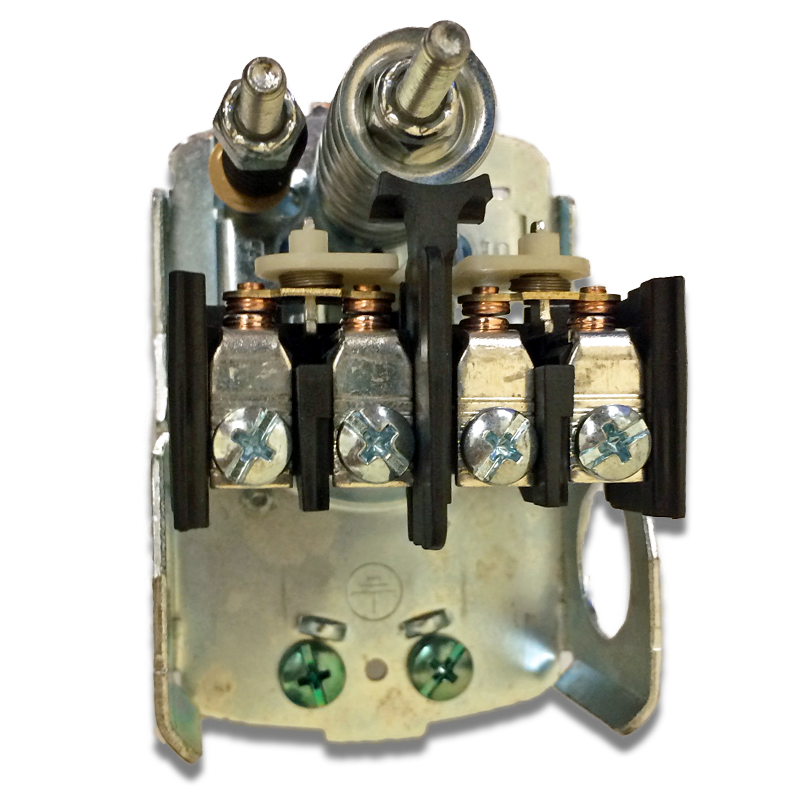

Terminal block type: 4 terminals
[Ui] rated insulation voltage: 575 V conforming to UL 508
Repeat accuracy: +/- 3 %
Terminals description ISO n°1: L1-T1 / L2-T2
