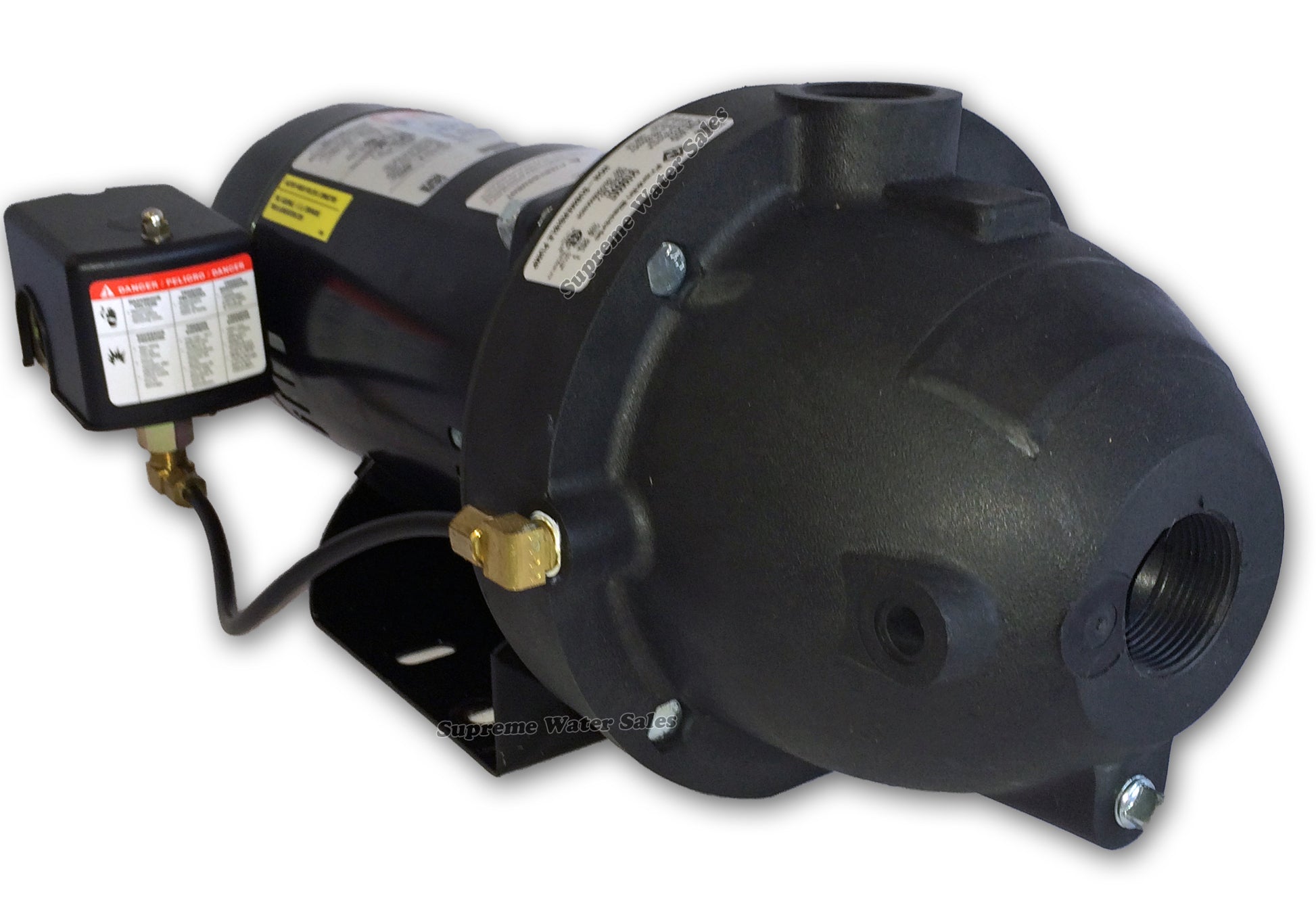

Franklin Electric FSWJ07P - Shallow Well Jet Pump - Corrosive Resistant - 0.75 HP

Franklin Electric FSWJ07P is a Non-corrosive thermoplastic construction allows the SWJ to be used in clean water installations without the fear of corrosion.
The Self cleaning injector screen provides an additional level of anti clogging for those turbid environments.

• Model: FSWJ07P (Replaces JClass JCY07P)
• 3/4 hp
• 115/230 volt
• Preset 30-50 pressure switch
• Shallow well application (Less than 25 ft)
• 1¼" NPT suction
• 1" NPT discharge
Franklin Electric FSWJ07P 3/4 HP Cyclone Series Shallow Well Jet Pump
Non-corrosive thermoplastic construction allows the SWJ to be used in clean water installations without the fear of corrosion. The Self cleaning injector screen provides an additional level of anti clogging for those turbid environments.

Standard Features of Cyclone Series Jet Pumps:
• Available in non-corrosive thermoplastic
• Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service
• Self cleaning, anti-clogging injector screen
• Thermoplastic impeller and diffuser ensure increased hydraulic performance
• Floating stainless steel eye seal for maximum performance and efficiency
• Square-flange mounting provides easy serviceability without disturbing the plumbing
• Built-in drain plug for easy winterizing and servicing
• Mechanical shaft seal allows positive protection against leaking
• Pressure switch is installed and set at 30/50 psi
• Handles water temperatures up to 120 °F and working pressure up to 75 psi
• Connections: 1” FNPT discharge / 1.25” FNPT suction
