Franklin Electric - 93669019 - Submersible Pump End ( ONLY ) - ( 7.5 HP Rated ) - 90 GPM

• Manufacturer: Franklin Electric
• Series: FPS / J-Class / Tri-Seal
• Model:90FH7S4-PECV
• SKU: 93669019
• Horsepower Rated: 7.5 HP ( No Motor - Pump End Only )
• Number of Stages: 19 - Stages
• Rated GPM: 90 GPM
• Total Dynamic Head: 250 TDH

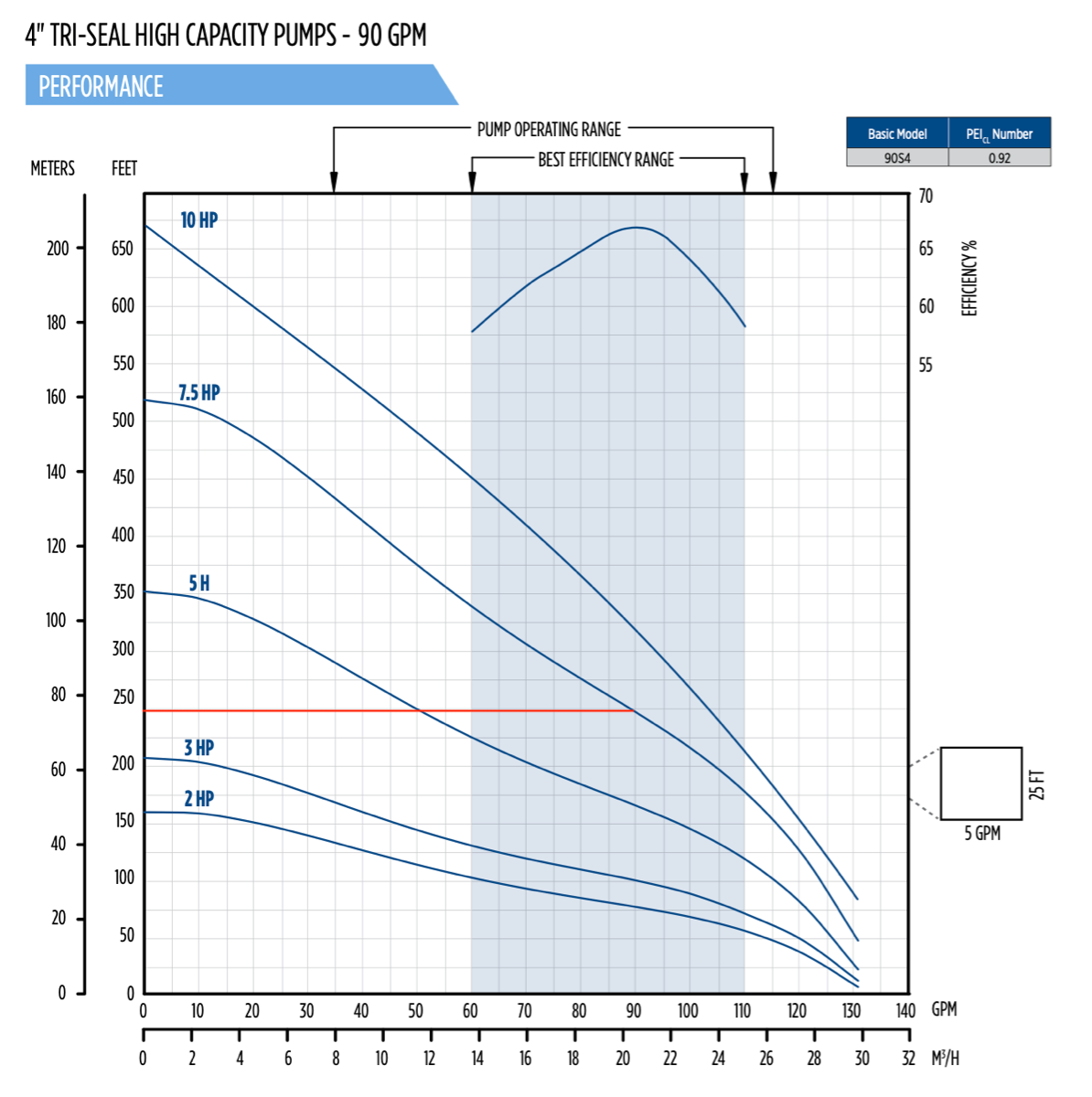

• Pump Operating Range: 35 GPM - 115 GPM
• Best Efficiency Range: 60 GPM - 110 GPM
• Length: 68.4 Inches
• Weight: 26 Lbs
• Discharge: 2" NPT
• Check Value: Yes

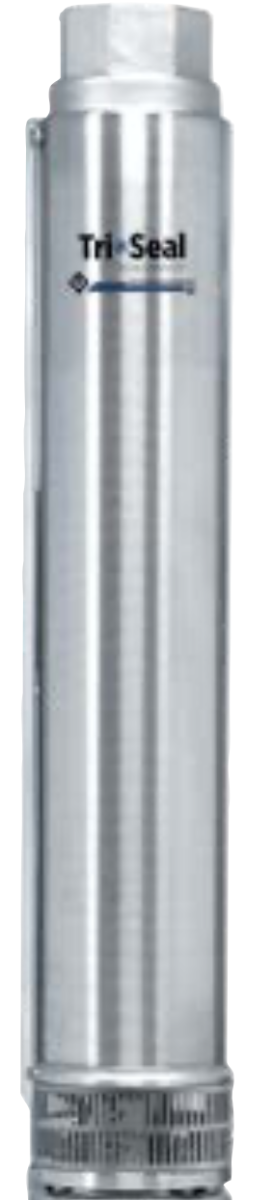

The Franklin High Capacity 4" submersible pumps are designed for commercial, irrigation, and home use and are available in multiple performance ranges.

Engineering and construction features both combine to reduce the efficiency losses caused by leakage within the pump or from pumping sand. Built for quality.

The floating eye and hub seals for improved performance and efficiency. The high flow impellers and stages are glass-filled Noryl for maximum efficiency.

• Stainless steel discharge head and motor bracket
• High flow impellers and stages are glass-filled modified PPO for maximum efficiency
• Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
• Intermediate bearing for increased shaft stability
• Floating eye and hub seals for improved performance and efficiency
• Stainless steel hex pump shaft, shell, and shaft coupling
• High capacity up thrust assembly for protection during start-up and operation (45, 60, and 90 gpm models)
• Recommended to be powered by Franklin’s corrosion-resistant 4" submersible motor (Not Included)
• Discharge: 2" NPT
• Check Value: Yes
