Berkeley Self Priming Centrifugal Irrigation Sprinkler Pump - Model 15LTHH - 1.5HP
Berkeley Self Priming Centrifugal Irrigation Sprinkler Pump - Model 15LTHH - 1.5HP
SKU:Berkeley_15LTHH
Couldn't load pickup availability

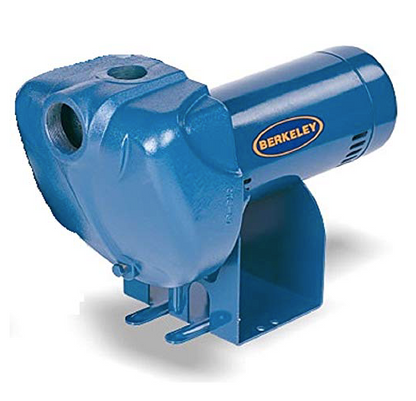

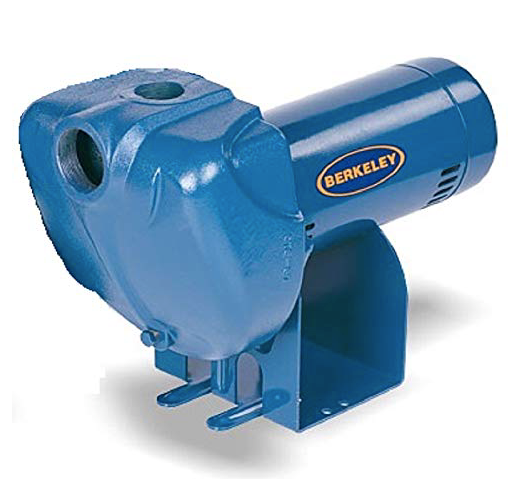

The Berkeley 15LTHH is a 1.5 HP self-priming centrifugal irrigation pump from the LTHH high head series, with a cast iron body and Noryl impeller.
Not sure it fits? Call (866) 202-8388 and we will confirm the right part.
Specifications
| Brand | Berkeley |
|---|---|
| Model | 15LTHH |
| Horsepower | 1.5 HP |
| Phase / voltage | Single phase, 115 / 230 V |
| Suction / discharge | 2" / 1-1/2" |
| Body | Cast iron, corrosion treated |
| Impeller | Noryl |
| Diffuser | Reinforced polypropylene, multi-port |
Fits / Replaces
- Lawn and sprinkler irrigation
- Replaces a Berkeley 15LTHH or similar 1.5 HP self-priming pump
- More options: irrigation pumps
Install & Use Notes
Fill the pump before the first start. Wearing parts can be serviced without disturbing the piping. Use the drain port to winterize. See the manual and brochure below.
Frequently Asked Questions
Is the 15LTHH self-priming?
Yes.
What pipe sizes?
2" suction and 1-1/2" discharge.
What voltage?
115 / 230 V single phase.
Full Product Details
• Manufacturer: Berkeley
• Motor HP: 1.5 HP
• Motor Phase: 1ph
• Voltage: 115/230 Volt
• Pipe Tapping Sizes: 2" Suction, 1-1/2" Discharge
• Rugged Construction – Close- grained cast iron body, specially treated for corrosion resistance.
• Noryl Impeller – Precision-molded for perfect balance... ultra-smooth for highest performance and efficiency.
• Precision Molded Diffuser – Pump primes faster, handles more air,
with multi-port, precision-molded, reinforced polypropylene diffuser.

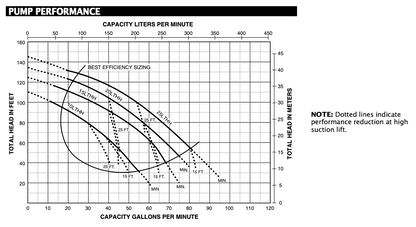

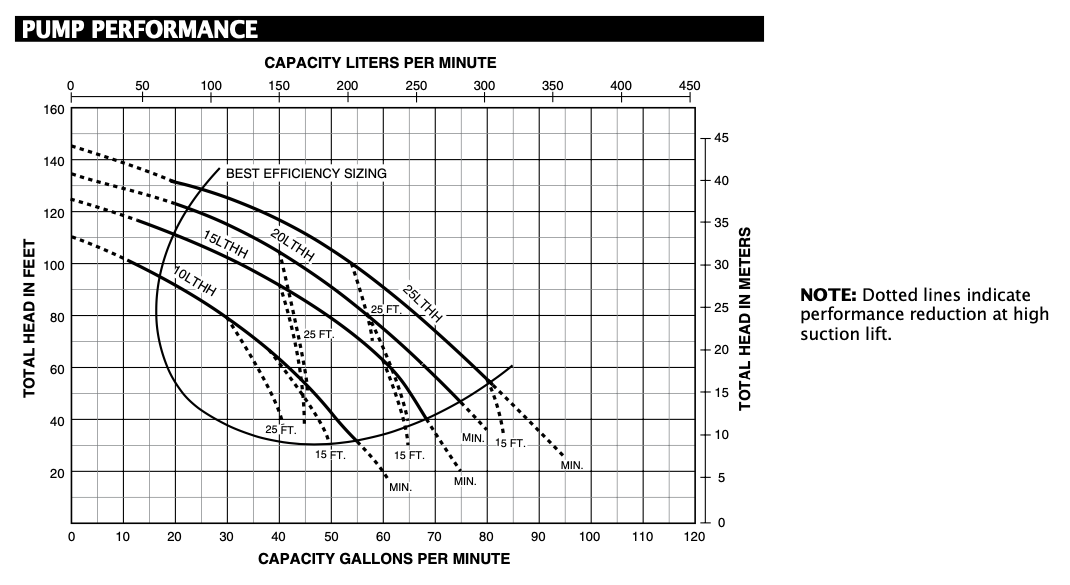

• High Head Models – Deliver up to 145’ of head with capacities to 895 GPM.
• Easy Serviceability – Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting.
• Motor Windings – Superior insulation materials protect against excessive moisture and contaminants... ensures prolonged motor life.
• Balanced Rotor – Die cast under high pressures for uniform perfor- mance and greater efficiency, dynamically balanced.
• Drain Port – Provided for easy winterizing.
Berkeley LTHH Manual.pdf
