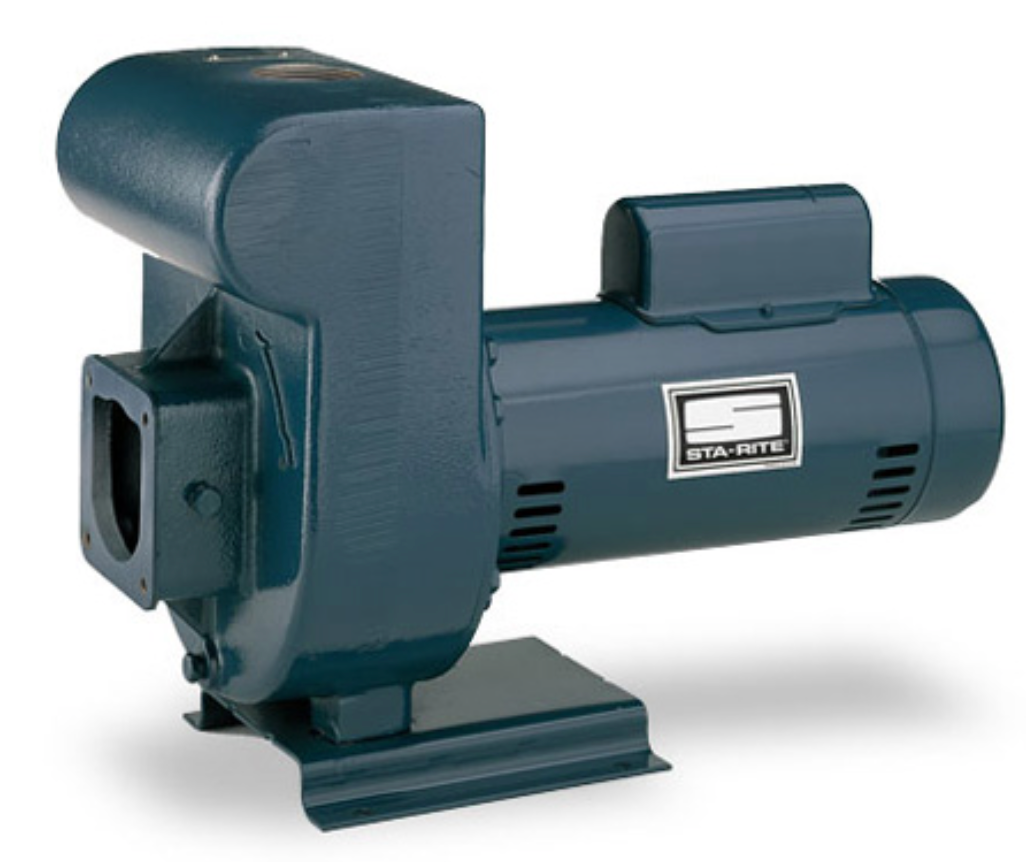

DHJ-170 - Sta-Rite Self Priming Centrifugal Pump - 5HP - 230V

• Manufacturer: Pentair
• Brand: StaRite
• Series: DHJ
• MPN: DHJ-170
• Horsepower: 5 HP
• Voltage: 230v
• Pipe Connections: 2" NPT ( Inlet ) / 2" NPT ( Outlet )
• Dimensions: 22" (L) x 14" (H) x 10.0" (W)
• Weight: 184 Lbs

Sta-Rite D Series High Head Self-Priming Centrifugal Pump

Built with a rugged construction and heavy duty motor, this fast-priming pump has an easy service design and air volume control tapping.

Note: suction flange PKG 72 (sold separately) is required to match pump for attachment with NPT pipe.

Features:

• Drain port provided for easy winterizing
• Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting
• Heavy-duty motor designed for continuous operation
• Capacitor start will not cause electrical interference with TV or other appliances

Applications:

• Lawn sprinkling…operate from 1 to 30 or more heads.
• Can be safely operated by timer or other automatic device
• Contractors…for dewatering excavation, jetting, water transfer and supply operations
• Agriculture…seed bed and plot irrigation, stock watering, fire protection Industrial…sump drainage, fire protection, marine pumping, liquid transfer and supply operations

SPECIFICATIONS

Body and Base: Close-grained cast iron
Impeller: Noryl thermoplastic on 1 through 2-1/2 HP, bronze on 3HP and 5 HP
Diffuser: Cast iron
Shaft: 1 through 2-1/2 HP: 416 stainless steel; 3HP and 5 HP: Carbon steel inside removable shaft sleeve of stainless steel.
