Franklin Electric 2261128020 - 6-Inch Submersible Motor - 10 HP - 230 Volt - 1-Phase

Franklin Electric 2343178602 - 6-Inch High-Thrust Super Stainless Motor Specifications
■ 10 hp
■ 3-Wire (Will need a control box to operate)
■ 230 volt
■ 60 Hz
■ Single Phase
■ 3450 RPM
■ Continuous Duty Rated
■ Kilowatts Rating: 3.7 KW
■ Service Factor: 1.15
■ Weight 141 lbs

PLEASE NOTE: This item is for a motor - only - not a complete submersible pump

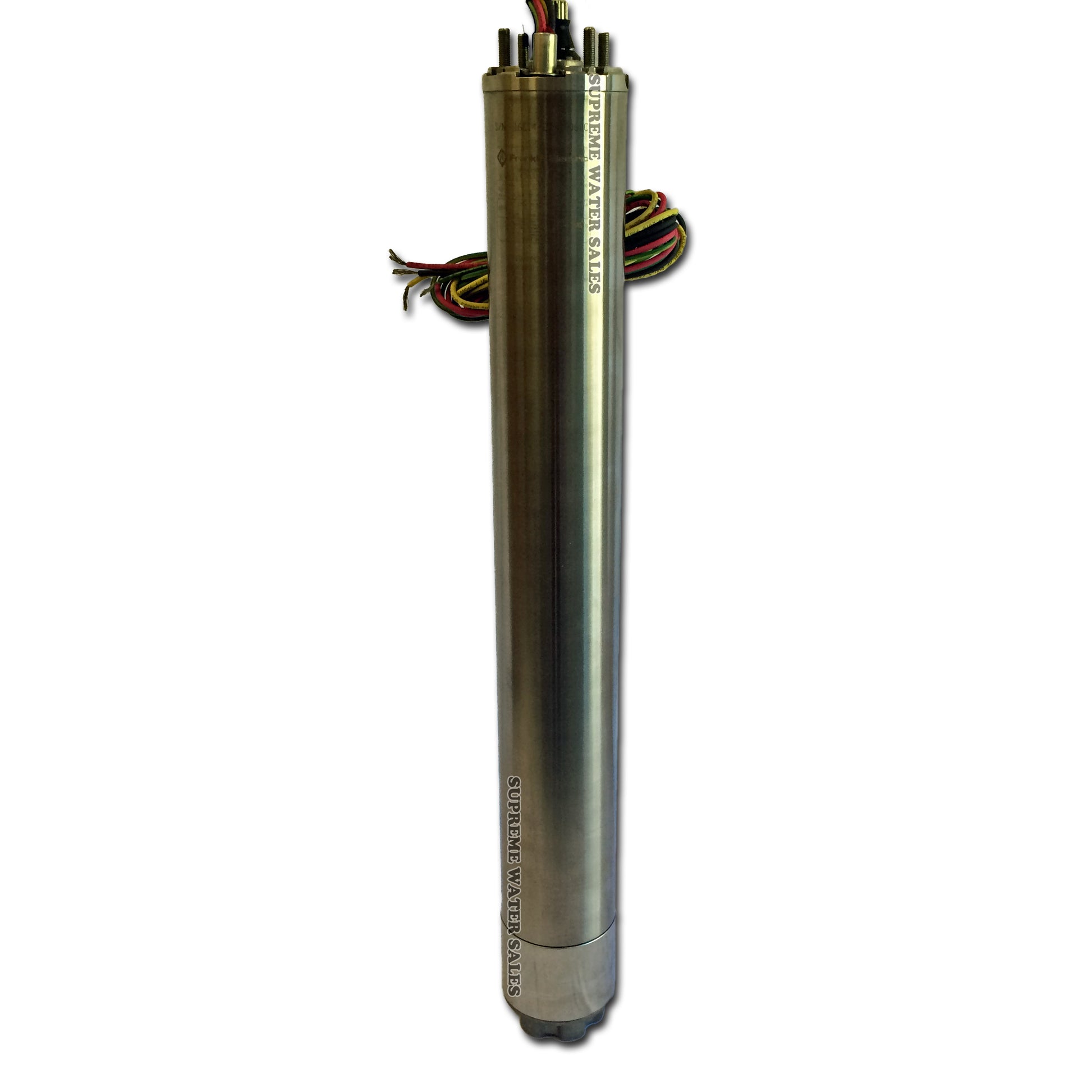

Franklin Electric 2261128020 - 10 HP Submersible Motor

Applications - These motors are built for dependable operation in 6” diameter or larger water wells. Basic / General Information for Motor Features
■ Corrosion-resistant stainless steel exterior
■ Stainless steel splined shaft
■ Hermetically-sealed windings
■ StatorShield™ resin system
■ Filter check valve
■ Water lubrication
■ Kingsbury-type thrust bearing
■ Pressure-equalizing diaphragm
■ Built-in lightning arrestors (All single-phase; 200 & 300 V three-phase)
■ Removable water bloc lead
■ Franklin-manufactured control boxes available for single-phase motors
■ UL 778 recognized (North American voltages)
■ CSA certifi ed
■ ANSI/NSF 61 certified
■ Industry standard NEMA mounting dimensions Special Features for Franklin Electric Motors
■ Flow inducer sleeve not required in water up to 86 °F (30 °C) for motors through 2 hp.
■ Two-wire motors are split-phase designs with integral starting components and do not require a control box. They feature Franklin’s patented 2-wire BIAC starting switch which provides Reverse Impact Torque to aid starting in adverse environments and prevents extreme fast cycling (e.g. water logged tank).
■ Three-wire motors through 1 hp use Franklin’s exclusive three-wire QD (Quick Disconnect) Control Box with the patented QD Relay. This relay provides the ultimate in operational life.
■ Single-phase motors can be used with Pumptec products to protect against dry-run and other installation conditions that can damage motors and/or pumps. See Single-phase Protection Devices for details. Constant Pressure Options available for Franklin Electric Motors
■ Use Franklin’s MonoDrive controller with 11⁄2 hp three-wire single-phase motors to provide constant water pressure.
■ Three-phase motors can be used with SubDrive controllers to provide constant water pressure.
