Watts Filter housing, 4.5 x 20 - big blue sump - 1 inch in/out, with bracket w/ wrench

Full-Flow Residential Blue Filter Housing with Black Cap.
Manufacturer: Watts
Connection Size1 inch inlet/outlet Ports
Height 24 in
Diameter 7-1/4 in
Cartridge Diameter 4-1/2 in
Cartridge Length 20 in

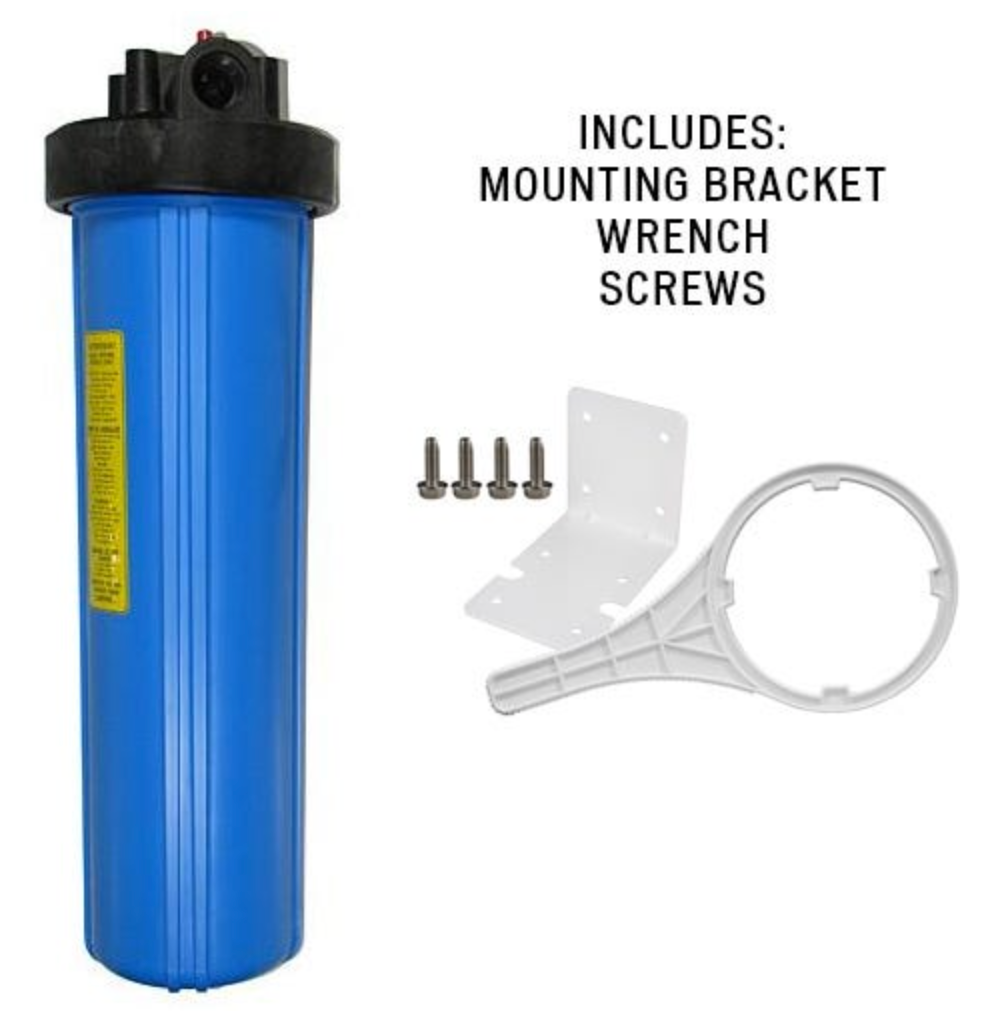

Comes complete with mounting bracket, screws and wrench

Watts 20" Large Water Filter Housing (Watts FH10BL1PR) is an extra-wide filter housing that accommodates all large 20" x 4 1/2" Full Flow water filter cartridges. Made of durable, reinforced polypropylene that is resistant to a variety of chemicals.

Topping the housing off is a high-flow black polypropylene cap with a 1" female pipe thread port that allows water to pass through rapidly.

The thick side walls and buttress thread design allows for superior sealing and security. This along with the already larger filter capacity makes large housings a popular choice for high flow whole house applications.

Watts FH10BL1PR - 20" Full Flow Water Filter Housing Specifications:
Max. Press.: 125 PSI
Connection: 1" FPT/FNPT
Temp. Range: 40 - 125 F
Dimensions: Approx. 24" x 7 1/4"
Flow Rate: Varies according to the filter cartridge used
Compatibility: Nearly all 20" length x 4.5" diameter filters
Materials: Made from FDA grade polypropylene (ANSI/NSF 42 Certified)
