Engineered with contractors’ needs in mind, Challenger well tanks deliver CAD-2 technology (Flexcon’s famous controlled action diaphragm system) at a very affordable price. Challenger is equipped with a high grade steel water connection and our patented water chamber! In short, you get superior air and water separation, incredible durability, and unmatched performance all at an unbeatable price.
Flexcon Industries
Flexcon Challenger 81 Gallon - Cold Rolled Steel Well Tank - PC244FR - Ask for Details
Flexcon Challenger 81 Gallon - Cold Rolled Steel Well Tank - PC244FR - Ask for Details
SKU:Flexcon_Challenger_PC244FR
Regular price
$2,719.00 USD
Regular price
$0.00 USD
Sale price
$2,719.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

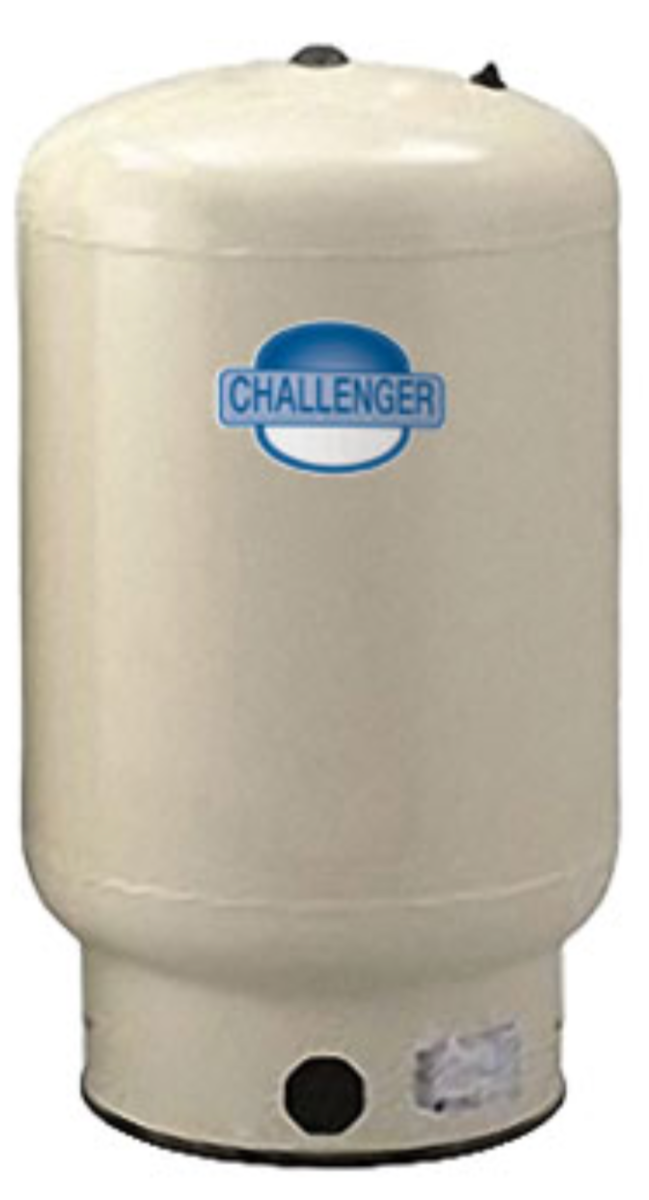

Flexcon Challenger PC244FR (PC244R) 81 Gal Well Pressure Tank - Quick Facts
- Also known as: PC244R
- Capacity: 81 gallons
- Height: 62"
- Diameter: 21"
- Dimensions: 21" × 21" × 62"
- Weight: 99 lbs (empty)
- Connection: 1-1/4" FPT
- Other specs: 125 psi max, 140°F max, NSF/ANSI 61, pre-charge 38 psi
Need help matching your model? Call (866) 202-8388 and we will confirm the right part.
The Flexcon Challenger PC244FR (also sold as PC244R) is an 81-gallon diaphragm well pressure tank for larger homes and high-demand well systems. A bigger tank means fewer pump starts, steadier pressure and longer pump life.
Usually ships within 1-2 business days. Ship times can vary with supplier stock; call (866) 202-8388 to confirm before you order.
Specifications
| Brand | Flexcon Industries |
|---|---|
| Model | Challenger PC244FR (PC244R) |
| Capacity | 81 gallons |
| Dimensions | 62" H x 21" diameter |
| Connection | 1-1/4" FPT, welded steel |
| Max pressure | 125 psi |
| Max temperature | 140°F |
| Factory pre-charge | 38 psi |
| Weight | 99 lbs (empty) |
| Certification | NSF/ANSI 61 |
| Construction | 16 ga cold rolled steel, almond finish, CAD-2 diaphragm, brass air valve |
Fits / Replaces
- Replaces Flexcon PC244R / PC244
- Residential and light commercial well systems
- Upgrades from a smaller pressure tank
Install & Use Notes
Set the pre-charge 2 psi below your pump cut-in pressure with the tank empty (for example 38 psi for a 40/60 switch). Check it yearly. The finish is rated for indoor and outdoor installs. See the data sheet and installation sheet below.
Frequently Asked Questions
Is the PC244FR the same as the PC244R?
Yes, it is the same 81-gallon Challenger tank and is also searched as PC244R.
How big is it?
About 62" tall and 21" in diameter, with a 1-1/4" connection.
What is it pre-charged to?
38 psi from the factory. Adjust it to 2 psi below your pump cut-in.
Can it go outside?
Yes. The almond finish is rated for indoor and outdoor installation.
Full Product Details
High-Capacity Pressure Tank for Maximum System Performance
The Flexcon Challenger PC244FR (81 Gallon) is built for high-demand residential and light commercial well systems that require consistent pressure, reduced pump cycling, and long-term reliability.
⚠️ Undersized tanks are one of the leading causes of pump failure and inconsistent water pressure.
This tank is designed to protect your pump and handle higher water demand with ease.
QUICK BENEFITS
✔ Large 81-gallon capacity for high-demand systems
✔ Reduces pump cycling → extends pump lifespan
✔ Maintains consistent pressure across multiple fixtures
✔ Heavy-duty diaphragm design (CAD-2 technology)
✔ Outdoor-rated FR coating for durability in harsh environments
IS THIS THE RIGHT TANK FOR YOU?
Best for:
- 3–5+ bathroom homes
- High water usage households
- Irrigation + home combined systems
- Upgrading from smaller pressure tanks
Not ideal for:
- Small homes (overkill)
- Low-demand systems
📞 Not sure? Call 866-202-8388 — we’ll size it correctly for your system
👉 Getting the wrong size can cost you thousands in pump damage.
⚠️ BEFORE YOU BUY
Buying a large pressure tank online isn’t just about price.
- Incorrect sizing can cause short cycling and pump failure
- Improper installation planning can lead to space or plumbing issues
- Large tanks are more prone to shipping damage if not handled properly
✔ We help ensure you get the right tank, delivered safely, and ready to install
WHY BUY FROM SUPREME WATER SALES?
✔ Trusted supplier since 2007
✔ Real system guidance — not just order processing
✔ Speak to a human (no bots, no runaround)
✔ We help match tank size to your pump + system
👉 Avoid costly mistakes — we’ll help you get it right the first time
SYSTEM PERFORMANCE BENEFITS
A properly sized tank like the PC244FR will:
- Reduce pump starts significantly
- Extend pump life
- Improve pressure stability across the home
- Handle higher simultaneous water usage
👉 This isn’t just a tank — it’s system protection.
WHY THIS MATTERS
Running an undersized or failing tank can:
- Burn out your pump prematurely
- Cause fluctuating water pressure
- Increase energy costs
👉 Upgrading now can prevent a much larger repair later.
CALL TODAY!
👉 Upgrade your system performance and protect your investment today
📞 Questions? Call 866-202-8388 — we’ll walk you through it.

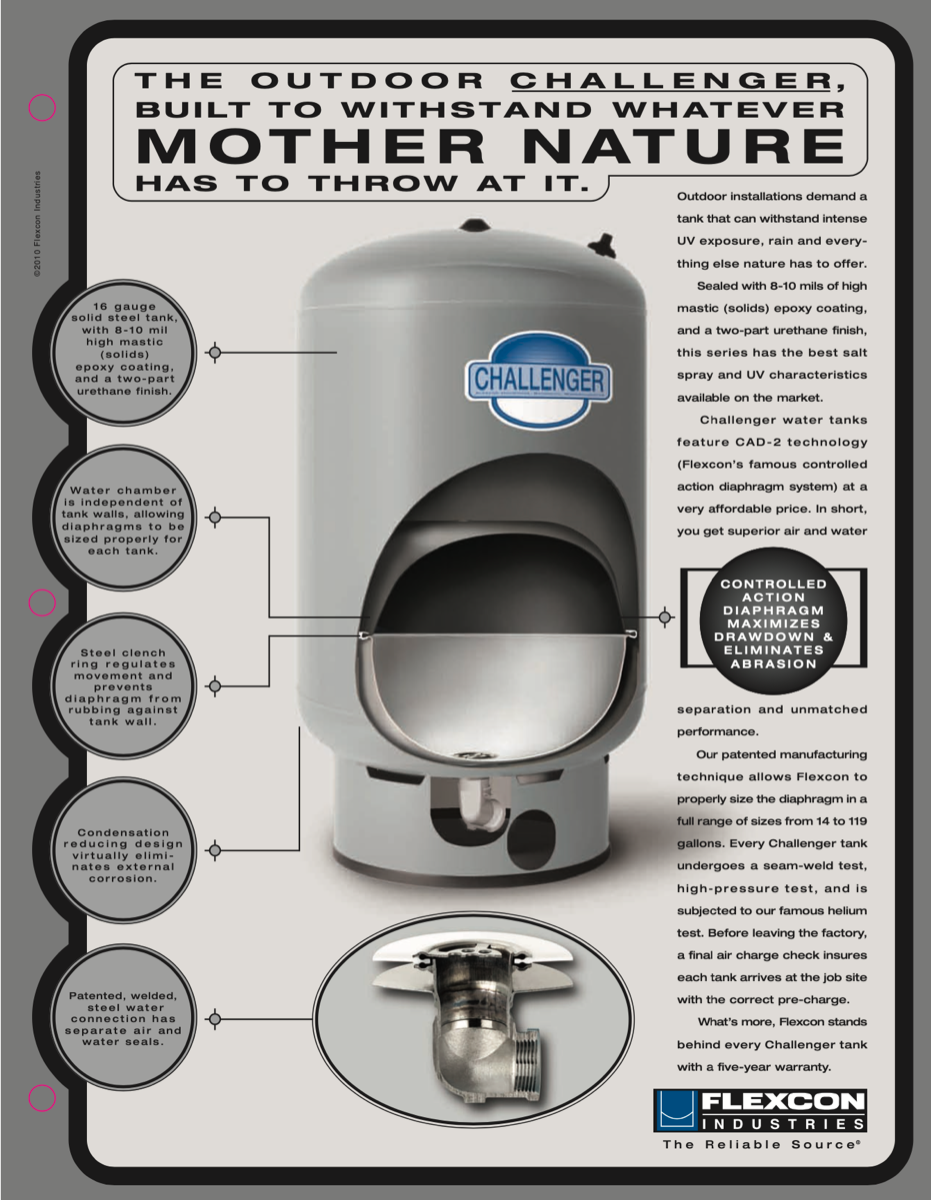

Challenger Series
Standard Features: Tank: 16 gauge cold rolled steel Finish: Almond appliance grade paint for both indoor and outdoor installation Water Chambers: Top chamber is blended butyl rubber, lower water chamber is copolymer polypropylene. Connection: Welded steel NPT thread Air valve: Brass valve with O-ring seal
FLEXCON PC244R Installation Sheet
Specifications:
• Size: 81 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 62" (H) x 21"(D)
• Inlet Connection: 1.25"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• ANSI / NSF Standard 61 Approved
• Actual Weight: 99 lbs
• Dimension Shipping Weight: 120
