Flexcon PJR15 - Jet Rite 2 - Pressure Tank - 4.8 gallon - Cold Rolled Steel

Flexcon PJR15 - Jet Rite 2 - Pressure Tank - 4.8 gallon - Cold Rolled Steel

Flexcon_jetrite_tank_PJR15

$474.95 USD
$0.00 USD $474.95 USD
Sale Sold out
Shipping calculated at checkout.

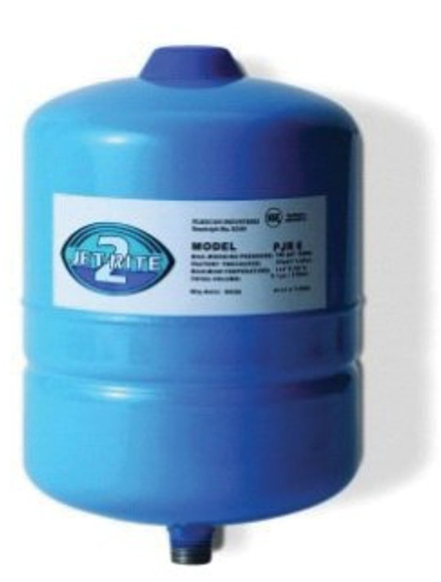

The Flexcon Jet-Rite 2 PJR15 is a 4.8 gallon diaphragm well pressure tank. It stores water under pressure so your pump starts less often, which steadies household pressure and helps the pump last longer.

Not sure it fits? Call (866) 202-8388 and we will confirm the right part.

Specifications

Brand Flexcon Industries
Model Jet-Rite 2 PJR15
Capacity 4.8 gallon
Dimensions 15" H x 11" diameter
Connection 3/4" stainless steel
Max pressure 125 psi
Max temperature 140°F
Certification NSF/ANSI 61
Construction 16 ga cold rolled steel, butyl / polypropylene water chamber, brass air valve

Fits / Replaces

Install & Use Notes

Set the air pre-charge about 2 psi below your pump cut-in pressure with the tank empty (28 psi for a 30/50 switch, 38 psi for 40/60), and check it yearly. Install it close to the pressure switch, on a level base, in a spot that stays above freezing.

Frequently Asked Questions

What size connection does the Jet-Rite 2 PJR15 have?
3/4" stainless steel.

Is it safe for drinking water?
Yes. It is NSF/ANSI 61 approved.

What pressure should the tank be set to?
About 2 psi below your pump cut-in pressure, set with the tank empty.

What is the maximum pressure?
125 psi.

Full Product Details

• Size: 4.8 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 15" (H) x 11 "(D)
• Inlet Connection: 0.75"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• Tank: 16 gauge Steel
• ANSI / NSF Standard 61 Approved
• Weight: 15 lbs

JET-RITE 2 Series

MATERIALS OF CONSTRUCTION

Finish is high quality paint for indoor or outdoor installation.

  • Tank: cold rolled steel - 16 gauge
  • Appliance-quality paint finish for indoor or outdoor installation
  • 100% butyl rubber, virgin polypropylene liner water chambers
  • Stainless steel connection
  • High pressure, seam weld, helium, final precharge check testing
  • Brass valve with o-ring seal air valve
  • Drawn steel with polyurethane finish shell

Flexcon_Industries_PJR6_Specification_Sheet

Specifications:
• Size: 4.8 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 15" (H) x 11"(D)
• Inlet Connection: 0.75"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• ANSI / NSF Standard 61 Approved
• Actual Weight: 15 lbs
