Flexcon Industries
Flexcon Poly-Carbonate Well Pressure Tank Flex-Lite - FL12 - 35 Gallons - Ask for Details
Flexcon Poly-Carbonate Well Pressure Tank Flex-Lite - FL12 - 35 Gallons - Ask for Details
SKU:Flexcon_FL-12
Couldn't load pickup availability

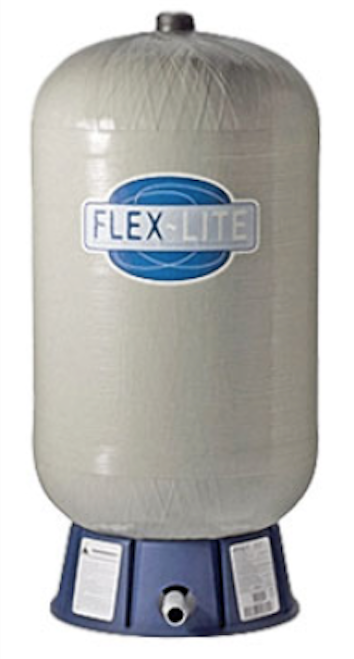

The Flexcon Flex-Lite FL12 is a 35 gallon diaphragm well pressure tank. It stores water under pressure so your pump starts less often, which steadies household pressure and helps the pump last longer.
Not sure it fits? Call (866) 202-8388 and we will confirm the right part.
Specifications
| Brand | Flexcon Industries |
|---|---|
| Model | Flex-Lite FL12 |
| Capacity | 35 gallon |
| Dimensions | 48.9" H x 16.5" diameter |
| Connection | 1" PVC |
| Max pressure | 125 psi |
| Max temperature | 140°F |
| Certification | NSF/ANSI 61 |
| Construction | Fiberglass-reinforced composite, epoxy sealed; suitable for underground installation |
| Weight | 34 lbs |
Fits / Replaces
- Residential well systems with jet or submersible pumps
- Replaces a similar-size well pressure tank
- Not sure what size you need? See our pressure tank sizing guide or all pressure tanks
Install & Use Notes
Set the air pre-charge about 2 psi below your pump cut-in pressure with the tank empty (28 psi for a 30/50 switch, 38 psi for 40/60), and check it yearly. Install it close to the pressure switch, on a level base, in a spot that stays above freezing.
Frequently Asked Questions
What size connection does the Flex-Lite FL12 have?
1" PVC.
Is it safe for drinking water?
Yes. It is NSF/ANSI 61 approved.
What pressure should the tank be set to?
About 2 psi below your pump cut-in pressure, set with the tank empty.
What is the maximum pressure?
125 psi.
Full Product Details
If you are looking for the proven performance of a traditional steel tank, but in a lighter weight, more modern composite design is the best option - Ask us for details on this tank.
• Manufacturer: Flexcon Industries
• 35 Gallon Pressure Tank
• Dimensions: 48.9" (H) x 16.5"(D)
• Inlet Connection: 1"
• Actual Weight: 34 lbs
• Dimension Shipping Weight: 81.0
Standard Features:
• Precision injection molded domes for uniform wall thickness provide uniform strength across the entire upper and lower dome
• Composite material is reinforced with durable, continuous strand fiberglass and sealed from the environment with weather resistant epoxy resin thus making it suitable for underground installation
• Utilizing a spin welding process, the upper and lower domes are permanently fused to the extruded cylinder center section
• Tank’s water chamber to be optimally sized for the drawdown capacity of each tank • Includes a sturdy base engineered to withstand maximum weight loads and diverse environmental conditions
• Water connections are standard PVC for easy installation and a lifetime of trouble free performance
