Flow-Max FMPIC-90-5-HT - Jumbo 90 - Phenolic Impregnated Cellulose - 5 Micron

• Manufacturer: Watts
• Brand: Flow-Max
• MPN: FMPIC-90-5-HT
• Filter Type: Jumbo Filter Cartridges
• Filter Media: Phenolic Impregnated Cellulose
• Used For: Sediment Filtration in Hot Water, Oil, Solvents or Fuel
• Used With Housings: FMJCH90 Flow-Max Model 90 - or - HUR 90 HP Harmsco® HP Hurricane®
• Filter Size: 7-3/4” x 19-1/2"
• Micron Rating: 5 Micron
• Flow Rate: 100 GPM

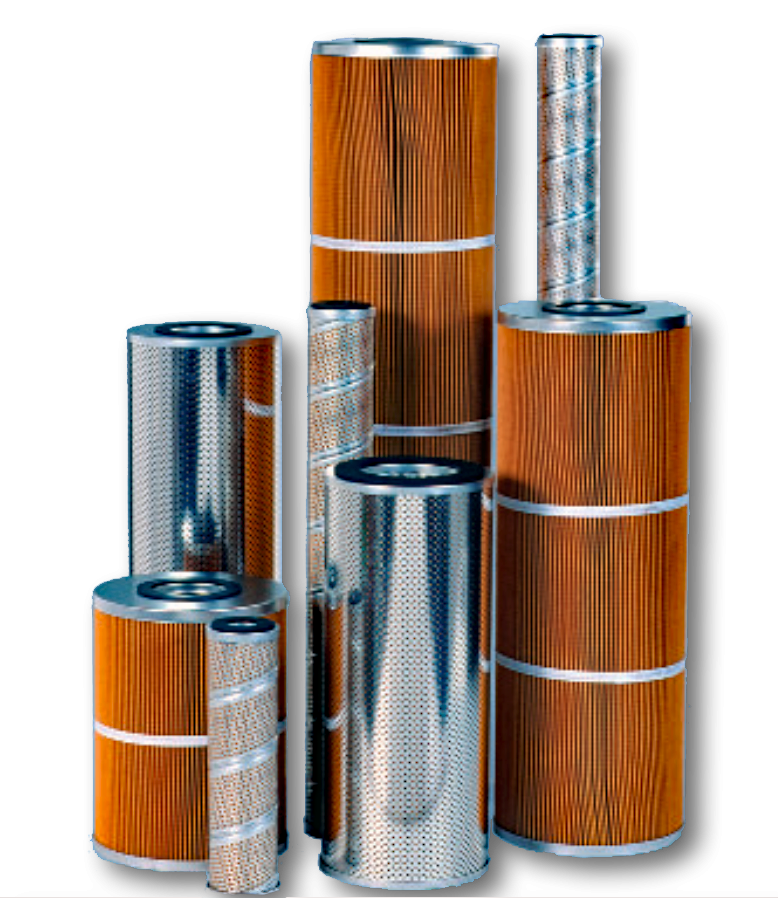

Flow-Max Phenolic Impregnated Cellulose CartridgesSpecifically Designed for Industrial Hot Water & Non-Aqueous ApplicationsApplications for Flow-Max Phenolic Impregnated Cellulose Cartridges
• High Temperature Industrial Water Filtration
• Lubricating Oil
• Cutting Fluids
• Solvents
• Distillate Fuel
• Fuel Oil
• Hydraulic Fluids
NOTE: Not For Use in Potable Water SystemsFilter Specifications / Operating Data
• Maximum temperature: 250 ̊F (121 ̊C)
• Minimum temperature: -20 ̊F (-29 ̊C)
• Maximum pressure: 70 PSID (482 k PA)
• Recommended change out: 25 PSID (172 k PA)
• Media: Phenolic impregnated cellulose
• End caps, cores, outer body: Electroplated Tin

NOTE: Phenolic impregnated cellulose cartridges are not cleanable or reusable
