Franklin Electric

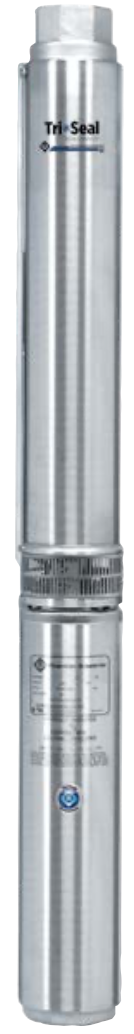

Franklin Electric 10JV1S4-2W230 Submersible Pump - Stainless Steel - 10 GPM - 1HP - 230 Volts ( 2 Wires + Ground ) - 95221020

Franklin Electric 10JV1S4-2W230 Submersible Pump - Stainless Steel - 10 GPM - 1HP - 230 Volts ( 2 Wires + Ground ) - 95221020

95221020

$2,123.34 USD
$0.00 USD $2,123.34 USD
Sale Sold out
• Manufacturer: Franklin Electric
• Brand: J-Class
• Model: Series V
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Model Number:10JV1S4-2W230
• Order Number: 95221020
• Motor Horsepower: 1 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 2-Wire Motor
• Motor Lead: 3-Wires ( L1 / L2 / Ground )

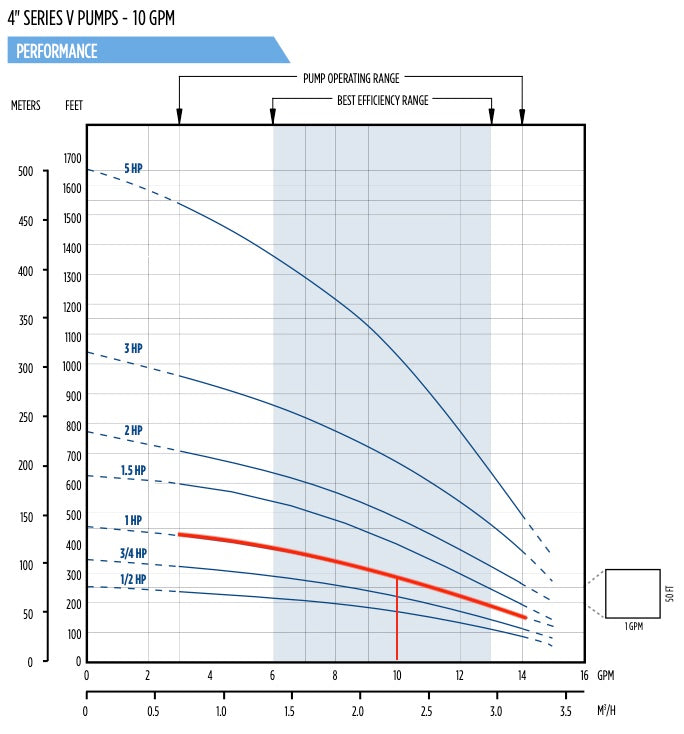

• Pump GPM Rated: 10 GPM
• Pump Stages: 11 Stages
• Most Efficent TDH: 300 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )
• Total Length: 22.58"
• Total Weight: 35 Lbs

Standard Features of Series V Submersible Pumps • The Franklin Electric J-Class Series V is a complete 4" submersible pump that features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives • Discharge head and motor bracket produced with industry proven, engineered materials. • Large wrench flat area on the discharge head for ease of installation • Dry run designed top bearing positively supports the 300 series stainless steel 7/16" hex shaft • Removable internal check valve • Powered by Franklin Electric corrosion resistant super stainless 4" submersible motors with lightning protection • Maximum water temperature with proper flow is 120 °F
