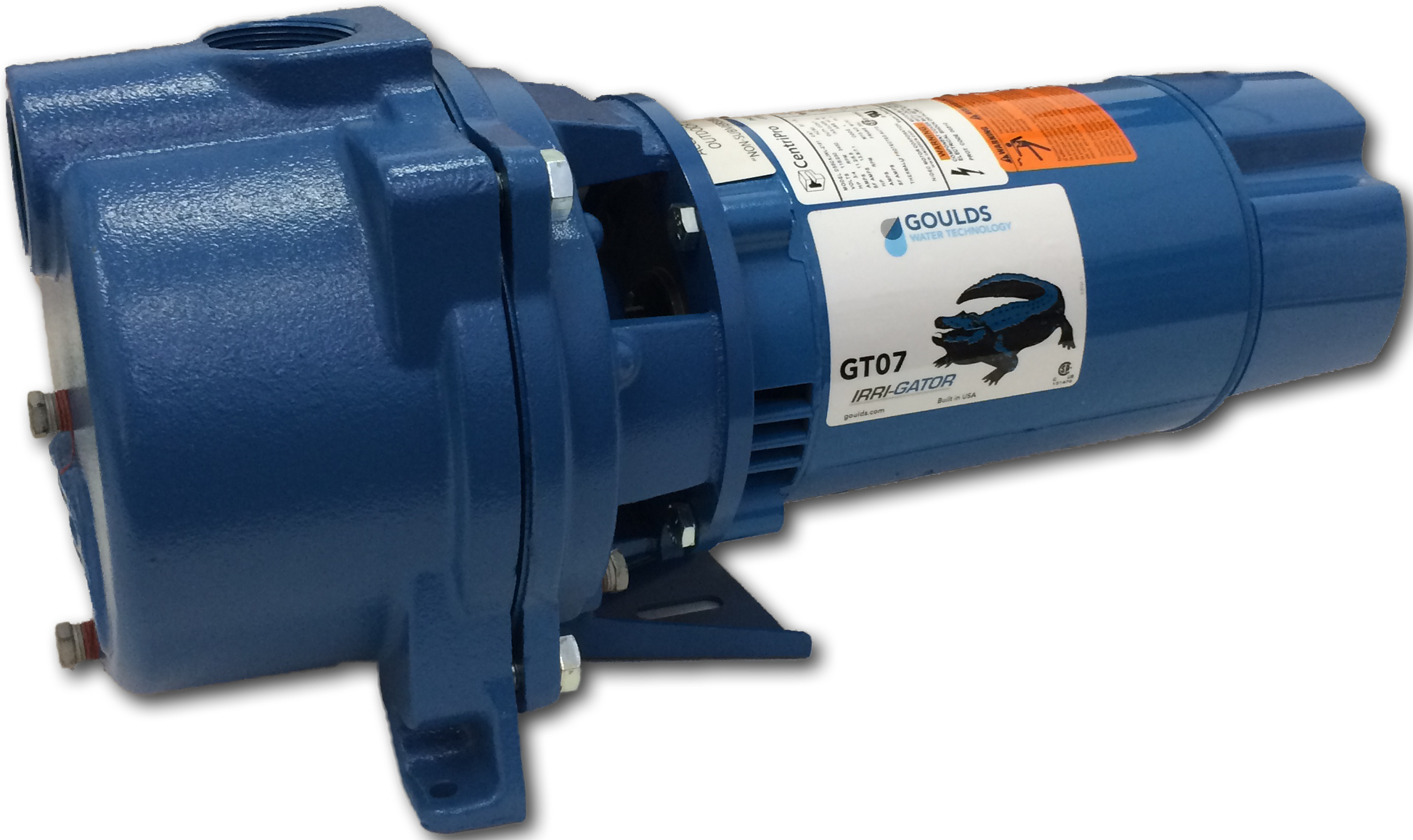

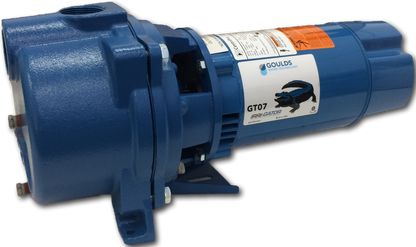

Goulds Pump GT07 Centrifugal Irrigation Pump - 115/230V - 3/4 HP
Goulds Pump GT07 Centrifugal Irrigation Pump - 115/230V - 3/4 HP
Regular price
$577.45 USD
Regular price
$0.00 USD
Sale price
$577.45 USD
Quantity
Couldn't load pickup availability
• Manufacturer: Goulds
• Brand: Xylem
• Series: GT Irri-Gator Series
• MPN: GT07
• Product Type: Centrifugal Pump
• Product Best Use For: Transfer / Irrigation Pump
• Horsepower: 3/4 HP
• Dual Voltage: 115 / 230 V
• Pipe Connections: 1-1/2" FNPT (Inlet) / 1-1/2" FNPT (Outlet)
• Optimum TDH Range: 70 to 80 TDH
• Optimum PSI Range: 30 to 35 psi
• Optimum Flow Rate: 30 to 40 GPM
Standard Features of Goulds GT07 Series Pumps
• Self Priming design - Once initially primed pump is capable of reprime
• Field Serviceable - Back pull out design for easy serving
• Strong and Durable cast iron casing design
• Electro-Coat paint process for corrosion resistance
• Excellent corrosion and abrasion resistance materials Lexan® Guidevane
• Noryl® Impeller
• 1½” NPT Suction and Discharge connections
Application / Use Options
• Lawn / Irrigation / Sprinkler Systems
• Heat pumps
• Water transfer
• Air conditioning systems
• Dewatering
Goulds GT Series Centrifugal Irrigator Pump - SpecificationsImpeller: Glass-filled, abrasion resistant engineered composite
Casing: Cast iron, 4-bolt, back pullout design. Openings for vacuum gauge and casing drain.
Motor Powered for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working limits. Can be operated continuously without damage. ( Only with Water in Housing )
Mechanical Seal: Carbon/ceramic faces, Buna elastomers. 300 series stainless steel metal parts. Diaphragm prevents the seal from running dry.
Pump End:
• Pipe Connections: 1½” NPT ( Suction & Discharge )
• Max Suction Lift: 25 feet
• Maximum water temperature: 140° F (60° C)
• Maximum working pressure: 125 psi
• Rotation: clockwise when viewed from motor end.
Motor Specifications:
• NEW STYLE - Motors - Wide Body - 56J - Manufactured by US Motors
• NEMA standard open drip proof
• 60 Hz, 3500 rpm
• Stainless steel shaft
• Single phase
• Built-in overload with automatic reset
• Motor Voltage Options: 115V / 230V ( 3/4 HP to 1-1/2 HP ) & 230V ONLY ( 2 HP and Above )
• Brand: Xylem
• Series: GT Irri-Gator Series
• MPN: GT07
• Product Type: Centrifugal Pump
• Product Best Use For: Transfer / Irrigation Pump
• Horsepower: 3/4 HP
• Dual Voltage: 115 / 230 V
• Pipe Connections: 1-1/2" FNPT (Inlet) / 1-1/2" FNPT (Outlet)
• Optimum TDH Range: 70 to 80 TDH
• Optimum PSI Range: 30 to 35 psi
• Optimum Flow Rate: 30 to 40 GPM
Standard Features of Goulds GT07 Series Pumps
• Self Priming design - Once initially primed pump is capable of reprime
• Field Serviceable - Back pull out design for easy serving
• Strong and Durable cast iron casing design
• Electro-Coat paint process for corrosion resistance
• Excellent corrosion and abrasion resistance materials Lexan® Guidevane
• Noryl® Impeller
• 1½” NPT Suction and Discharge connections
Application / Use Options
• Lawn / Irrigation / Sprinkler Systems
• Heat pumps
• Water transfer
• Air conditioning systems
• Dewatering
Goulds GT Series Centrifugal Irrigator Pump - SpecificationsImpeller: Glass-filled, abrasion resistant engineered composite
Casing: Cast iron, 4-bolt, back pullout design. Openings for vacuum gauge and casing drain.
Motor Powered for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working limits. Can be operated continuously without damage. ( Only with Water in Housing )
Mechanical Seal: Carbon/ceramic faces, Buna elastomers. 300 series stainless steel metal parts. Diaphragm prevents the seal from running dry.
Pump End:
• Pipe Connections: 1½” NPT ( Suction & Discharge )
• Max Suction Lift: 25 feet
• Maximum water temperature: 140° F (60° C)
• Maximum working pressure: 125 psi
• Rotation: clockwise when viewed from motor end.
Motor Specifications:
• NEW STYLE - Motors - Wide Body - 56J - Manufactured by US Motors
• NEMA standard open drip proof
• 60 Hz, 3500 rpm
• Stainless steel shaft
• Single phase
• Built-in overload with automatic reset
• Motor Voltage Options: 115V / 230V ( 3/4 HP to 1-1/2 HP ) & 230V ONLY ( 2 HP and Above )
