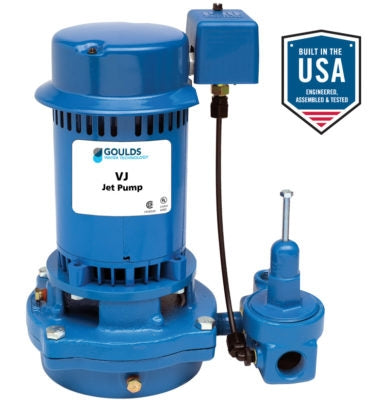

Goulds SJ10 Vertical Deep Well Jet Pump - 1HP - Replacing the VJ10 pump (discontinued)
Goulds SJ10 Vertical Deep Well Jet Pump - 1HP - Replacing the VJ10 pump (discontinued)
SKU:SJ10
Couldn't load pickup availability

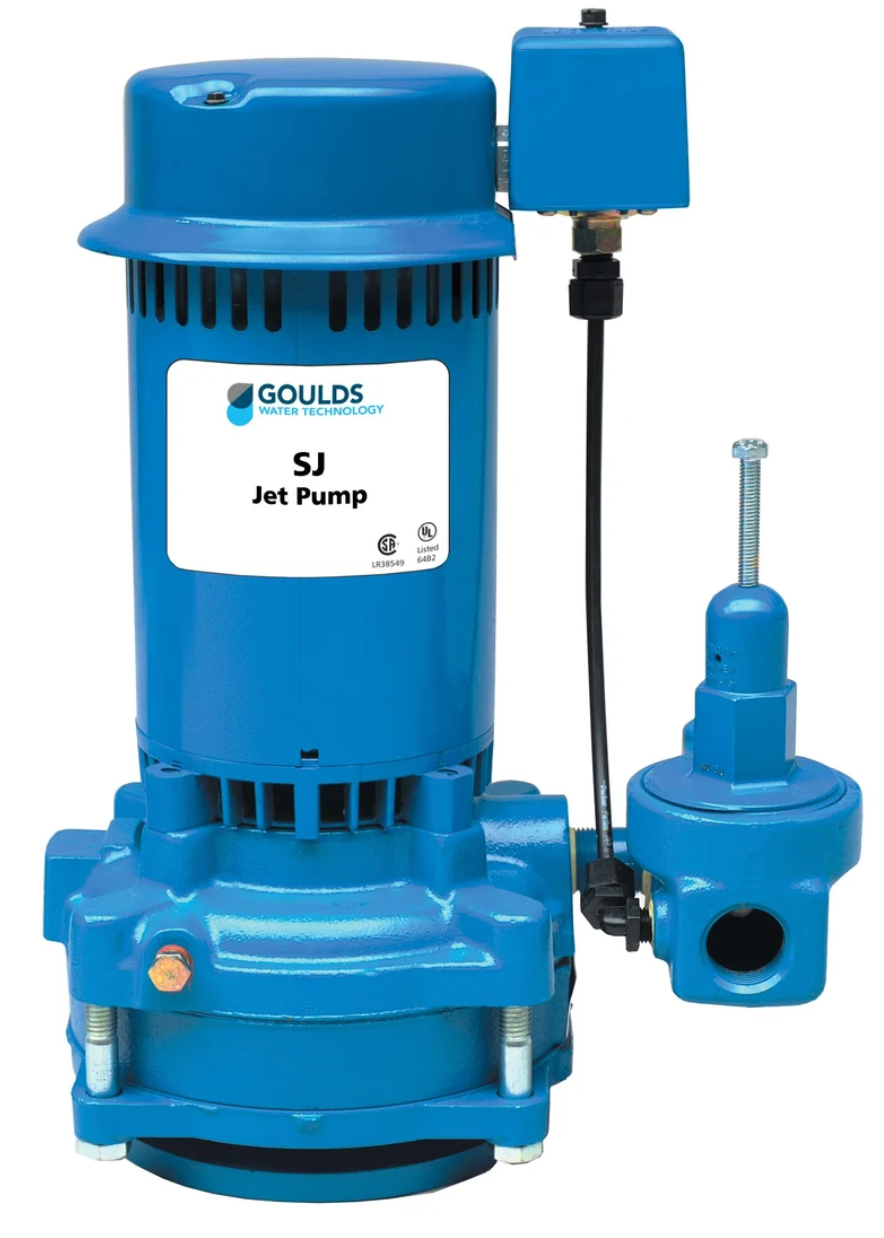

Goulds SJ10 – 1 HP Vertical Deep Well Jet Pump
Overview
The Goulds SJ10 is a 1 horsepower, vertical multistage jet pump designed for deep well applications. Built with rugged cast iron construction, stainless steel components, and serviceable internals, the SJ10 delivers reliable performance for homes, farms, cottages, and light commercial installations.
Engineered for high efficiency and consistent pressure, the SJ10 is ideal for wells requiring higher lift, long runs, or multiple water demands.
Key Features
-
Powerful performance with a 1 HP motor for demanding applications
-
Deep well capability with two-stage vertical jet design for higher head pressure
-
Durable construction with cast iron body and stainless steel shaft
-
Serviceable design with replaceable wear parts
-
Dual voltage motor: 115/230V, factory set at 230V
-
Certified components safe for potable water systems
Technical Specifications
| Specification | Details |
|---|---|
| Model | Goulds SJ10 |
| Type | Vertical Multistage Jet Pump (Deep Well) |
| Horsepower | 1 HP |
| Motor Voltage | 115/230V, Single Phase, 60 Hz |
| Pump Speed | 3500 RPM |
| Stages | 2 |
| Suction Size | 1 ¼″ NPT |
| Discharge Size | 1″ NPT |
| Maximum Operating Pressure | 100 PSI |
| Well Application | Deep well (requires matching jet assembly for installation depth) |
| Body Material | Cast Iron |
| Shaft Material | Stainless Steel |
| Impeller/Diffuser | Engineered thermoplastic |
| Bearings | Sleeve type, lubricated for extended life |
| Seal | Mechanical, replaceable |
| Approx. Weight | ~70 lbs (varies with configuration) |
Applications
-
Residential water supply from deep wells
-
Cottages, farms, and irrigation systems
-
Light commercial water boosting
-
Replacement pump for existing jet systems
What’s Included
-
Goulds SJ10 pump and motor
-
Pressure switch (30/50 PSI) pre-mounted
-
Installation and operation manual
(Jet assembly kit, ejector package, and pressure tank sold separately depending on well depth and installation requirements.)
Why Choose Goulds SJ10?
The SJ10 is a dependable deep well jet pump that combines efficiency, durability, and performance. Whether you’re upgrading an older pump or building a new system, Goulds’ proven reliability makes this the trusted choice for long-lasting water supply.
