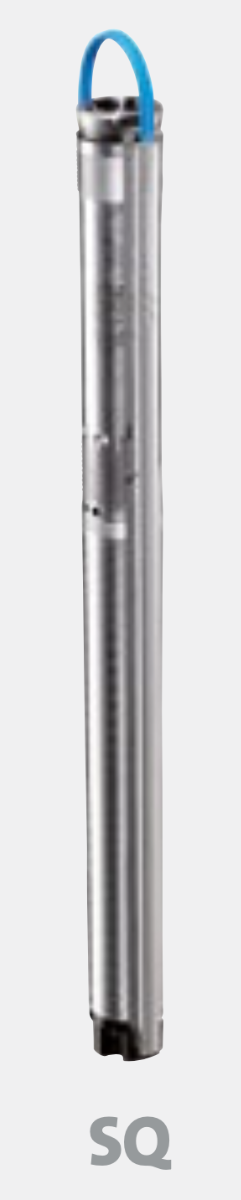

Grundfos 96160144 -10SQ15-330 - SQ Submersible Pump - 1-1/2 HP - 230V - 10 GPM

• Manufacturer: Grundfos
• Series: 3" SQ Series Submersible Pump
• Model Number: 10SQ15-330
• Part Number: 96160144
• Motor Horsepower: 1-1/2 HP
• Motor Voltage: 230 Volts
• Motor Wire Type: 2-Wire ( L1 / L2 / Ground )
• Motor Phase / Hertz: Single Phase / 60 Hz
• Motor Amps: 12.3 Amps
• Pump End Stages: 7 Stages
• Pump GPM Rated: 10 GPM
• Pump TDH Rated: 330 FT ( TDH )
• Pipe Connection: 1-1/2" NPT

Specifications Grundfos Submersible Pump
• Motor type MS3
• Power input - P1: 2.54 kW
• Rated power - P2: 2.5 HP
• Main frequency: 60 Hz
• Rated voltage: 1 x 200-240 V
• Service factor: 1.65 SF
• Rated current: 12.3 A • Power factor: 1.00
• Rated speed: 10700 rpm
• Motor protection: Yes
• Thermal protect: internal
• Length of cable (lead): 4.922 ft

About Grundfos SQ Series Pumps
The Grundfos SQ pump is the basic model of the Grundfos 3" submersible pump range. Unique features makes the SQ series very easy to install and operate, and ensures a reliable and constant water supply at all times; perfect for domestic water supply and any critical constant pressure water pump applications. The SQ can be installed without the need of any additional control units and has a small 3 inch diameter, which makes the SQ and excellent choice for your existing domestic water system usage. Never worry about your home water supply again! As a home water pump, you can be sure that you will get the most reliable performance possible from the Grundfos SQ pump. Featuring a high quality a permanent magnet motor for high efficiency, and safeguards such as: overload protection, over temperature protection, dry-run protection. The Grundfos SQ is the clear choice for your use as a primary home water pump in your domestic water system.

Special Features
• Excellent low energy home water pump, making it extremely efficient for your household water needs
• Grundfos is one of the most trusted names in small pump manufacturing
• Overload protection and Dry running protection protect the motor against unstable voltage supply by reducing speed or stopping the pump, and stops and prevents the pump from damage in case of dry running
• Soft start to prevent water hammering and electrical disturbances
• Automatic restart ensures a reliable water supply when ever possible
• High starting torque, even at low supply voltage,the SQ delivers a reliable water supply

Grundfos SQ Series Application
• Domestic Water Supply
• Small water works
• Irrigation

Materials of Construction
• Pump: Polyethylene / Stainless steel
• Pump: DIN W.-Nr. 1.4301
• Motor: Stainless steel
• Motor: DIN W.-Nr. 1.4301
• Motor: AISI 304

Liquid
• Pumped Liquid: Water
• Maximum liquid temperature: 95 °F
• Max liquid temperature: 95 °F
• Liquid temperature during operation: 68 °F
• Density: 62.29 lb/ft³
