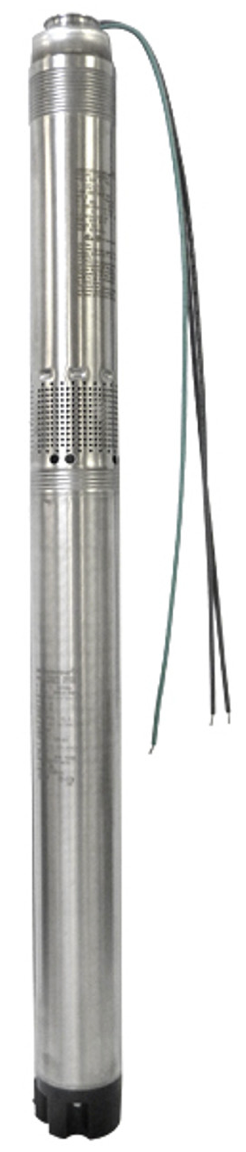

Grundfos 96160200 - 22SQE10-190 - SQE Submersible Pump - 1 HP - 230V - 22 GPM



Measuring a mere 3 inches in diameter, the Grundfos SQ submersible pump boasts exceptional compactness, making it a perfect fit for narrow or confined boreholes. Alongside the qualities and advantages it shares with the highly acclaimed SP submersible pump, the SQ introduces a variety of motor protection and wear-reducing attributes. These characteristics collectively position it as the clear preference for extracting groundwater in residential or minor waterwork setups, powering irrigation systems, or facilitating groundwater reduction.



The Grundfos SQE pump is the basic model of the Grundfos 3" submersible pump range. Unique features makes the SQE series very easy to install and operate, and ensures a reliable and constant water supply at all times; perfect for domestic water supply and any critical constant pressure water pump applications. The SQ can be installed without the need of any additional control units and has a small 3 inch diameter, which makes the SQ and excellent choice for your existing domestic water system usage. Never worry about your home water supply again!

As a home water pump, you can be sure that you will get the most reliable performance possible from the Grundfos SQ pump.

Featuring a high quality a permanent magnet motor for high efficiency, and safeguards such as: overload protection, over temperature protection, dry-run protection. The Grundfos SQ is the clear choice for your use as a primary home water pump in your domestic water system.

• Excellent low energy home water pump, making it extremely efficient for your household water needs

• Grundfos is one of the most trusted names in small pump manufacturing

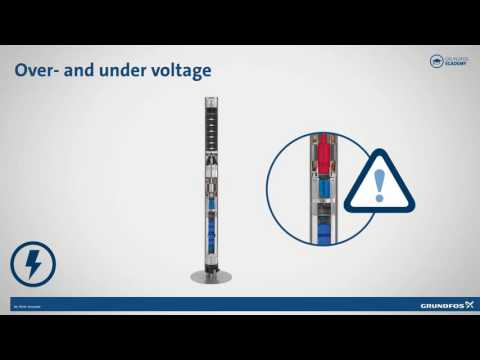

• Overload protection and Dry running protection protect the motor against unstable voltage supply by reducing speed or stopping the pump, and stops and prevents the pump from damage in case of dry running

• Soft start to prevent water hammering and electrical disturbances

• Automatic restart ensures a reliable water supply when ever possible

• High starting torque, even at low supply voltage,the SQ delivers a reliable water supply



• Domestic Water Supply

• Small water works

• Irrigation



• Pump: Polyethylene / Stainless steel

• Pump: DIN W.-Nr. 1.4301

• Motor: Stainless steel

• Motor: DIN W.-Nr. 1.4301

• Motor: AISI 304



• Pumped Liquid: Water

• Maximum liquid temperature: 95 °F

• Max liquid temperature: 95 °F

• Liquid temperature during operation: 68 °F

• Density: 62.29 lb/ft³
