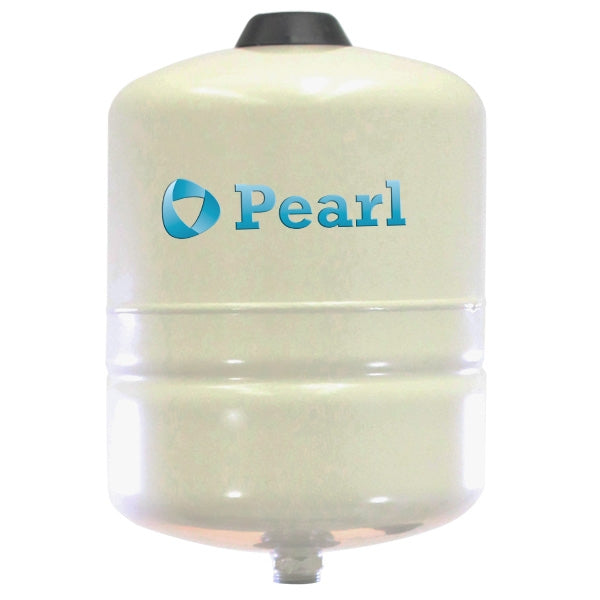

Pearl MNP18SR - MNP Series - In-Line Steel Pressure Tank - 4.8 Gallons

• Manufacturer: Pearl
• Series: MNP Steel Series
• Pressure Tank Type: In-Line

• Tank Gallons: 4.8 Gallons
• Dimensions: 14.7" x 11.2"
• Pipe Connection: 3/4" SS MALE

• Drawdown 20/40 Pressure: 1.9 Gallons
• Drawdown 30/50 Pressure: 1.6 gallons
• Drawdown 40/60 Pressure: 1.4 Gallons
PEARL - STEEL TANKS - MNP - Tanks ( Inline )
• The MNP Steel Series tanks are ideally suited for a wide range of applications, including boosting systems, irrigation systems and hydraulic hammer arresting.
• The MNP Steel Series In Line Tanks are made of virgin polypropylene liner combined with FDA approved high grade chlorobutyl diaphragm.
• This is held against the wall of the tank with a steel clench ring.
• The brass air valve, sealed by a threaded o ring valve cap, prevent air leaks.
• On the exterior, the almond colored two part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.

Standard Features
• Single chlorobutyl diaphragm
• Patented stainless steel water connection
• Virgin polypropylene liner
• Two part polyurethane, epoxy primed paint finish
• Leak free, O-ring sealed air valve cap
• No maintenance
