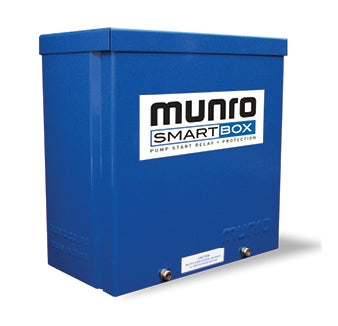

Munro SmartBox MPLC24 - Pump Start Relay - Low Pressure Sensor - 24V Controller

• Manufacturer: Munro
• Series: MPLC Series SmartBox
• MPN: MPLC24

• Coil: 24V
• Control / Signal Voltage: 24V
• Pump / Line Voltage: Either 120V or 240V

• MAX HP ( @ 120V ): 2 HP
• MAX HP ( @ 240V ): 5 HP

• Pump Protection ( Included ): Low Pressure Sensor & Boot ( Normally Closed - 20 PSI )
• Adjustable Time Delay ( Factory Set for 30 Sec Time Delay )
• Enclosure Size: 8" x 8" x 4"
Munro SmartBox MPLC Series - Pump Start Relay - Standard
• A great option for pump start and pump protection in one, the Munro Smart-Box includes a preset pressure sensor that alerts the control system of potential pump damage due to loss of prime or run-dry. All external devices are powered at reduced 24 volts. Low risk of line voltage harming people or pets.
• Works with any residential turf irrigation pump - available in 24v, 110v, 220v coils
• Color-coded wiring - makes hook up a breeze
• UL listed relay and enclosure - safe and reliable

MPLC Series Box Construction
• Dimensions - 8"x8"x4"
• Quick connect terminals
• UL listed relay
• NEMA 3R UL listed enclosure - approved for outdoor use

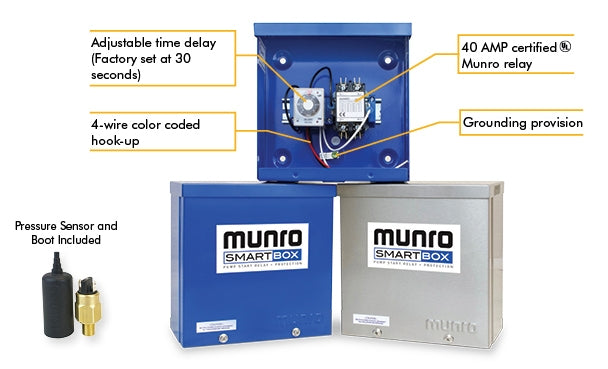

Munro SmartBox MPLC Series Products Includes:
• Adjustable Time Delay ( Factory Set for 30 Sec Time Delay )
• 40 AMP Certified Munro Relay

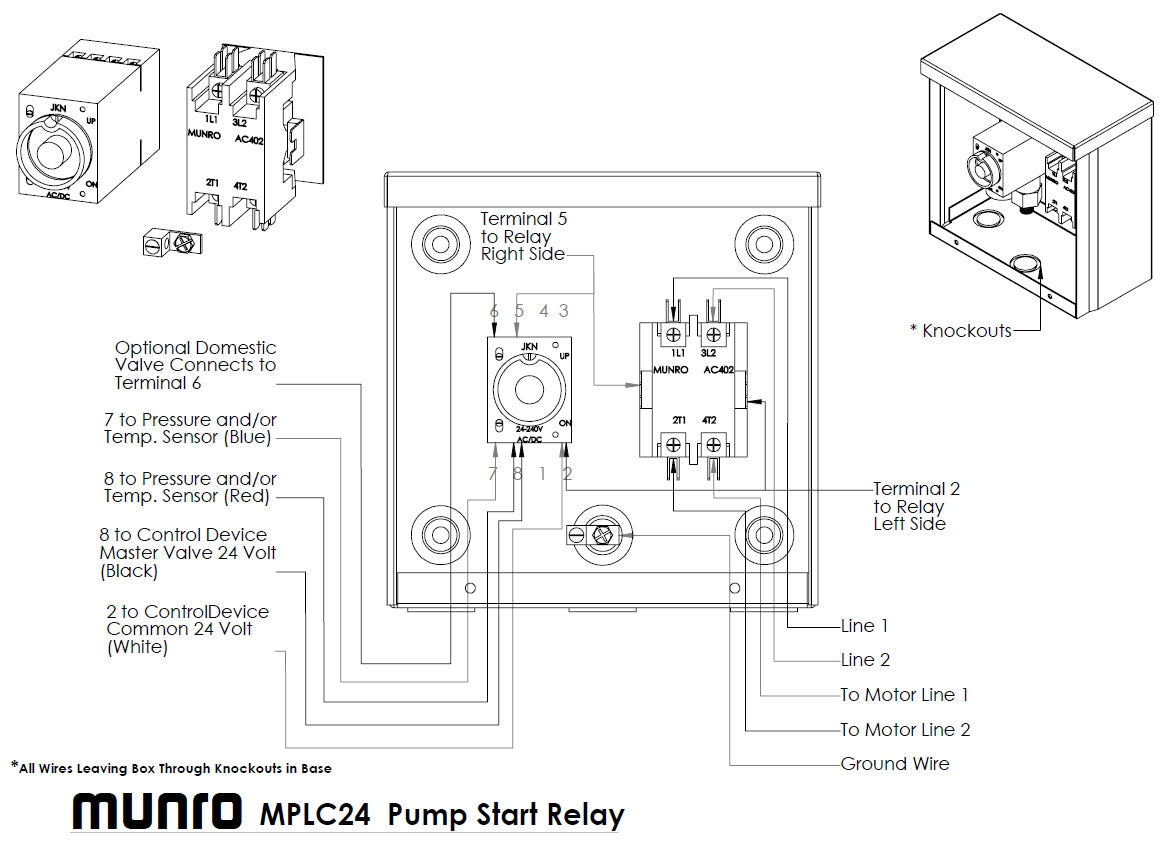

• 4-Wire Color Coded Hook-Up
• Grounding Provision
• Low Pressure Sensor and Boot ( Included )
