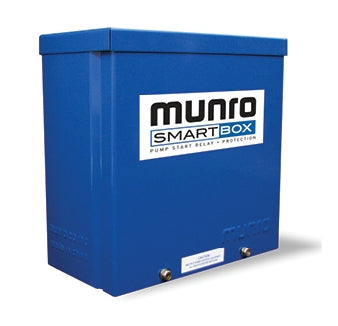

Munro SmartBox MPLC242W11T - 2-Wire Decoder Compatible - Low Pressure and Temperature Sensors - 24V Controller to 120V Pump

• Manufacturer: Munro
• Series: SmartBox MPLC242
• MPN: MPLC242W11T
• Enclosure Color: Blue
• Enclosure Size: 8" x 8" x 4"
• Signal Voltage: 24 Volt
• Line Voltage: 120 Volt
• Max HP Motor Using 120 Volts: 2 HP
• Resistive (Cos.=1): 12 Amp

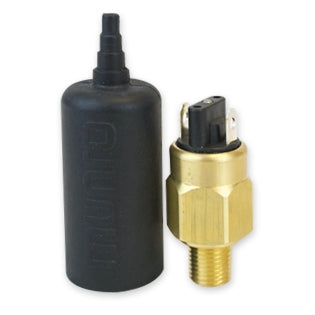

• Pump Protection ( Included ): Low Pressure Sensor & Boot ( Normally Closed - 20 PSI )

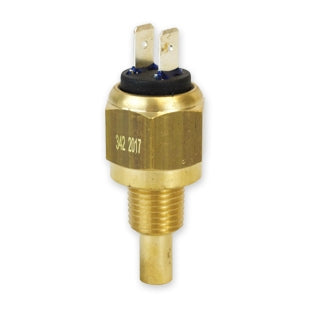

Temperature Sensor ( Normally Open 105° F )

Munro SmartBox MPLC242 Series - Pump Start Relay - Reduced Incoming Amperage ( aka: The New Industry Standard )

This flexible, easy-to-install pump start relay provides “pilot-duty” operation for all electrically driven pump equipment and works with any reliable brand of 24v lawn controller – including 2-wire systems and those that provide less than .35 amps for pump start.
Single unit eliminates the need for secondary transformers to be installed with decoders. Accepts a low amperage start signal from controller to provide all of the benefits of the standard StartBox, even though signal amperage is reduced.

SmartBox MPLC242 Series - Reduced Incoming Amperage

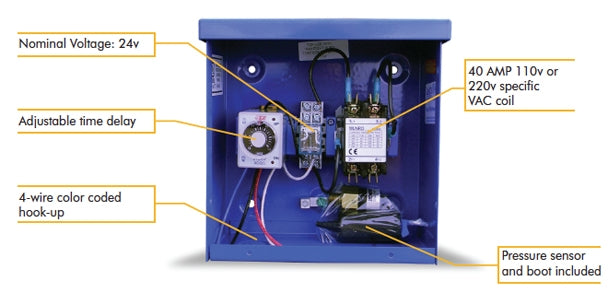

• A Great Option for pump start and protection in one, the Munro SmartBox includes a preset pressure sensor that alerts the control system of potential pump damage due to loss of prime or run-dry, and will work with all reliable lawn controllers.
• Accepts a low amperage start/stop signal - to provide all of the benefits of the standard SmartBox, including loss of prime and run-dry protection, even when signal amperage is reduced
• Compatible 2-wire system - works with any brand, any style of 24v lawn controller
• For use with lawn controllers that provide less than .35 amps for pump start signaling

Electrical Data / Information
• Signal Voltage: 24V
• Electrical Rating: 120V-24FLA
• Largest Motor: 120V-2HP
• Short Circuit Rating: 120V-5KA
• Hertz: 60
• Line Voltage: 110
• Phase: 1
