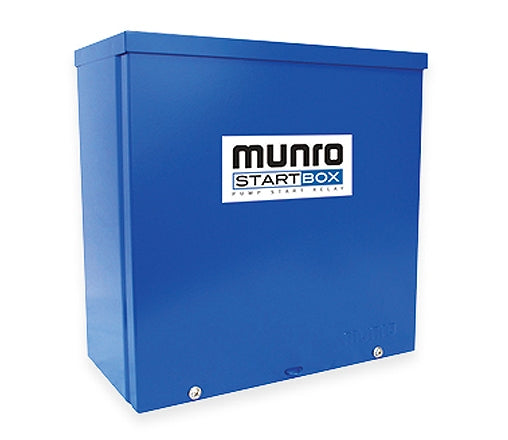

Munro StartBox MPSR110 - Standard - Pump Start Relay - 110V Coil

• Manufacturer: Munro
• Series: StartBox MPSR Series
• MPN: MPSR110

• Coil: 110V
• Control / Signal Voltage: 110V
• Pump / Line Voltage: 110V

• MAX HP ( @ 110V ): 2 HP

• UL-50 Type 3R Listed Enclosure
• Enclosure Size: 6" x 6" x 4"
StartBox - Standard (The Old Stand By)
• This flexible, easy-to-install pump start relay provides “pilot-duty” operation for all electrically driven pump equipment.
• No need to wonder which relay to use, the Munro StartBox has a 40 amp relay to work equally well with single phase 3/4 hp to 5 hp
• For use with controllers with a 0.36 amp signal or stronger
• Works with any residential turf irrigation pump – available in 24v, 110v, 220v coils

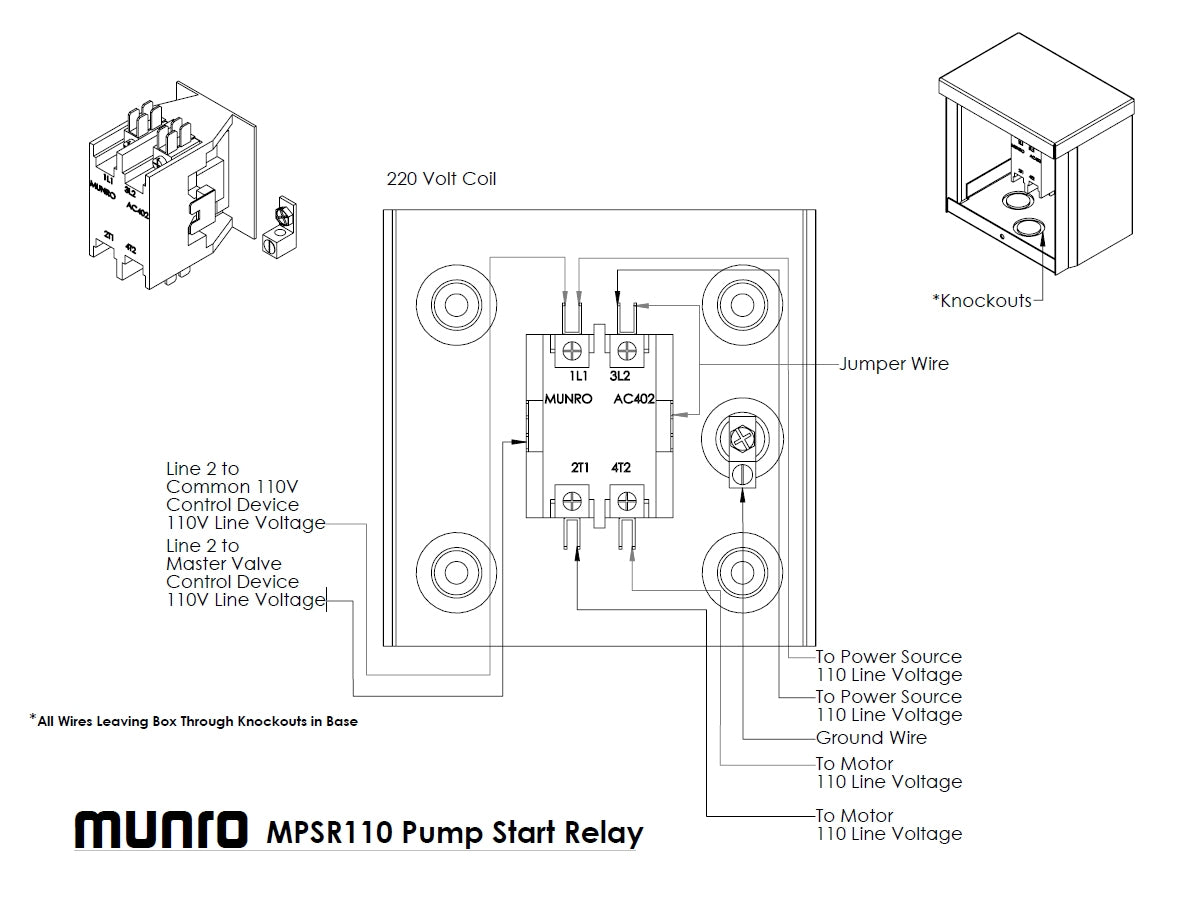

• Color-coded wiring – makes hook up a breeze
• UL and CUL listed relay and enclosure – safe and reliable

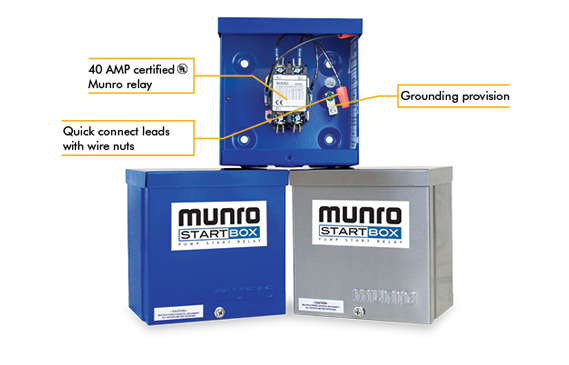

StartBox Construction
• Dimensions – 6” x 6” x 4”
• UL and CUL listed relay
• NEMA 3R UL listed enclosure

StartBox - Standard Electrical Data
• Munro Relay: Certified 40 AMP Relay
• Electrical Rating: 120V - 24FLA / 240V - 29FLA
• Short Circuit Rating: 120V - 5KA / 240V - 5KA
• Inrush/Run: 360MA / 270MA
• Phase/Hz: 1 / 60 Hz
