Munro Startbox MPSR220AU - Liquid Level Control Box - Pump Up Float

• Manufacturer: Munro
• Series: StartBox Pump Start Relay
• MPN: MPSR220AU
• Motor HP Rated: 1HP to 5 HP Motors
• UL-50 Type 3R Listed Enclosure
• Enclosure Size: 12" x 12" x 6"

Munro Startbox MPSR220AU - Up to 5 HP Motors - 24V Coil - 220V Motors

The water level control box is a simple, cost effective control for applications when the water level is variable. The Munro water level control provides pilot duty operation when thermal overload protection is present, for example, submersible water feature pumps or dewatering pumps.

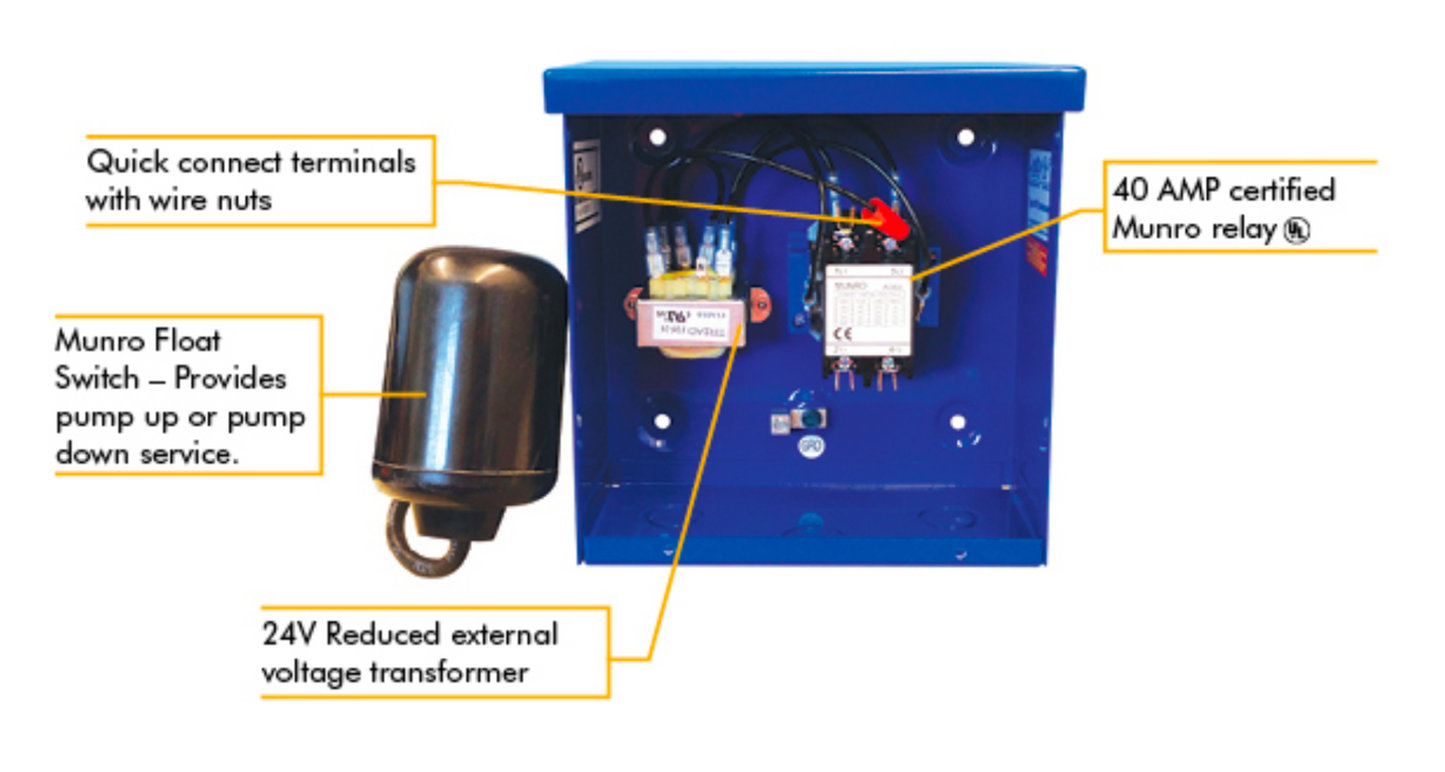

Used any place power can be interrupted, this control transforms all outbound voltage to a low, safe, 24v. Low external voltage is especially important when external sensors or switches are used, such as the float switch included with this control box.
