Munro Startbox MPSR24V10 - Thermal Protection - 10 HP Motors - 24V Controller

• Manufacturer: Munro
• Series: StartBox Pump Start Relay
• Type: Standard with Thermal Protection
• MPN: MPSR24V10

• Control Voltage: 24V
• Line Voltage: 240V
• Motor HP Rated: 10 HP Motors
• Amp Range: 50 Amps
• Hertz: 60 Hz
• Is this box a Safe 24v Output: YES

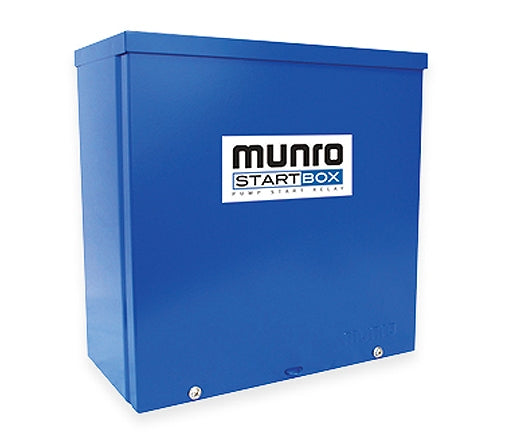

• UL-50 Type 3R Listed Enclosure
• Enclosure Size: 12" x 12" x 6"
Munro Startbox MPSR24V10 - Thermal Protection - 10 HP Motors - 24V Coil - 220V Motors

This StartBox variation protects the pump motor from damage due to over amping while still performing all the basic functions the standard pump start relay does
• Provides the pump motor with thermal overload protection, even when the motor itself does not
• Auto-resets upon cool-down
• For use with single phase motors

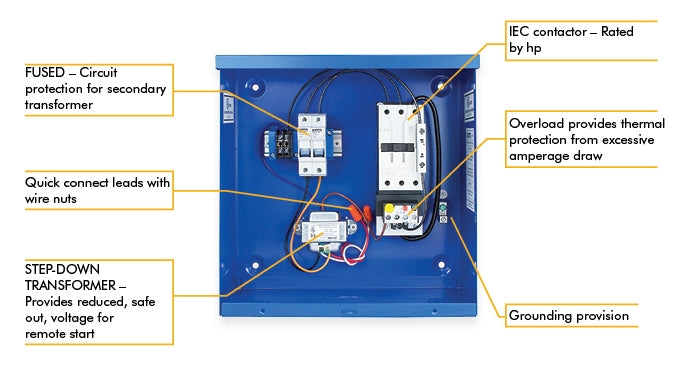

Box Construction
• Quick-connect terminals
• UL listed relay
• UL-50 Type 3R listed enclosure
• Enclosure Dimensions - 12 X 12 X 6

MANUFACTURER'S NOTE
• National electrical code (NEC) states all motors will be thermally protected from excessive “amperage draw”
• While most motors, 2 HP rated and under, are supplied with thermal protection from the motor manufacturer, it is highly recommended ANY motor over 2 HP Rated to use a Munro StartBox with thermal protection

Specifications
• Line Voltage: 240V
• Control Voltage: 24V
• Motor HP Rated: 10 HP Motors Only
• Amp Range: 50 Amps
• Hertz: 60 Hz
• Is this box a Safe 24v Output: YES
