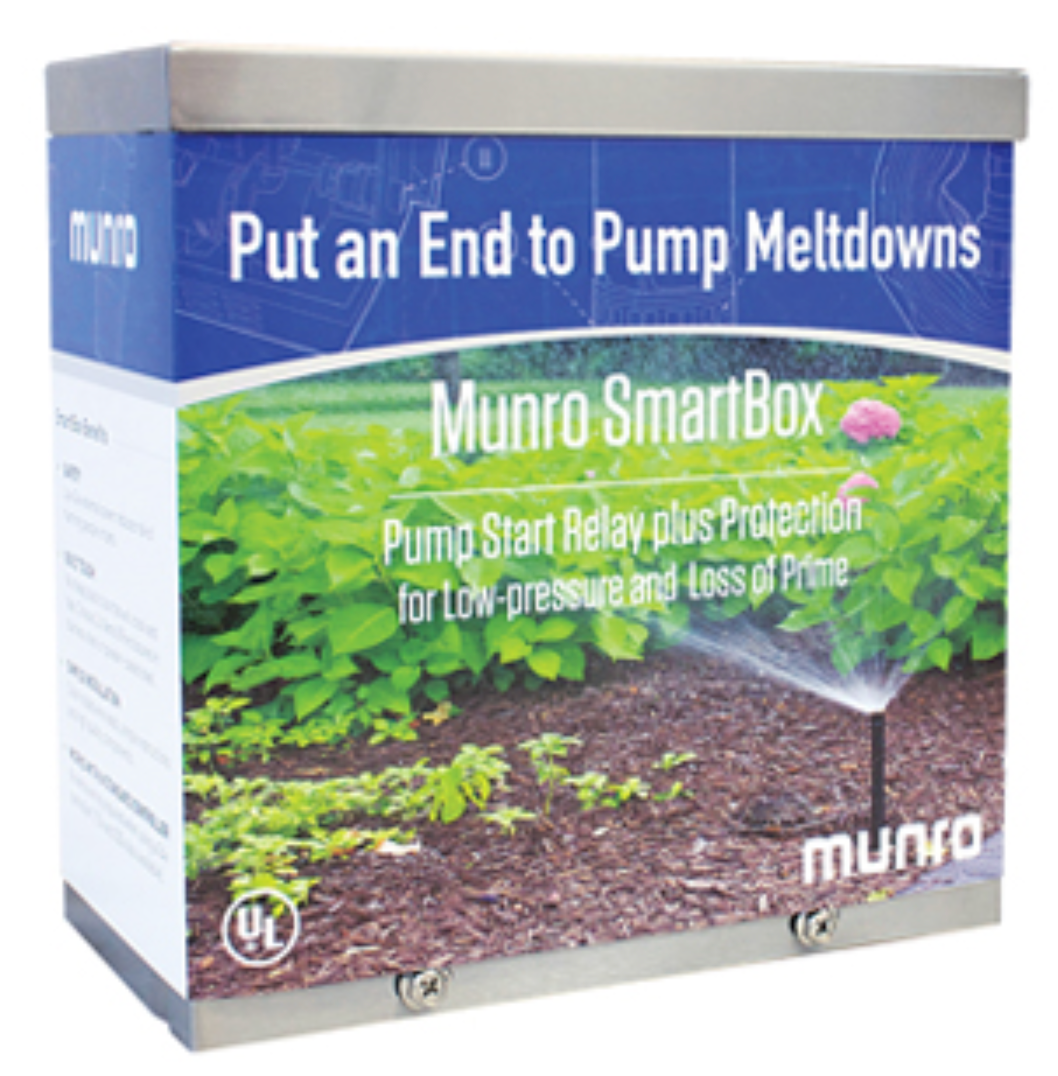

Munro SmartBox MPLC245T - Low Pressure, Temperature and overload protection - 24V Controller - 5HP rated

• Manufacturer: Munro
• Series: MPLC Series SmartBox
• MPN: MPLC245T
• Comes with built-in OVERLOAD motor protection
• Enclosure Size: 12" x 12" x 6"
• Signal Voltage: 240 Volt
• Max HP Motor Using 240 Volts: 5 HP

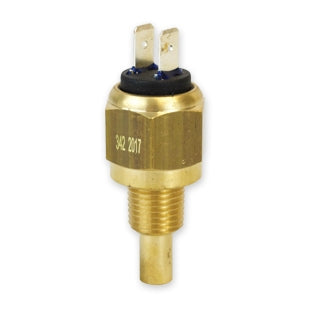

• Pump Protection ( Included ): Low Pressure Sensor & Boot ( Normally Closed - 20 PSI ) Temperature Sensor ( 130° F )

Munro SmartBox MPLC Series - Pump Start Relay - Standard ( aka: The Old Stand By )

• The MPLC245T SmartBox variation not only protects the pump motor from run-dry or loss of prime, it also protects from damage due to over amping.
• Provides the pump motor with thermal overload protection, even when the motor itself does not
• Works with any residential turf irrigation pump - available in 24v, 110v, 220v coils
• Color-coded wiring - makes hook up a breeze
• UL listed relay and enclosure - safe and reliable

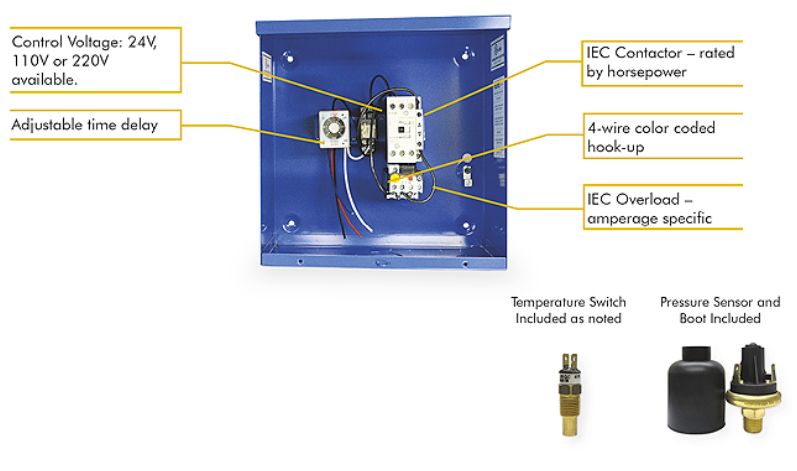

MPLC Series Box Construction
• Dimensions - 12"x12"x6"
• Quick connect terminals
• UL listed relay
• NEMA 3R UL listed enclosure - approved for outdoor use

Munro SmartBox MPLC Series Products Includes:
• Adjustable Time Delay (Factory Set for 30 Sec Time Delay )
• 40 AMP Certified Munro Relay
• 4-Wire Color Coded Hook-Up
• Grounding Provision

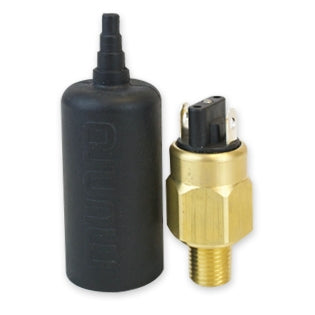

• Pressure Sensor and Boot ( Included )
