Munro MXS206S22 - Multistage Bottom Suction Submersible Pumps - 2 hp - 220 v
Munro MXS206S22 - Multistage Bottom Suction Submersible Pumps - 2 hp - 220 v
Regular price
$803.12 USD
Regular price
$0.00 USD
Sale price
$803.12 USD
Quantity
Couldn't load pickup availability
• Manufacturer: Munro
• Brand: Munro
• Series: MX5
• Model Number: MXS206S22
• MPN: MXS206S22
• Horsepower: 2 HP
• Voltage: 220 Volts
• Amp Draw: 9.5 amps
• Motor Wires: 2-Wires ( + Ground Wire )
• Requires Control Box: No
• Phase / Hz: Single Phase / 60 Hz
• Cord Length: 14.5 Feet ( 16/3 Gauge )
• Discharge Pipe Connection: 1-1/4"

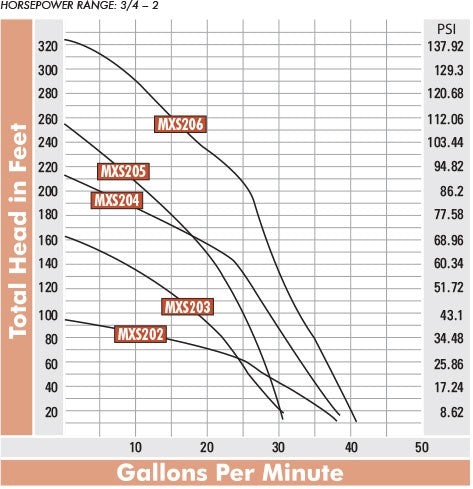

Performance Rated
• GPM Range: 20 - 30 GPM
• Optimum TDH Range: 150 to 230 FT - TDH
• Optimum PSI Range: 65 to 100 PSI
• Max Shut Off PSI / TDH: 135 PSI ( 320 FT - TDH )
• Pump Dimensions: 5" (W) x 23.0" (L)
• Weight: 46.00 lbs

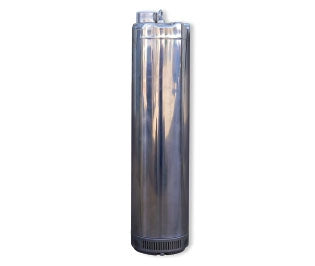

Munro MXS 5" Multistage Bottom Suction Submersible Pumps - MXS206S22
Munro MX5 Bottom Suction Pumps are easy-to-install, high-head multistage submersible pump is designed for turf irrigation service, high head de-watering applications, and high pressure, low gallon water feature projects that require high head and low flow (i.e., fountains)
Standard Features & Highlights
• Stainless Steel Components ( Outside and Inside ) – non-corrosive, built to industrial specifications
• Self-Cooling & Quiet Operation – the pumped liquid cools the motor for long life
• Easy Installation – no control box required to start the pump
Typical Uses for the MXS Series Pumps
• Irrigation
• Shallow Wells
• Rain Collection Tanks
• Cisterns
• Grey Water
• Dewatering
• Fountains
• Pressure Boosting Domestic Water
Advantages of the MXS Series Submersible Pumps
• Non-corrosive – All hydraulic parts, including impellers and hydraulic bowl chambers, are made from high-grade stainless steel.
• Superior “Draw-Down” Capability – With the lowest draw down in its class, our 4 1/2” capability dwarfs the competition.
• Reduced Amp Draw – Offering over 25% less energy consumption reduces operating costs and extends the service life.
• Cooler and Quieter Operation – Using the pumped liquid to cool the motor, the water passing over the motor dampens the noise. No need for expensive “flow-inducer sleeves” required on other pumps.
• Brand: Munro
• Series: MX5
• Model Number: MXS206S22
• MPN: MXS206S22
• Horsepower: 2 HP
• Voltage: 220 Volts
• Amp Draw: 9.5 amps
• Motor Wires: 2-Wires ( + Ground Wire )
• Requires Control Box: No
• Phase / Hz: Single Phase / 60 Hz
• Cord Length: 14.5 Feet ( 16/3 Gauge )
• Discharge Pipe Connection: 1-1/4"
Performance Rated
• GPM Range: 20 - 30 GPM
• Optimum TDH Range: 150 to 230 FT - TDH
• Optimum PSI Range: 65 to 100 PSI
• Max Shut Off PSI / TDH: 135 PSI ( 320 FT - TDH )
• Pump Dimensions: 5" (W) x 23.0" (L)
• Weight: 46.00 lbs
Munro MXS 5" Multistage Bottom Suction Submersible Pumps - MXS206S22
Munro MX5 Bottom Suction Pumps are easy-to-install, high-head multistage submersible pump is designed for turf irrigation service, high head de-watering applications, and high pressure, low gallon water feature projects that require high head and low flow (i.e., fountains)
Standard Features & Highlights
• Stainless Steel Components ( Outside and Inside ) – non-corrosive, built to industrial specifications
• Self-Cooling & Quiet Operation – the pumped liquid cools the motor for long life
• Easy Installation – no control box required to start the pump
Typical Uses for the MXS Series Pumps
• Irrigation
• Shallow Wells
• Rain Collection Tanks
• Cisterns
• Grey Water
• Dewatering
• Fountains
• Pressure Boosting Domestic Water
Advantages of the MXS Series Submersible Pumps
• Non-corrosive – All hydraulic parts, including impellers and hydraulic bowl chambers, are made from high-grade stainless steel.
• Superior “Draw-Down” Capability – With the lowest draw down in its class, our 4 1/2” capability dwarfs the competition.
• Reduced Amp Draw – Offering over 25% less energy consumption reduces operating costs and extends the service life.
• Cooler and Quieter Operation – Using the pumped liquid to cool the motor, the water passing over the motor dampens the noise. No need for expensive “flow-inducer sleeves” required on other pumps.
