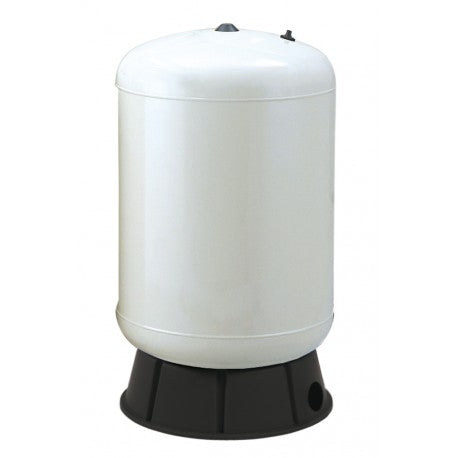

Steel Well Pressure Tank - 20 Gallon

• Size: 20 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 29.4" (H) x 16"(D)
• Inlet Connection: 1"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• ANSI / NSF Standard 61 Approved
• Actual Weight: 36 lbs
• Dimension Shipping Weight: 45
Standard Features
Tank: 16 gauge cold rolled steel
Finish: Almond appliance grade paint for both indoor and outdoor installation
Water Chambers: Top chamber is blended butyl rubber, lower water chamber is copolymer polypropylene.
Connection: Welded steel NPT thread
Air valve: Brass valve with O-ring seal

Specifications:
• Size: 20 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 29.4" (H) x 16"(D)
• Inlet Connection: 1"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• ANSI / NSF Standard 61 Approved
• Actual Weight: 36 lbs
• Dimension Shipping Weight: 45
