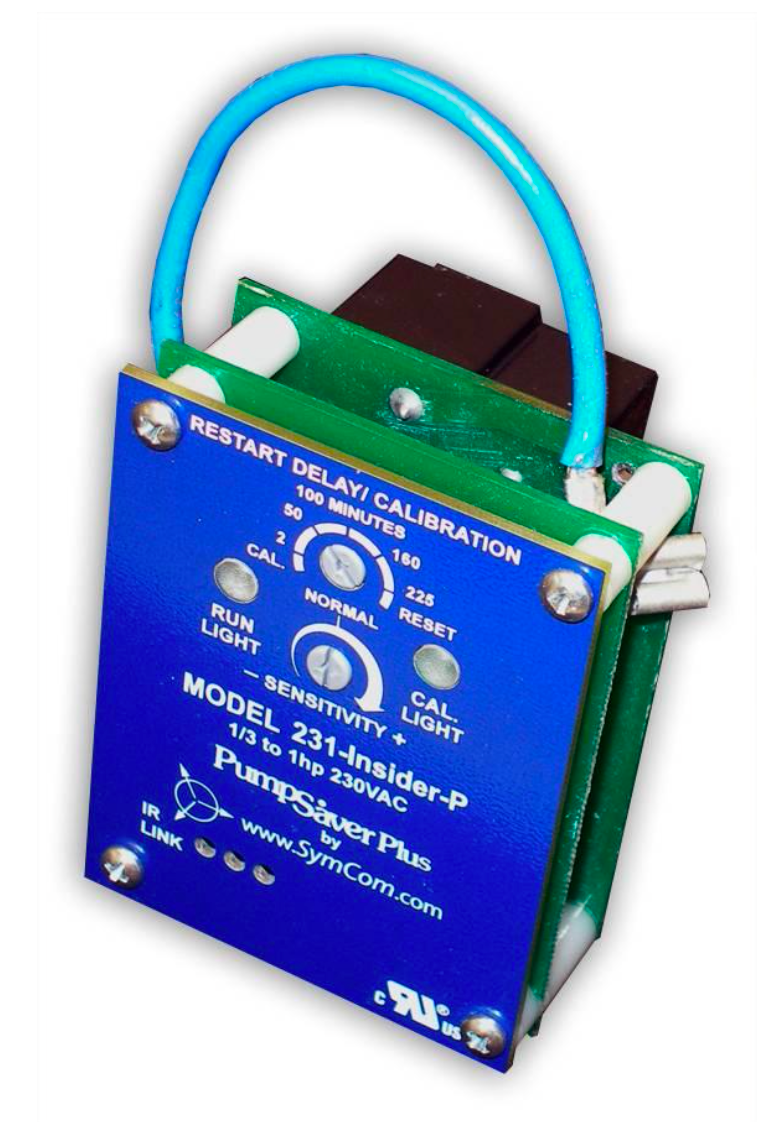

PumpSaver Plus MODEL 231/111-INSIDER-P - For 230V Control Box 1Ph
PumpSaver Plus MODEL 231/111-INSIDER-P - For 230V Control Box 1Ph
Couldn't load pickup availability
Fits inside most Control Box: 1/3HP to 1HP
Voltage 230V
Protects From:
Dry well (run dry condition)
Flow restrictions (dead head)
Over current (jammed impeller)
Over voltage
Under voltage
SymCom/LittleFuse Model 231-Insider-P, a single-phase PumpSaver Plus, is compatible with 1/3, 1/2, 3/4, and 1hp 230V control boxes. Its purpose is to safeguard single-phase pumps against a range of adverse conditions, including dry-well situations, dead-head operation, impeller jams, rapid cycling, overvoltage, and undervoltage scenarios.
The PumpSaver®Plus Model 231-INSIDER-P is compatible with control boxes for 1/3 to 1hp, 230VAC pumps from FranklinTM, Pentek®, CentriProTM, and Flint and WallingTM. Similarly, the Model 111-INSIDER-P is designed to fit control boxes for 1/3 and 1/2hp, 115VAC pumps from the same brands.
PumpSavers are engineered to provide safeguarding measures for single-phase pumps, protecting them from dry-well situations, dead-head operation, rapid-cycling, jammed impeller issues, and over/undervoltage fluctuations.
These protective devices find common use in various applications such as residential water wells, commercial water wells, irrigation wells, as well as in golf course and other sprinkler systems.
