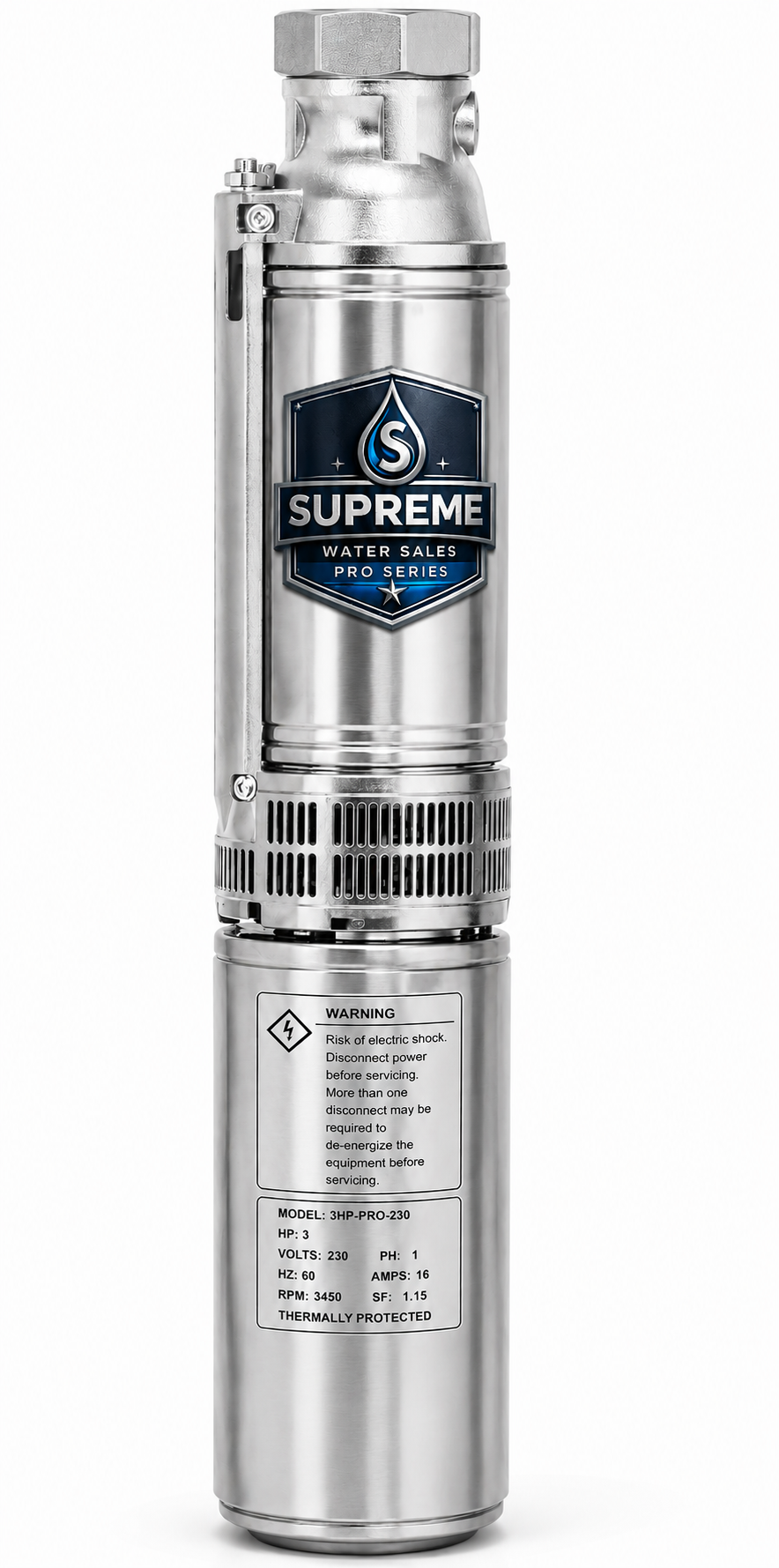

Supreme Water Sales SWS25G15S4-3W230 Submersible Well Pump - 25 GPM - 1.5 HP - 230V - 3 Wire

• BUILT TO LAST Pro Series Submersible Well Pump
• TRUSTED FOR DECADES Professional-Grade Performance
• FIVE (5) YEAR WARRANTY vs the standard one year.


The Supreme Water Sales SWS25G15S4-3W230 Stainless Submersible Well Pump is a high-performance 4-inch deep well pump engineered for reliable water delivery in residential, agricultural, and light commercial applications. Designed with professional-grade hydraulic performance and durable composite construction, this pump delivers dependable pressure, efficient operation, and long service life in demanding well systems.

Built using a proven submersible pump platform trusted throughout the water well industry, the 25 GPM design provides strong flow and consistent performance for homes, irrigation systems, livestock watering, pressure boosting, and general water transfer applications. The 1 HP motor operates on 230 volts with a convenient 2-wire plus ground configuration, simplifying installation and reducing system complexity.

The advanced thermoplastic and engineered composite construction resists corrosion, mineral buildup, and wear commonly associated with harsh water conditions, while the precision-balanced internal components are designed for smooth, efficient operation and dependable performance over extended use.

Manufactured to meet the expectations of professional installers and well system contractors, the SWS Pro Series combines contractor-grade reliability with outstanding value.

Features & Benefits

• Professional-grade 25 GPM hydraulic performance
• 1.5 HP submersible motor for dependable water delivery

• 3-Wire + Ground configuration
• Durable 304 stainless steel components

• Compact 4-inch diameter fits most drilled wells
• Stainless steel intake screen and cable guard
• Built-in check valve
• Glass reinforced Noryl impellers



Specifications

• Brand: Supreme Water Sales
• Model: SWS25G15S4-3W230
• Pump Type: Water Well Submersible Pump
• Construction: 304-Stainless Steel
• Flow Rate: 25 GPM
• Horsepower: 1.5 HP
• Voltage: 230V
• Wire Configuration: 3 Wire + Ground
• Pump Diameter: 4 Inch
• Discharge: 1.5"

Common Applications

• Residential deep well systems
• Irrigation and lawn watering
• Agricultural water supply
• Livestock watering systems
• Pressure boosting
• Cabins and rural properties
• General water transfer
