Engineered with contractors’ needs in mind, Challenger well tanks deliver CAD-2 technology (Flexcon’s famous controlled action diaphragm system) at a very affordable price. Challenger is equipped with a high grade steel water connection and our patented water chamber! In short, you get superior air and water separation, incredible durability, and unmatched performance all at an unbeatable price.
Flexcon Industries

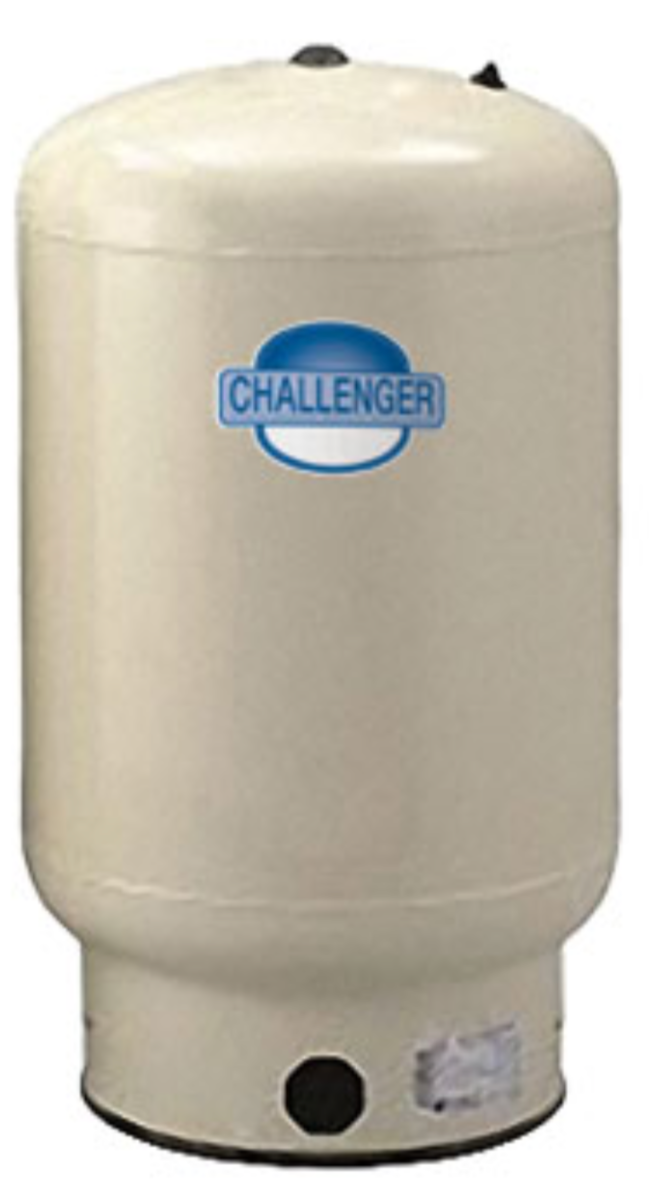

Flexcon Challenger 33.5 Gallon - Cold Rolled Steel Well Tank - PC122
Flexcon Challenger 33.5 Gallon - Cold Rolled Steel Well Tank - PC122
SKU:PC122
Regular price
$2,128.66 USD
Regular price
$0.00 USD
Sale price
$2,128.66 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Flexcon Challenger PC122 is a 33.5-gallon diaphragm well pressure tank for residential well systems. It holds steady pressure and cuts down pump cycling to help the pump last longer.
Usually ships within 1-2 business days. Ship times can vary with supplier stock; call (866) 202-8388 to confirm before you order.
Specifications
| Brand | Flexcon Industries |
|---|---|
| Model | Challenger PC122 |
| Capacity | 33.5 gallons |
| Dimensions | 28" H x 21" diameter |
| Connection | 1-1/4" NPT, welded steel |
| Max pressure | 125 psi |
| Max temperature | 140°F |
| Certification | NSF/ANSI 61 |
| Construction | 16 ga cold rolled steel, almond finish, CAD-2 diaphragm, brass air valve |
Fits / Replaces
- Residential well systems
- Replaces a similar-size well pressure tank
- Larger option: PC244FR 81 gal; smaller: PC66FR 20 gal
Install & Use Notes
Set the pre-charge 2 psi below your pump cut-in pressure with the tank empty, and check it yearly. The finish is rated for indoor and outdoor installs.
Frequently Asked Questions
What size connection does the PC122 have?
1-1/4" NPT.
How big is it?
About 28" tall and 21" in diameter.
Can it go outside?
Yes. The almond finish is rated for indoor and outdoor installation.
Is it safe for drinking water?
Yes. It is NSF/ANSI 61 approved.
Full Product Details
• Size: 33.5 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 28" (H) x 21 "(D)
• Inlet Connection: 1.25"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• ANSI / NSF Standard 61 Approved
• Actual Weight: 55 lbs
• Dimension Shipping Weight: 80

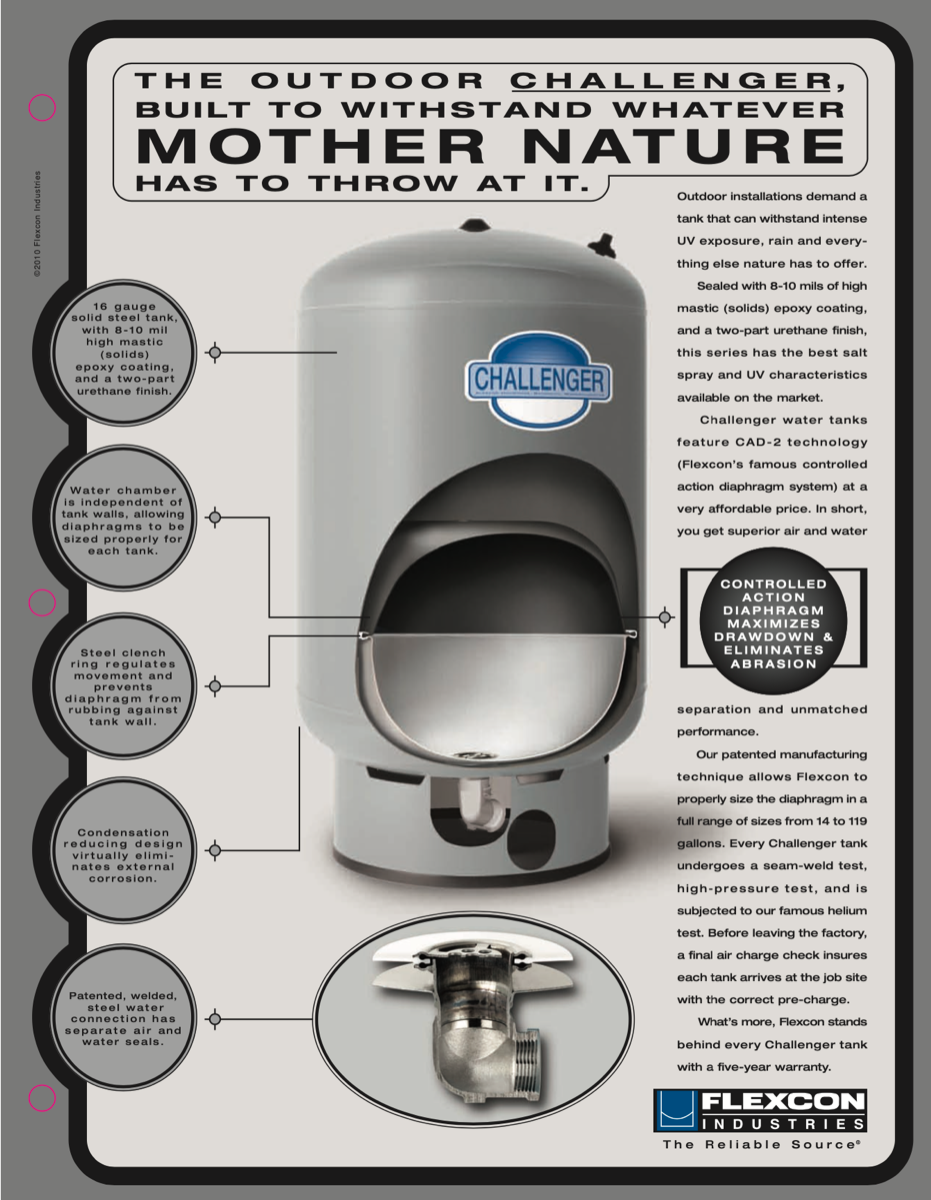

Challenger Series
Standard Features: Tank: 16 gauge cold rolled steel Finish: Almond appliance grade paint for both indoor and outdoor installation Water Chambers: Top chamber is blended butyl rubber, lower water chamber is copolymer polypropylene. Connection: Welded steel NPT thread Air valve: Brass valve with O-ring seal
Specifications:
• Size: 33.5 Gallon Diaphragm Well Water Pressure Tank
• Dimensions: 28" (H) x 21"(D)
• Inlet Connection: 1.25"
• Pressure Rating: 125 psi
• Maximum working temperature: 140°F
• Color: Almond
• ANSI / NSF Standard 61 Approved
• Actual Weight: 55 lbs
• Dimension Shipping Weight: 80
